7 Inch 1280x800 Landscape WXGA TFT LCD Module MIPI - VXT700BYE-03

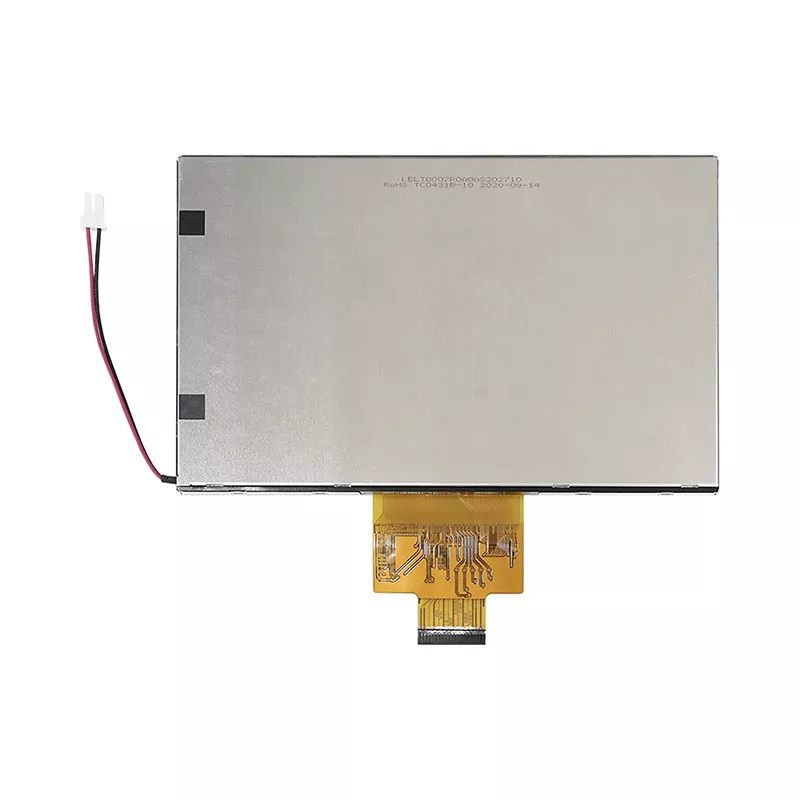

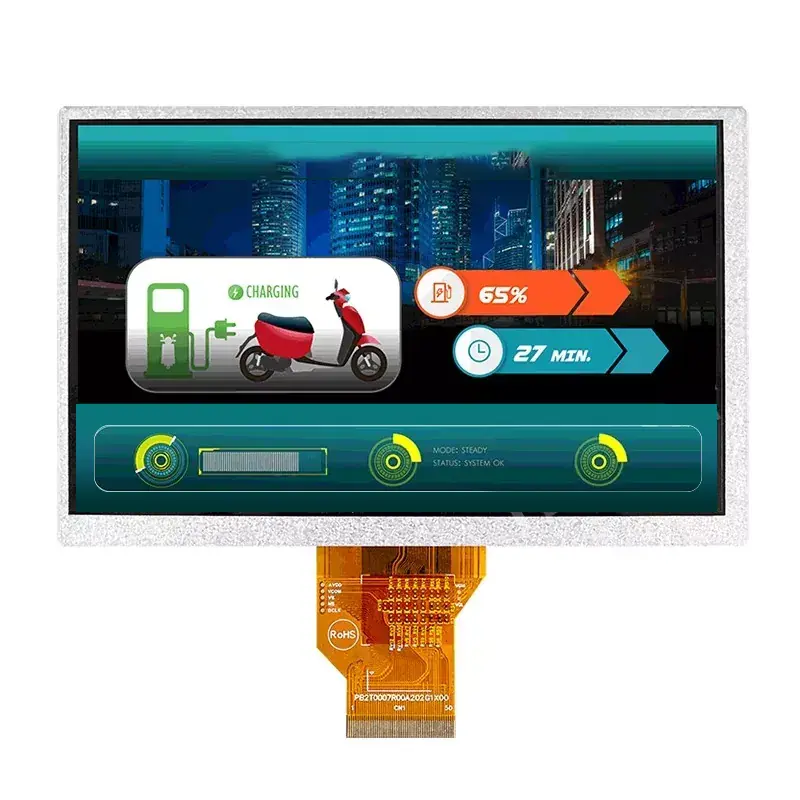

This Victronix 7 inch 800x1280 MIPI IPS TFT Module is a high-resolution 7-inch TFT LCD module engineered for demanding environments. Featuring an 800×(RGB) ×1280 pixel resolution and a crisp 150.72 × 94.2 mm active area, this display delivers exceptional visual clarity with a pixel density of 0.11775 mm. As a professional TFT module manufacturer and supplier in China, this Victronix 7 inch TFT Module is strictly compliant with the ROHS environmental standards to provide superior application performance. We offer a customized service to meet the needs of our customers.

Model:VXT700BYE-03

Send Inquiry PDF DownLoad

Product Description

Where It Gets Used

Industrial HMI panels in landscape enclosures — 16:10 suits controls laid out side by side.
Portable test and measurement instruments — vibration and 60 G shock are specified, which is what portable equipment needs.
Handheld terminals and handheld scanners — landscape content, square pixels, anti-glare surface.
Medical instruments and bedside monitors — every optical parameter carries a minimum, which is what a regulated build needs.
Kiosks and self-service terminals — anti-glare polarizer under interior lighting.
Vehicle and marine consoles in the cabin — vibration tested, −20 to +70 °C.
Control room and process displays — 1,024,000 pixels in landscape carries a dense dashboard.

Specification

Item	Value
Model	VXT700BYE-03, version V01
LCD type	TFT, transmissive
Active area	150.72 × 94.2 mm — wider than tall
Shape	1280 wide × 800 high — landscape 16:10
Dot count as written	800 × 1280 — rows first, per the block diagram

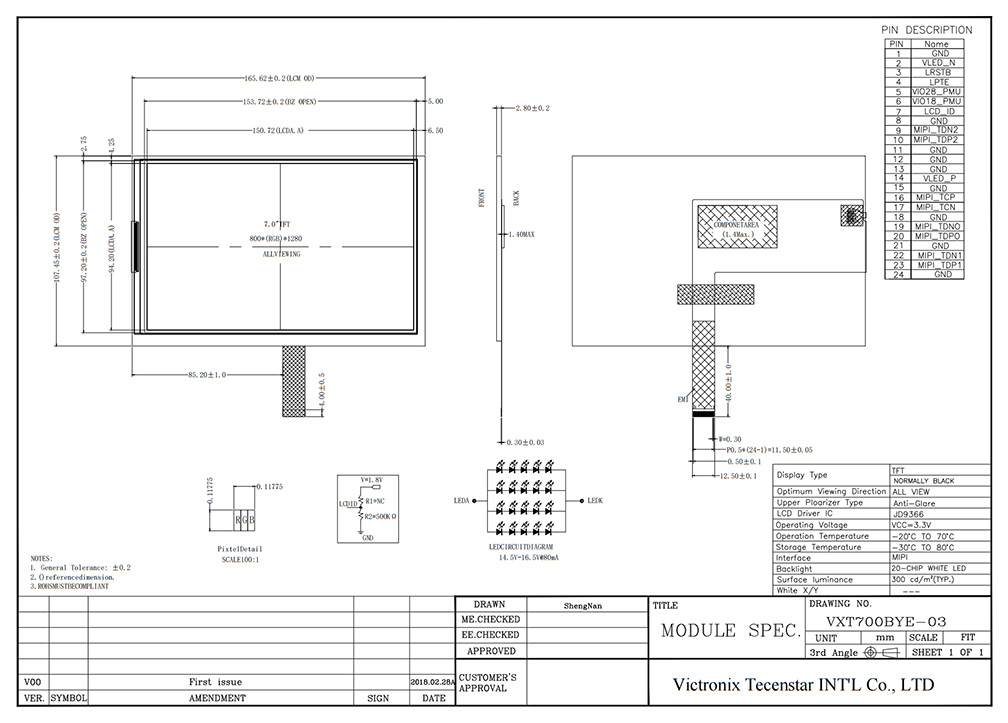

Module size	170 × 115 × 4.75 mm — drawing shows 165.62 × 107.45
Diagonal	177.74 mm — 6.998 inch
Aspect ratio	16:10 — 150.72 ÷ 94.2 = 1.60000
Pixel pitch	0.11775 × 0.11775 mm — square
Driver IC	JD9366, COG
Interface	MIPI DSI — 3 data lanes + 1 clock pair
Connector	24 pins, 0.5 mm pitch, FPC 11.50 ± 0.05 mm wide
Luminance	200 min / 250 typ / 350 max cd/m²
Contrast ratio	700 min / 850 typ at θ = 0°
Response time	30 typ / 35 max ms at 25 °C
Uniformity	70 min / 75 typ %
Viewing angle	80 min / 85 typ °, all four directions, CR ≥ 10
Viewing direction	ALL — orientation not constrained
Colour coordinates	White X 0.275/0.315/0.355, Y 0.325/0.365/0.405 — RGB primaries blank
Top polarizer	Anti-glare
Backlight	20 white LEDs, 5S4P — derived
Backlight voltage	14.5 / 16 / 16.5 V at 80 mA
Backlight power	1.28 W — 16 V × 0.080 A
Backlight life	30,000 h min / 50,000 typ to 50% at 25 °C
Operating temperature	−20 to +70 °C
Storage temperature	−30 to +80 °C — wider than operating at both ends
Recommended storage	25 ± 10 °C, 50 ± 10% RH, no sunlight or fluorescent light, no load
Reliability	10 tests at 240 h — ESD ±8 kV air / ±4 kV contact, vibration 6 h, shock 60 G, 20 thermal shock cycles
MTBF	50,000 hours under ordinary conditions
Compliance	RoHS
