7 inch IPS Wide Temperature TFT Module
  • 7 inch IPS Wide Temperature TFT Module7 inch IPS Wide Temperature TFT Module

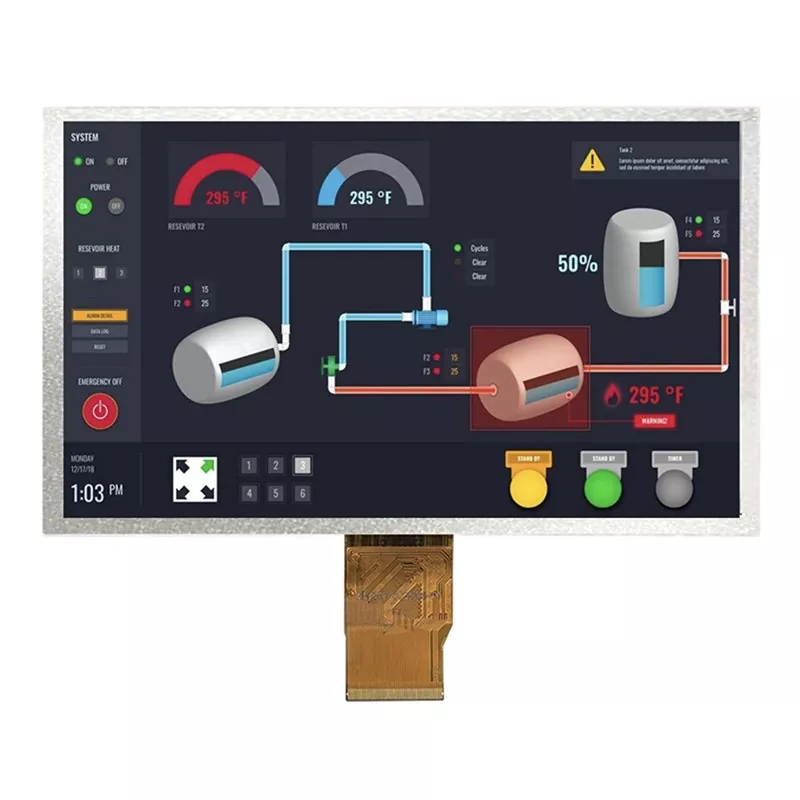

7 inch IPS Wide Temperature TFT Module

Victronix is a professional TFT module manufacturer and supplier based in China. With 18 years of experience in this field, we have developed a variety of models. In addition to our standard products, we also offer customized services to meet our customers' specific needs. This Victronix 7 inch IPS Wide Temperature TFT Module is a robust 7.0-inch TFT-LCD module engineered for demanding industrial environments. Featuring an IPS panel with 800×(RGB)×480 resolution and 16.7 million colors, this module delivers reliable performance across extreme temperature ranges.

Model:VXT700WHA-04

Send Inquiry    PDF DownLoad

Product Description

In the age of intelligence, the TFT module enables us to present the required data visually. The quality of the TFT module has a critical impact on its application. What are the advantages of the Victronix 7 inch IPS Wide Temperature TFT Module? At first, its 1000 cd/m² brightness, 1400:1 contrast ratio, an 80-degree viewing angle in all directions, and 80% uniformity ensure vivid imagery. Secondly, it supports an LVDS interface and a 9×3-LEDs white backlight with a lifetime of 50,000 hours, ensuring its long-term usability in various industrial applications. Besides, it complies with RoHS standards and successfully passes rigorous reliability tests, including thermal shock, humidity, and ESD protection up to 8kV air and 4kV contact. This product operates efficiently in extreme temperatures ranging from -30°C to +85°C and can withstand severe storage conditions from -40°C to +90°C.

This 7 inch TFT module from Victronix is designed for Industrial HMIs, automotive displays, outdoor equipment, medical devices, and ruggedized portable instruments.



Specification

VXT700WHA-04 is a TFT-LCD module.It is composed of a TFT-LCD panel,driver IC,FPC, 7.0''dis   play area contains 800X(RGB)x480 pixels and can display up to 16.7M colors.This product accords with ROHS environmental criterion.


ltem Contents Unit Note
LCD Type TFT
Display color 16.7M
Viewing Direction ALL O'Clock
Display Mode Transmissive,Normally Black
Operating temperature -30~+85
Storage temperature -40~+90
Module size Refer to outline drawing mm
Active Area(W×H) 152.42X91.47 mm
Number of Dots 800×480 dots
TFT Driver IC HX5281
Power Supply Voltage 3.3  V
Backlight 9*3-LEDs (white) pcS
Weight - g
Interface LVDS
