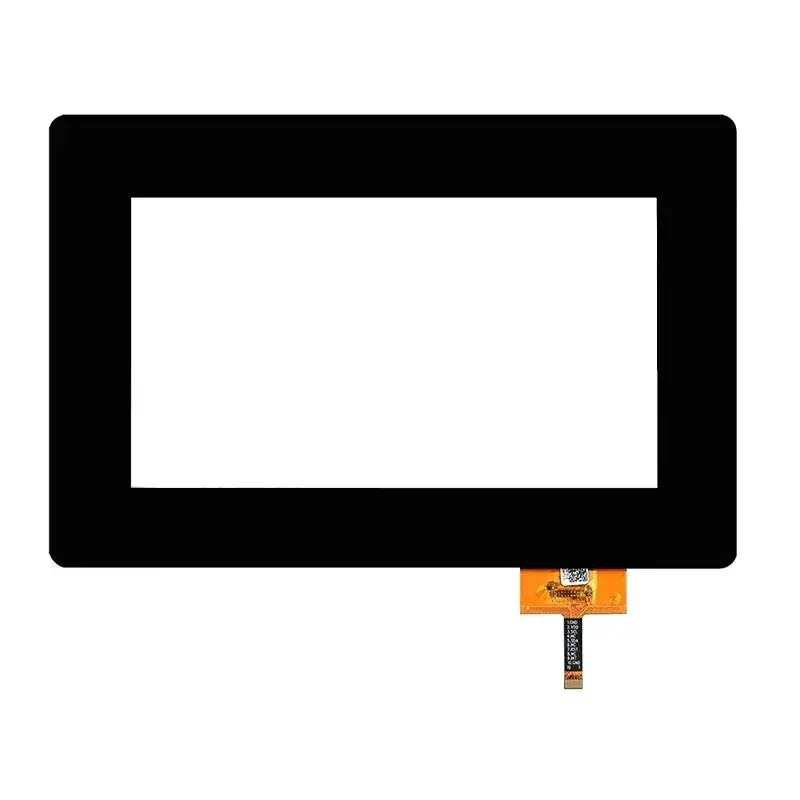

7 Inch G+G Capacitive Touch Panel with Mounting Holes and Mirror Finish - CTP-T700GF-18
  • 7 Inch G+G Capacitive Touch Panel with Mounting Holes and Mirror Finish - CTP-T700GF-187 Inch G+G Capacitive Touch Panel with Mounting Holes and Mirror Finish - CTP-T700GF-18

7 Inch G+G Capacitive Touch Panel with Mounting Holes and Mirror Finish - CTP-T700GF-18

The Mirror BorderThe border print on the rear of the cover glass is specified as Pantone 877C with a mirror effect. Functionally it does two jobs.It hides what is behind the glass — the sensor edge, the adhesive line, the display's own bezel — so the visible border is a clean, uniform metallic s......

Model:CTP-T700GF-18

Send Inquiry

Product Description


The Mirror Border

The border print on the rear of the cover glass is specified as Pantone 877C with a mirror effect. Functionally it does two jobs.


It hides what is behind the glass — the sensor edge, the adhesive line, the display's own bezel — so the visible border is a clean, uniform metallic surface rather than a view into the stack. And it gives the product a deliberate appearance when the screen is off: instead of a black rectangle, you get a mirror finish, which is why this treatment is common on consumer equipment, bathroom and kitchen panels, hotel-room controls, and anything where the device is visible in a room and should not look like a switched-off monitor.


Because the print is on the rear of the cover glass, it is protected by the glass itself — it cannot be scratched off by cleaning or contact, which is the usual failure mode for a border printed on the front surface.


If you do not want a mirror finish, the border colour and treatment can be changed; it is a printing specification, not a fixed property of the glass.

What this drawing does show, which most do not, is a set of manufacturing details that say something about how the panel is put together:



  • UV glue around the chip pins — strain relief on the controller's solder joints, which is where flexed assemblies usually fail.
  • Grounding layers on both sides of the FPC — shielding on the tail, which carries I2C and the interrupt out of a noisy enclosure.
  • Protective circuits on the input signal lines — ESD protection at the signals that reach the outside world.
  • ITO pattern on both sides must not be visible under front brightness — a cosmetic requirement on the sensor, checked rather than hoped for.
  • Protective film on both faces — the panel arrives protected and stays protected through assembly.

Individually these are small. Together they are the difference between a panel that survives five years in the field and one that generates warranty returns — and they are the kind of thing you can only see on a drawing that specifies them.

Specifications

Item

Value

Model

CTP-T700GF-18
Product Type
Capacitive touch panel
Size

7inch

Structure
G+G (cover glass + sensor glass + FPCA)
Lens View Area
155.21 × 86.92 mm — aspect 1.786, close to 16:9
Resolution
1024 × 600 dots
Cover Glass
3.0 ±0.2 mm
OCA
0.18 mm
Sensor Glass
0.7 mm
Gasket
0.6 mm compressible
Adhesive
3M 467MP + RSF05045-50P04 + 3M 467MP
Mounting Holes
2 × Ø4.00 mm through holes
Border Print
Pantone 877C, mirror effect, rear of cover glass
Drive IC
FT5426DQ8 (SMT)

Firmware

MI0700EMP-C-FC V04 (20171019)
Interface
I2C
Touch Points
5
Surface Hardness

7H

Transmittance
≥85%
Operating Voltage
-20°C to +70°C
Storage Temperature
-30°C to +80°C

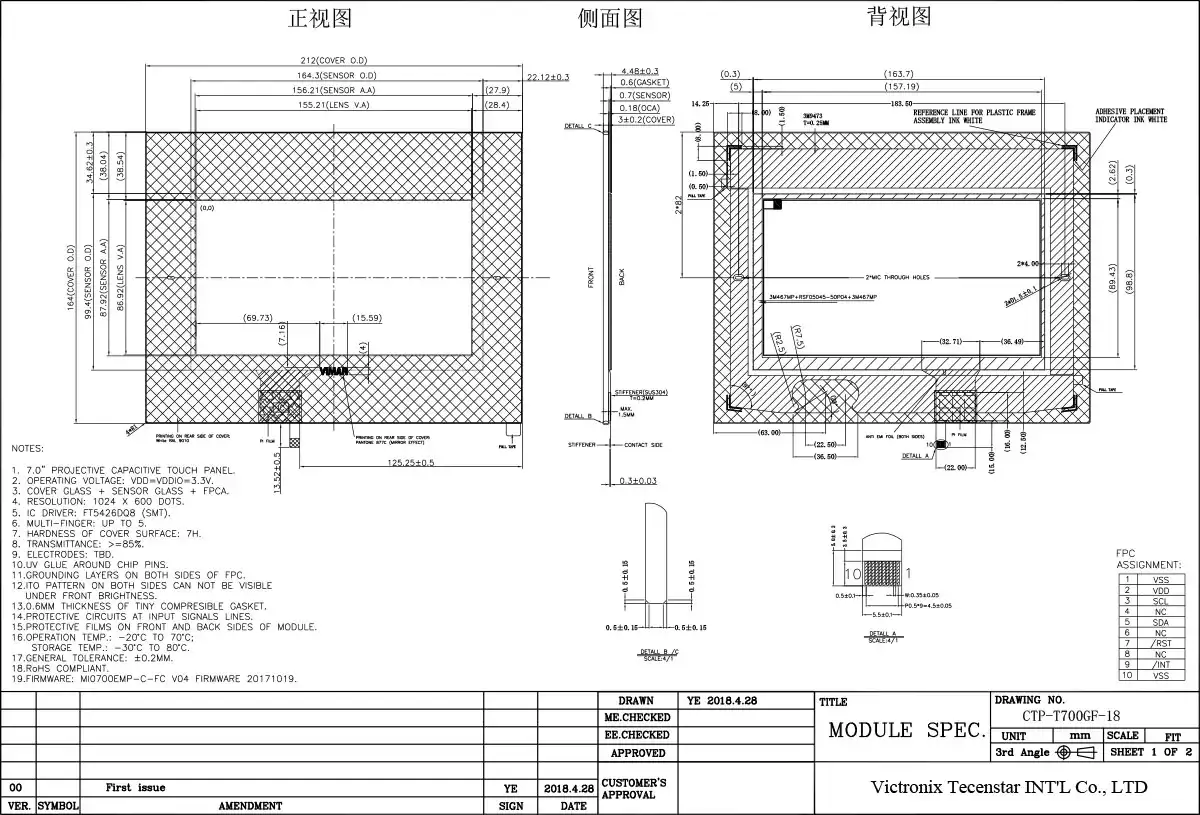

Outline Drawing
