9.0 Inch 1024x600 TFT LCD Module LVDS - VXT900AEA-02
  • 9.0 Inch 1024x600 TFT LCD Module LVDS - VXT900AEA-029.0 Inch 1024x600 TFT LCD Module LVDS - VXT900AEA-02

9.0 Inch 1024x600 TFT LCD Module LVDS - VXT900AEA-02

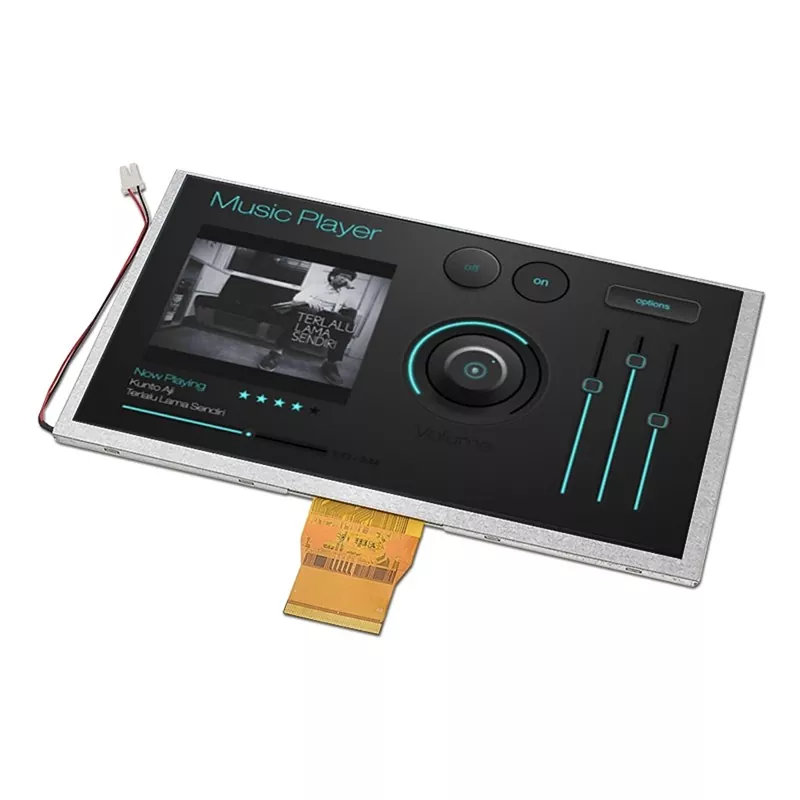

Victronix 9 inch 1024×600 IPS TFT Module offers a typical brightness of 500 cd/m², wide viewing angles of 85° in all directions, and a contrast ratio of 800:1, ensuring excellent readability from various angles. Secondly, it supports a LVDS interface with 6-bit/8-bit mode selection (SELB pin control). Besides, it features a 3S13P white LED system with a lifespan of 20,000 to 50,000 hours at half brightness, ensuring long-term use in various industrial applications. In addition, it is validated through thermal shock (-30°C↔80°C), vibration (10-55Hz), mechanical shock (100G), and ESD protection (±2kV HBM) to operate reliably in extreme temperatures (-20°C to +70°C). This Victronix 9 inch LCD is perfect for Industrial Control, Automobile Device, Medical Equipment, Smart Home, Marine Electronics, Fitness Equipment, POS Terminal, ATM Machine, Vending Machine, etc.

Model:VXT900AEA-02

Send Inquiry    PDF DownLoad

Product Description
Item Value
Model VXT900AEA-02
LCD type TFT
Module size 211.10 × 126.50 × 5.60 mm — "Without FPC and Solder"
Active area 196.608 × 114.150 mm — 224.43 cm²
Diagonal 227.3431 mm = 8.9505 inch (derived) — 0.55% under the nominal 9.0
Resolution 1024 × 600, landscape — WSVGA
Pixel pitch 0.192000 × 0.190250 mm — NOT square (derived)
Density 132.6 PPI (derived) — the lowest in this range
Display colours 16.7M — stated
Driver IC EK79001HL and EK73215BCGA
Interface LVDS — 1 clock pair + 4 data pairs
Colour depth select SELB on pin 25 — L = 8-bit, H = 6-bit
Scan direction U/D on pin 6, L/R on pin 7 — hardware-selectable
Connector 40-pin
Supply DVDD 3.0/3.3/3.6 V; AVDD 12.4/12.5/12.6 V; VGH 22/23/24 V; VGL −19/−10/−11 V; VCOM 5.6/5.8/6.0 V
Brightness 500 cd/m² typ — no minimum, no maximum
Contrast ratio 640 min / 800 typ — no maximum
Response time 30 typ / 40 max ms — one row, both directions combined, no floor
Uniformity 75% min / 80% typ
Viewing angle 85° typ in all four directions at Cr ≥ 10 — no minimum
Viewing direction ALL (Unit cell reads "O'Clock")
Colour gamut about 50% NTSC by derivation
Backlight 39 white LEDs — 3 series, 13 parallel
Backlight voltage 8.1 / 9.0 / 9.9 V at 260 mA — 3.00 V per LED
Backlight current 260 mA — 20 mA per string; no absolute maximum published
Backlight power 2.106 / 2.340 / 2.574 W — stated
Backlight uniformity 75% min / 80% typ
Backlight life 20,000 h min
Operating temperature −20 to +70 °C
Storage temperature −30 to +80 °C
Humidity 85% RH max at ≤ 40 °C; absolute humidity below the 85% RH at 40 °C value above it

Where It Gets Used

  • Industrial HMI and machine control panels — 1024 × 600 is the working resolution of a great deal of factory equipment.
  • Marine instrument consoles and chart displays — a wide format at 500 cd/m², with a free viewing direction.
  • Medical devices and mobile carts — 16.7M colours and a large, readable pixel at arm's length.
  • Test and measurement equipment — room for a trace, a readout and a status bar at once.
  • Point-of-sale and self-service terminals — a wide landscape layout for a transaction or a menu.
  • Kiosk, vending and ticketing terminals — indoor, at 500 cd/m².
  • Access control, intercom and building panels — a wide interface in a wall-mounted cut-out.
  • Vehicle dashboards and agricultural or construction equipment consoles — 100 G shock and six hours of bare-module vibration.
  • Smart home control panels and whole-house controllers — a wall-mounted landscape panel at any height, because the viewing direction is free.
  • Single-board computer and SoC projects — LVDS out of an application processor, with the frame in external RAM.

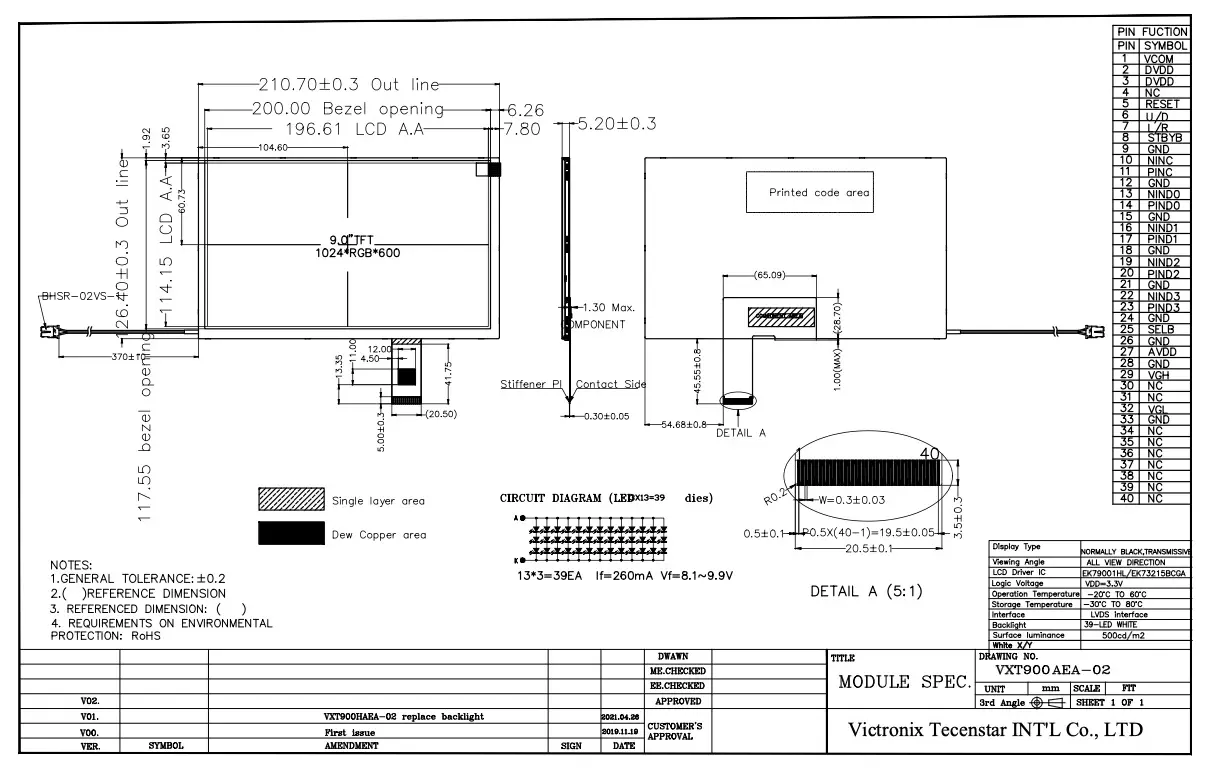

Outline Drawing
