6.86 Inch Bar-Type TFT LCD Display
The VXT686BZSA-01 is a 6.86-inch bar-type TFT LCD for elongated display layouts. With 16.7 million colors and wide viewing angles, the module provides space for status indicators, menu items and operating information in compact equipment panels.
Model:VXT686BZSA-01
Send Inquiry PDF DownLoad
Product Description
This 6.86-inch TFT display is widely used in industrial HMI, portable medical devices, test and measurement equipment, transportation systems, point-of-sale (POS) terminals, and advanced consumer electronics.
LCD Parameter
|
|
Display Size |
3.97 inch |
|
|
Display Type |
Transflective TFT LCD |
|
|
Display Mode |
Normally Black |
|
|
Resolution |
480 × 800 pixels |
|
|
Active Area |
51.84 × 86.40 mm |
|
|
Module Dimensions |
57.14 × 96.85 × 2.00 mm |
|
|
Pixel Pitch |
0.108 × 0.108 mm |
|
|
Interface |
18-bit RGB + SPI |
|
|
Driver IC |
ST7701SN-G5 |
|
|
Viewing Direction |
All O’clock |
|
|
Viewing Angle |
85° typical in each direction (CR ≥ 10) |
|
|
Surface Treatment |
Glare |
|
|
Brightness |
130 cd/m² typical |
|
|
Luminance Uniformity |
80% minimum |
|
|
Touch Panel |
Not included |
|
|
Connection |
45-pin FPC, 0.30 mm pitch |
|
|
LCD Supply Voltage (VDD) |
2.8 V typical |
|
|
Backlight |
8 white LEDs |
|
|
Backlight Voltage |
12.8 V typical |
|
|
Backlight Current |
40 mA typical |
|
|
Backlight Power |
0.512 W typical |
|
|
Operating Temperature |
-20°C to +70°C |
|
|
Storage Temperature |
-30°C to +80°C |
Note 2: Without FPC and Solder.

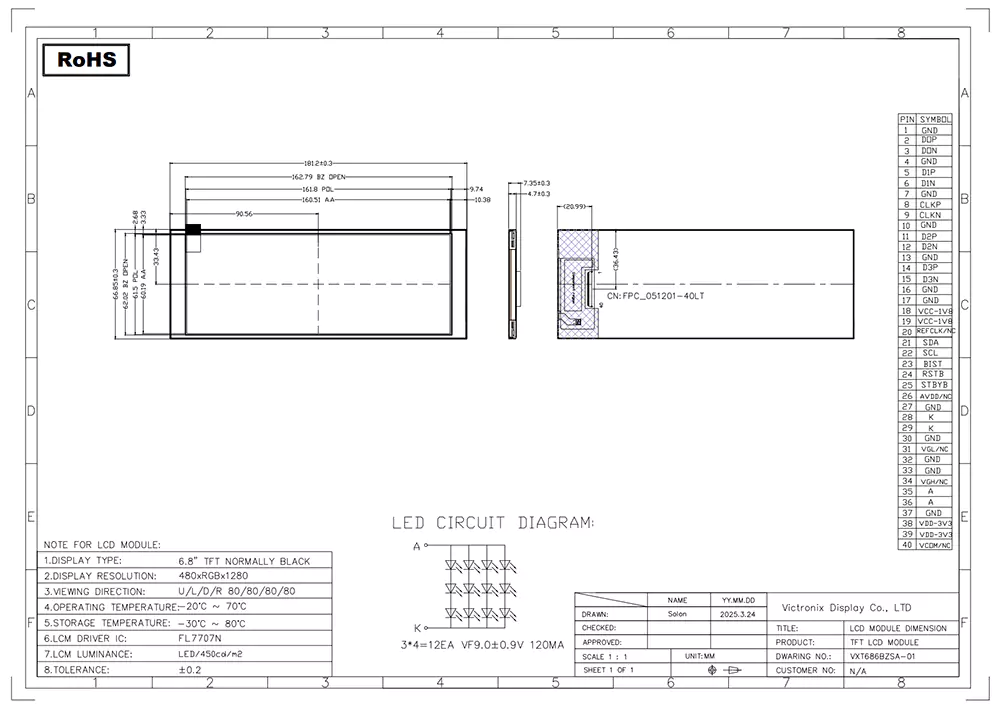

Outline Drawing
