2.9 Inch Bar TFT Module

VXT297BZS-01 is one of standard bar type TFT Modules from China LCD and Touch screen manufacturer Victronix.The VXT297BZS-01 2.9 Inch Bar TFT Module is commonly used in server systems, audio systems, advertising displays, or any equipment that requires a high quality bar display.

Model:VXT297BZS-01

Send Inquiry PDF DownLoad

Product Description

The VXT297BZS-01 is a 2.97 inch TFT LCD with 254x800 pixels and 16.7M colors, presenting sharp and vivid images. The 2.9 Inch Bar TFT Module features 3 WIRE SPI+18BIT RGB interface and is controlled by an ST7701S IC. It has good optical properties (contrast ratio 1000 - 1500, etc.), electrical characteristics, and mechanical specs. The back - light system has 4 chips LED. It has passed reliability tests and suits various applications within -20~+70°C (operating) and -30~+80°C (storage).

Our bar type TFT solution can be perfectly used in many applications like industrial, automotive, medical, home appliance and maritime, etc.

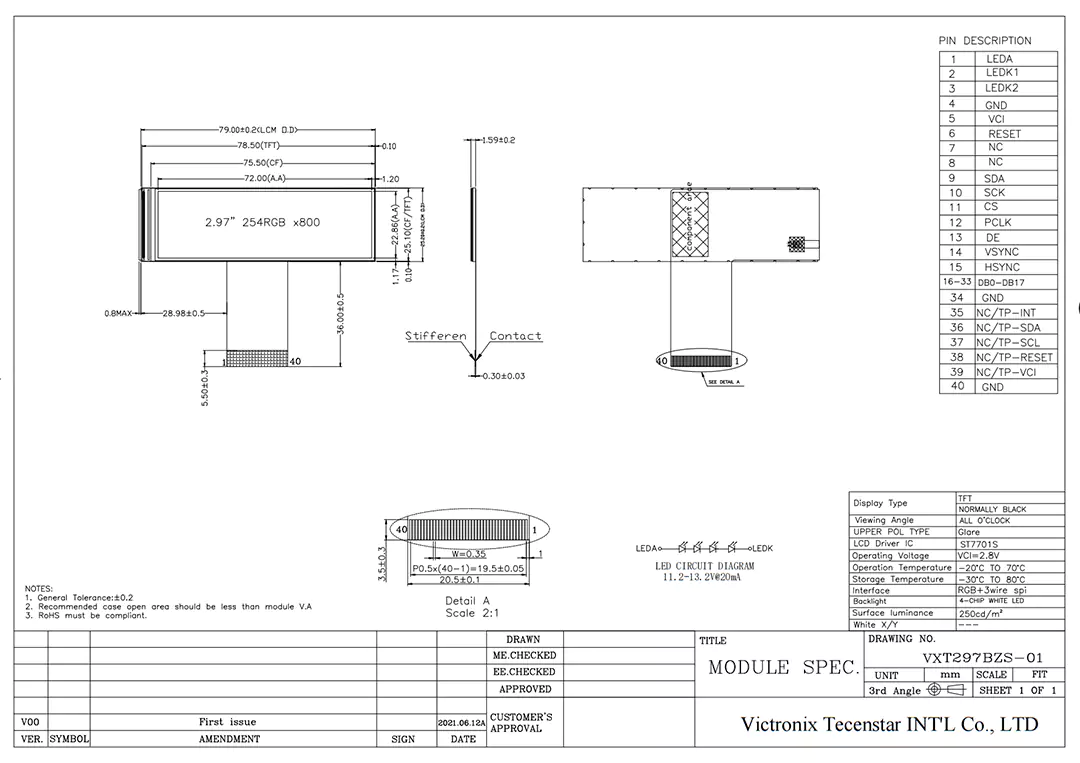

General Specification

Item	Contents	Unit
LCD TYPE	TFT/TRANSMISSIVE
MODULE SIZE(WHT)	25.2079.001.59	MM
ACTIVE SIZE(W*H)	22.86*72.00	MM
PIXEL PITCH(W*H)	0.09*0.09	MM
NUMBER OF DOTS	254*800
DIVER IC	ST7701S
INTERFACE TYPE	3 WIRE SPI+18BIT RGB
TOP POLARIZER TYPE	Glare
RECOMMEND VIEWING DIRECTION	ALL	O'CLOCK
GRAY SCALE INVERSION DIRECTION	-	O'CLOCK
BACKLIGHT TYPE	4-DIES WHITE LED
TOUCH PANEL TYPE	Without
