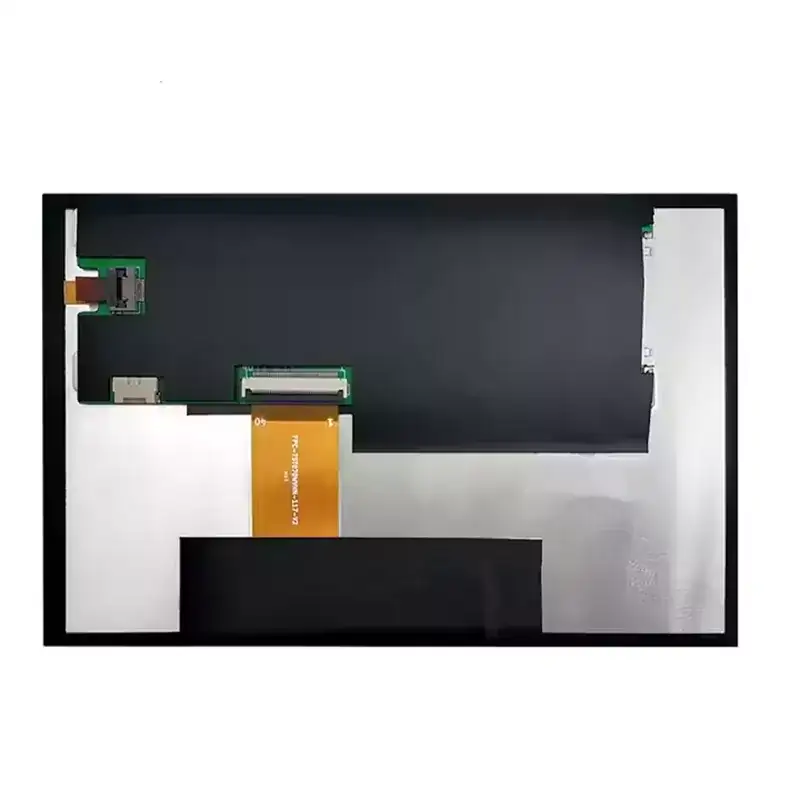

7 inch 800x480 IPS TFT LCD Module

The Victronix VXT700WRA-01 is a 7.0-inch TFT LCD module with 800 x 480 pixel resolution and support for up to 16.7M colors, built for embedded and industrial equipment that needs a compact, easy-to-drive display. Its 24-bit parallel RGB interface with DE (data enable) and DCLK lets most mainstream MCUs and MPUs — STM32, NXP i.MX, Allwinner, Rockchip and similar — drive the panel directly from their on-chip LCD controller, with no LVDS serializer or bridge chip and no extra BOM cost. The module runs from a single 3.3 V logic supply, uses an RM53052 / RM57452 driver IC, and is rated for a -20°C to +70°C operating range, so it works in unheated enclosures and outdoor cabinets.

Model:VXT700WRA-01

Send Inquiry PDF DownLoad

Product Description

Typical Applications

Industrial HMI and machine control panels — PLC terminals, CNC operator interfaces, process controllers, test and measurement instruments.
Portable and handheld equipment — field analyzers, diagnostic tools, battery-powered meters (the ~1.4 W backlight helps battery life).
Medical devices — patient monitors, infusion pumps, portable diagnostic equipment, therapy devices.
Smart home and building control — wall-mounted control panels, intercom and access-control displays, thermostat and HVAC interfaces.
POS and self-service terminals — compact cashier displays, ordering kiosks, queue and ticketing units.
Elevator and access control panels — floor indicators, lift car displays, doorphone and security panels.
Vehicle and agricultural equipment — instrument clusters, tractor and harvester cab terminals, forklift and logistics displays (wide temperature range applies).
Embedded development and maker projects — a natural match for STM32 and similar MCUs with a built-in RGB LCD controller.

General Specifications

Item	Contents	Unit	Note
Model	VXT700WRA-01
LCD Type	TFT	-
Screen Size	7.0 inch
Display color	16.7M		1
Viewing Direction	ALL	O’Clock
Operating temperature	-20~+70	℃
Storage temperature	-30~+80	℃
Active Area(W×H)	152.40X91.44	mm
Number of Dots	800*480	dots
Driver IC	RM53052/RM57452	-
Power Supply Voltage	3.3	V
Outline Dimensions	Refer to outline drawing	mm	2
Backlight	3S8P-LEDs (white)	pcs
Backlight Voltage (Vf)	9 V (typ.), 8.4 V (min.), 9.9 V (max.) @ If = 160 mA
Backlight Current	160 mA
Backlight Power	approx. 1.44 W
Backlight Uniformity	75% (min.)
Interface	RGB (parallel), 60-pin	-
Data Bus	R5–R0, G5–G0, B5–B0, with DE and DCLK
Pixel Clock (DCLK)	33.3 MHz (typ.), 20 MHz (min.), 42.8 MHz (max.)

Note 1: Color tune is slightly changed by temperature and driving voltage.

Note 2: Without FPC and Solder.

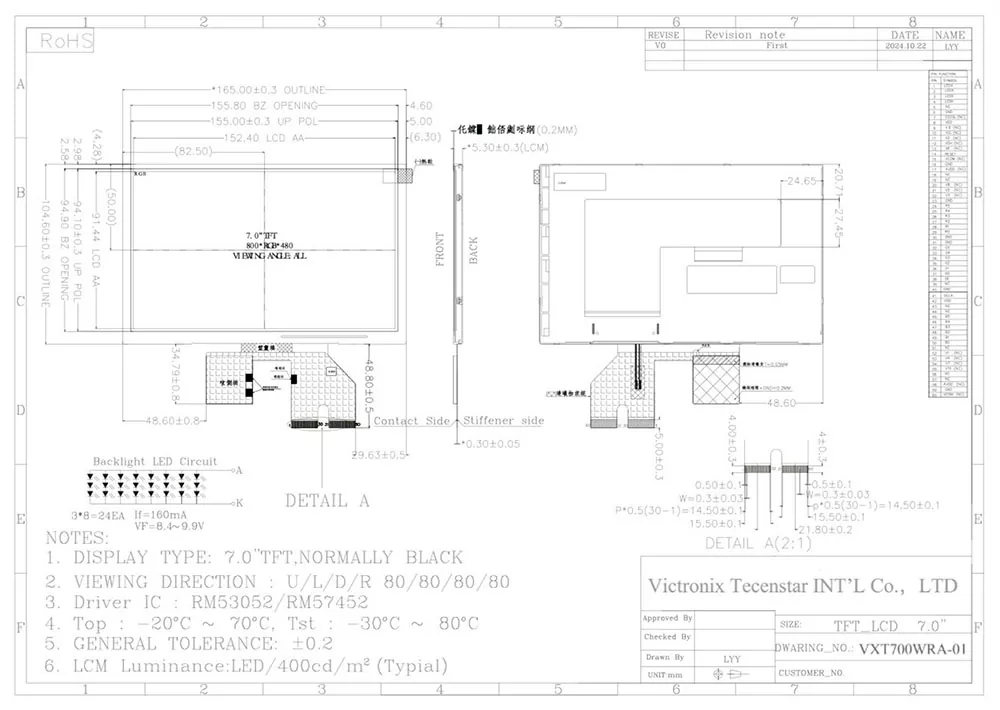

Outline Drawing
