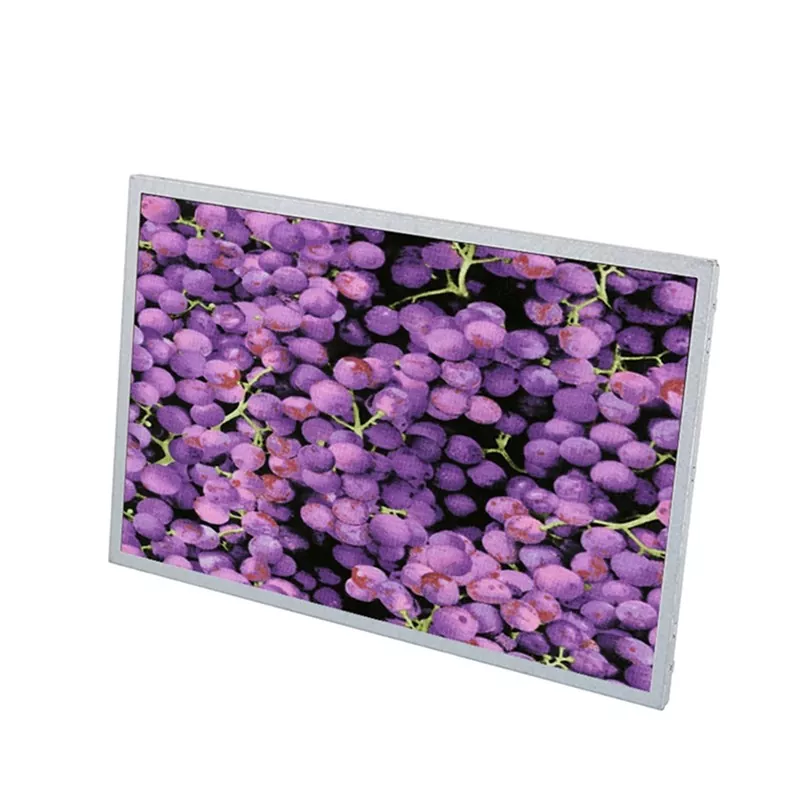

12.1" 1280x800 Sunlight Readable IPS TFT LCD Module

The Victronix VXT121BIHA-01 is a 12.1-inch WXGA (1280 x RGB x 800) IPS TFT LCD module designed for equipment that must stay readable in bright ambient light and keep running in harsh environments. Its IPS cell delivers stable color and contrast from every viewing direction with no grayscale inversion, while the 800 cd/m² high-brightness backlight keeps the screen legible under indirect and direct sunlight. The module fits industrial HMI panels, outdoor kiosks, EV charging piles, marine instruments, medical devices and agricultural machinery. Touch panels, cover glass, optical bonding and interface converter boards are available on request.

Model:VXT121QIHA-01

Send Inquiry PDF DownLoad

Product Description

Why Source This Module from Victronix

Victronix is a TFT module manufacturer supplying standard and customized display solutions worldwide. Working directly with the factory means engineering support during bring-up, consistent backlight binning for color and brightness uniformity across production lots, flexible MOQ for pilot runs, and long-term supply commitments for products with extended lifecycles. Send us your resolution, brightness, interface, touch and mechanical requirements and we will match or tailor a module to fit.

General Specifications

Item	Contents	Unit	Note
Model	VXT121BIHA-01
Screen_size	12.1inch
Aspect ratio	16:10
LCD Type	IPS TFT	-
Display color	16.7M
Viewing Direction	ALL	O'Clock
Grayscale inversion direction	-	O'Clock
Operating temperature	-20~+70	℃
Storage temperature	-20~+70	℃
Module size	12.1	inch
Active Area(W×H)	261.12(H)x163.20(V)	mm
Number of Dots	1280x 800	dots
Power Supply Voltage	3.3	V
Outline Dimensions	278.00x184.00x7.10(10.00Max)	mm
Backlight	11x4-LEDs(white)	pcs
Brightness	800 cd/m²
Interface	6/8 BIT LVDS	-
Operating temperature	-20°C to +70°C
Storage temperature	-30°C to +80°C

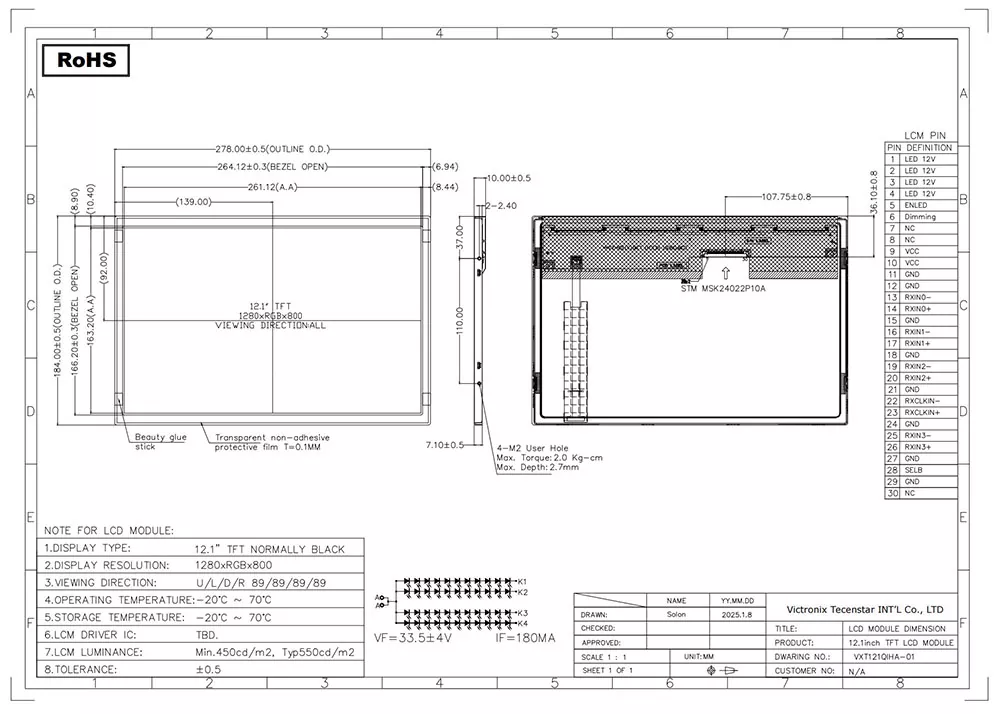

Outline Drawing
