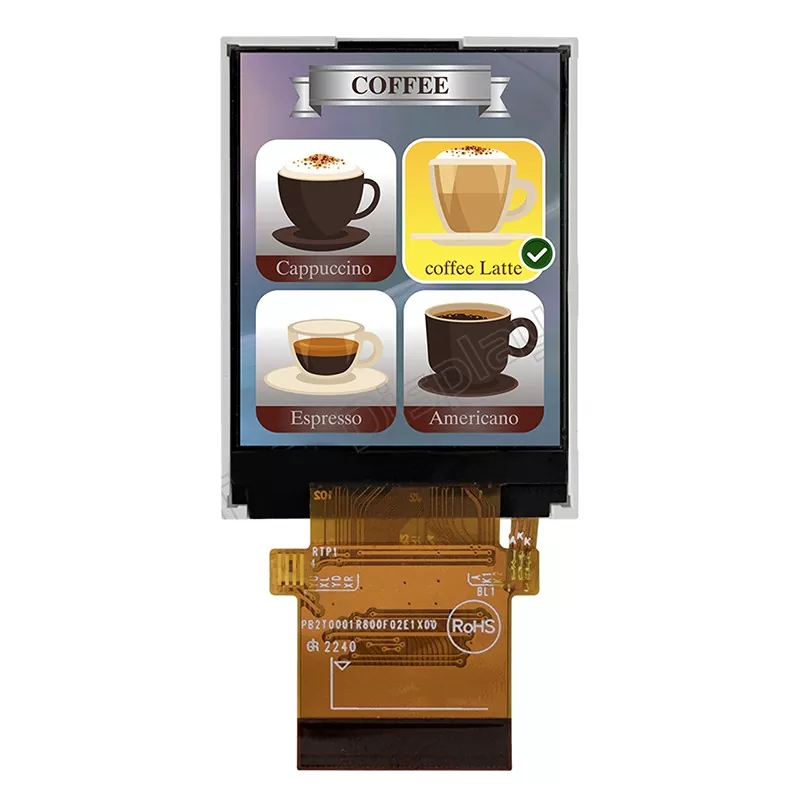

1.77 Inch 128x160 TFT LCD Module 8-Bit MCU Interface 1000 cd/m2 - VXT177ZHS-13

This Victronix 1.77 inch 128*160 Outdoor TFT Module is a high-performance TFT LCD module designed for demanding outdoor and industrial applications. Featuring a 1.77 inch diagonal screen with a sharp 128 (RGB) × 160 resolution, this module delivers vibrant 65K-color visuals and exceptional readability in diverse lighting conditions. As a professional manufacturer and supplier of TFT modules in China, Victronix 1.77 inch TFT Module is fully compliant with ROHS environmental standards, ensuring superior application performance. We offer a customized service to meet the needs of our customers.

Model:VXT177ZHS-13

Send Inquiry PDF DownLoad

Rating: 5.0

(Rating Count: 1)

Product Description

Item	Value

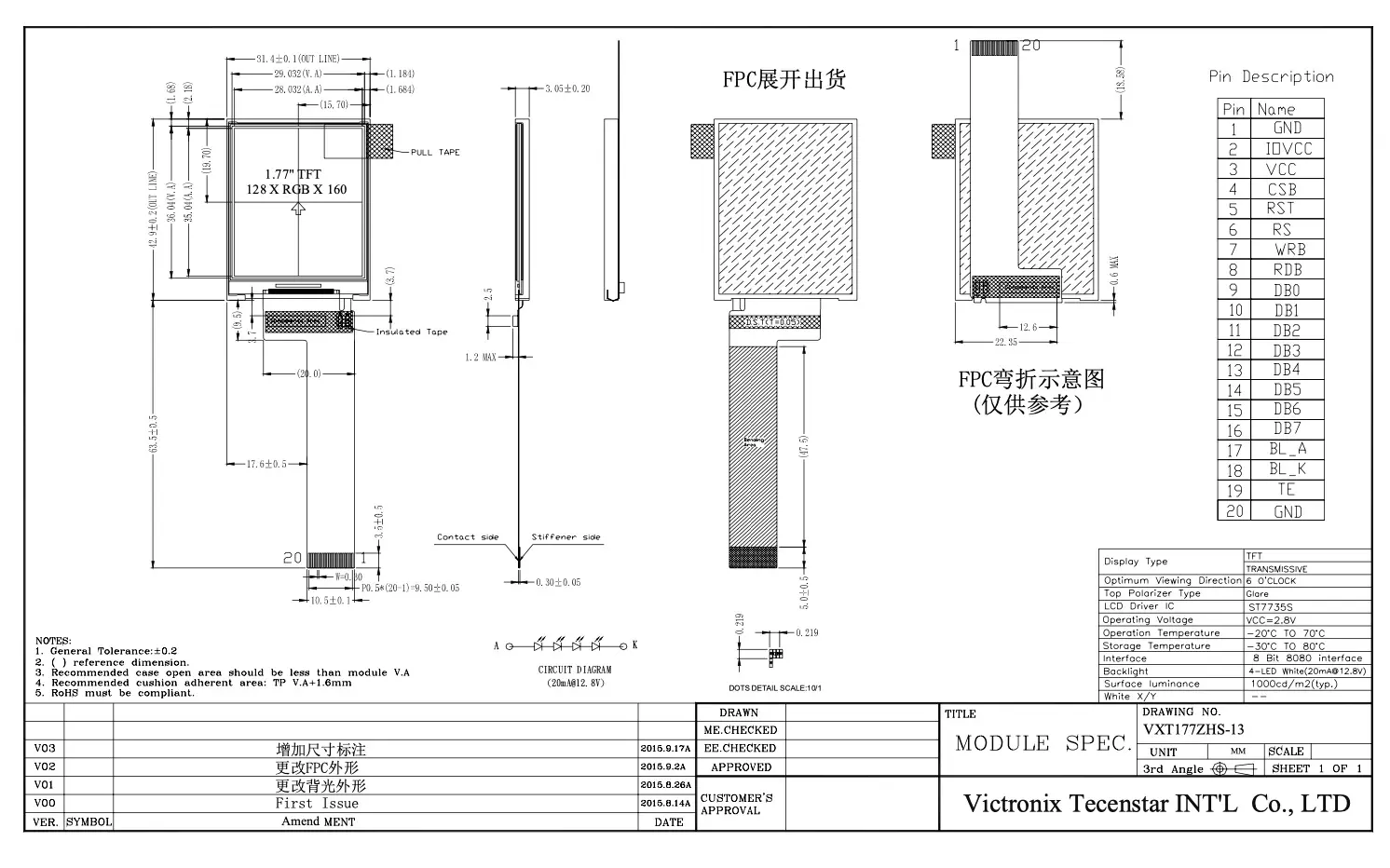

Model	VXT177ZHS-13, VER.01
LCD type	TFT / Transmissive
Controller	ST7735S
Colours	65K — 16-bit RGB565
Viewing direction	6 o'clock
Grey scale inversion	12 o'clock
Operating temperature	−20 to +70 °C
Storage temperature	−30 to +80 °C — properly wider
Module size	31.4 × 42.9 × 3.05 mm
Active area	28.032 × 35.04 mm — 9.82 cm² — portrait
Pixel pitch	0.219 × 0.219 mm — exactly square
Resolution	128 × 160 — native portrait
Interface	8-bit MCU parallel (8080) — DB0–DB7
Supply	VCC 2.5 / 2.75 / 4.8 V; IOVCC 1.65 / 1.8 / 3.7 V
Absolute max	VCC −0.3 to 4.8 V; IOVCC −0.3 to 4.6 V; ILED 30 mA
Input thresholds	VIL 0 to 0.3 IOVCC; VIH 0.7 IOVCC to IOVCC — 0.54/1.26 V at 1.8 V
Brightness	1000 cd/m² typical — no floor, no ceiling
Contrast	500 typical
Response	TON + TOFF 30 ms typical — one row
Viewing angle	90° horizontal, 60° vertical — asymmetric
Backlight	4 LEDs — 4S1P, 3.2 V per LED, 20 mA
Backlight voltage	11.2 / 12.8 / 13.6 V
Backlight current	20 mA typical
Backlight power	0.256 W — stated, matches exactly — lowest tier
Backlight life	30,000 h minimum

Where It Gets Used

Handheld gas and multi-gas detectors — 1000 cd/m² for outdoor reading, 0.256 W for battery life.
Body-worn cameras and law-enforcement recorders — 1.77 inches fits a wearable; high brightness for outdoor capture review.
Portable field instruments — multimeters, analysers and testers with 8-bit MCU hosts.
Handheld water quality and environmental testers.
Portable medical and monitoring devices — small, low power, direct MCU drive.
Smart home sub-panels and appliance displays — 128 × 160 is enough for status and icons.
Access control and intercom door stations — a compact portrait panel.
Industrial handheld programmers and barcode terminals.
Battery-powered equipment generally — 0.256 W of backlight and a 40 KB frame buffer is the combination this panel is for.
Any design where the MCU has run out of peripherals — eight GPIO and nothing else.
