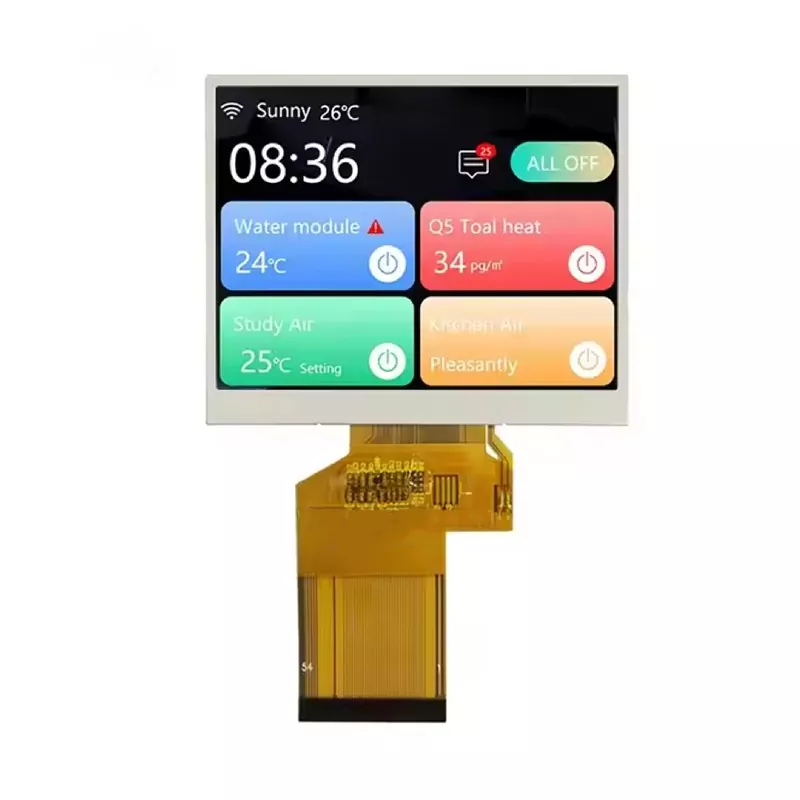

3.5 Inch 320x240 TFT LCD Module 24-Bit RGB + SPI High Brightness 85C - VXT350CQH-45-W

Victronix 3.5 inch 320x240 Sunlight Readable TFT Module different from other manufacturers? At first, its 1000 cd/m² brightness, 300:1 contrast ratio, and viewing angles of Horizontal: ±60°, Vertical: +50°/-60° ensure vivid imagery. Secondly, the device supports a 24-bit parallel RGB interface + SPI control (HX8238D driver IC). Additionally, it features a 6-die white LED backlight with a lifespan of 30,000 to 50,000 hours, ensuring reliable performance in various industrial applications. Besides, it meets RoHS standards and passes rigorous reliability tests (thermal shock, humidity, storage) to operate flawlessly in extreme temperatures (-20°C to +85°C) and withstand harsh storage conditions (-30°C to +85°C). This Victronix 3.5 inch TFT Module is suitable for Industrial HMIs, medical devices, test and measurement equipment, portable instruments, and other embedded systems requiring a bright, reliable, and compact color display solution.

Model:VXT350CQH-45-W

Send Inquiry PDF DownLoad

Rating: 5.0

(Rating Count: 1)

Product Description

General Information

Item	Value
Model	VXT350CQH-45-W, VER.02
LCD type	TFT / Transmissive
Controller	HX8238D (HIMAX, COG)
Colours	16.7M — 24-line bus, eight per channel
Viewing direction	12 o'clock
Grey scale inversion	6 o'clock
Operating temperature	−20 to +85 °C — 15° above most of this range
Storage temperature	−30 to +85 °C
Module size	76.90 × 63.90 × 3.2 mm — drawing: 76.90 ± 0.2, 3.20 ± 0.2
Bezel opening	72.80 ± 0.2 mm (width)
Active area	70.08 × 52.56 mm — 36.83 cm²
Pixel pitch	0.219 × 0.219 mm — exactly square
Resolution	320 × 240 (QVGA) — landscape
Fill factor	74.95%
Interface	24-bit RGB + SPI
Connector	54-pin FPC — pitch not stated
Supply	VDD 3.0 / 3.3 / 3.6 V — analog and logic rows identical
Brightness	800 min / 1000 typ / 1200 max cd/m² — highest here, both ends
Contrast	200 min / 300 typ — lowest here; the cost of 1000 nits
Response	TON 15 / 30 ms, TOFF 35 / 50 ms — separate rows
Viewing angle	θX± 60; θY+ 50, θY− 60 — vertically asymmetric
Uniformity	80% — min, typ and max all read 80
CIE	White only — 0.335 / 0.376
Backlight	6 LEDs — 6S1P, 3.2 V per LED, 30 mA
Backlight voltage	16.8 / 19.2 / 20.4 V — confirmed on the drawing
Backlight current	30 mA
Backlight power	0.576 W — stated, matches exactly
Backlight life	30,000 h min / 50,000 h typ
MTBF	50,000 hours
