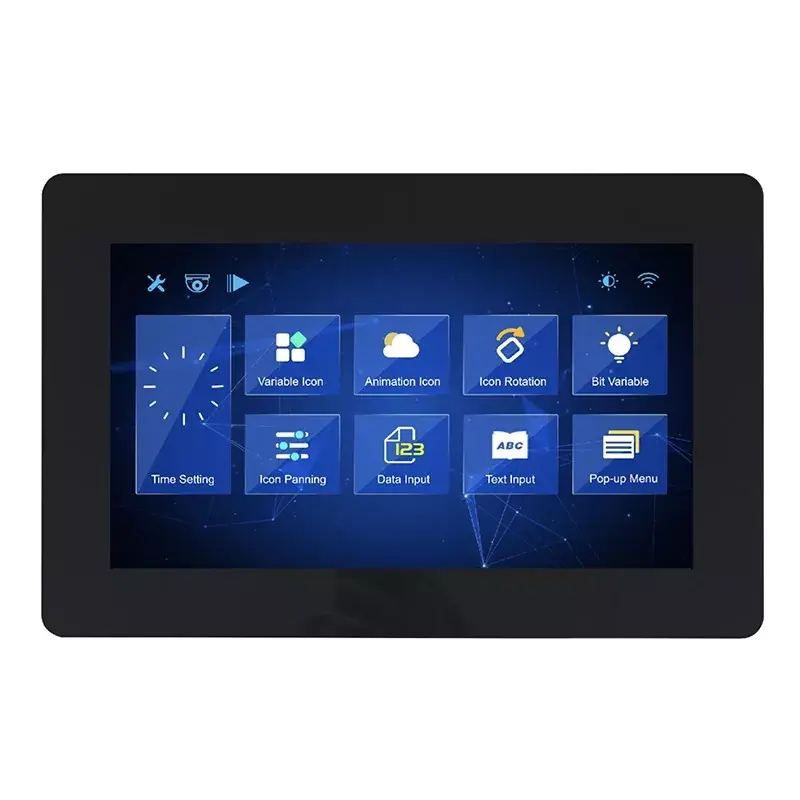

11.6 Inch 1920x1080 FHD TFT LCD Module eDP Interface - VXTB60MJN-02

Where It Gets Used

• Industrial HMI and machine control panels — full HD on a panel large enough to carry a real interface, with an all-angle view.
• Medical monitors and diagnostic displays — normally black gives a true black level, and 700:1 minimum contrast with 70 per cent uniformity are figures you can qualify against.
• Test and measurement equipment — 1920 × 1080 for waveforms, traces and numeric readouts, on square pixels that keep scales true.
• Single-board computer and embedded computing displays — an eDP connector is what an SBC already has.
• Industrial PCs and panel PCs — 30 pins, no parallel bus to route, and no timing budget to meet on a wide single-ended bus.
• Point-of-sale and payment terminals — a 16:9 landscape panel for a transaction view or a second display.
• Kiosk, vending and ticketing terminals — indoor, at 330 cd/m².
• Marine instrument consoles and vehicle displays — shaded cabins and consoles, where the all-angle view matters more than the brightness.
• Control room and process monitoring displays — 89 per cent fill factor keeps the bezel narrow in a multi-panel array.
• Digital signage and information displays — native 16:9 content with no scaling.

  Item	Value
  Model	VXTB60MJN-02
  LCD type	Normally black, transmissive

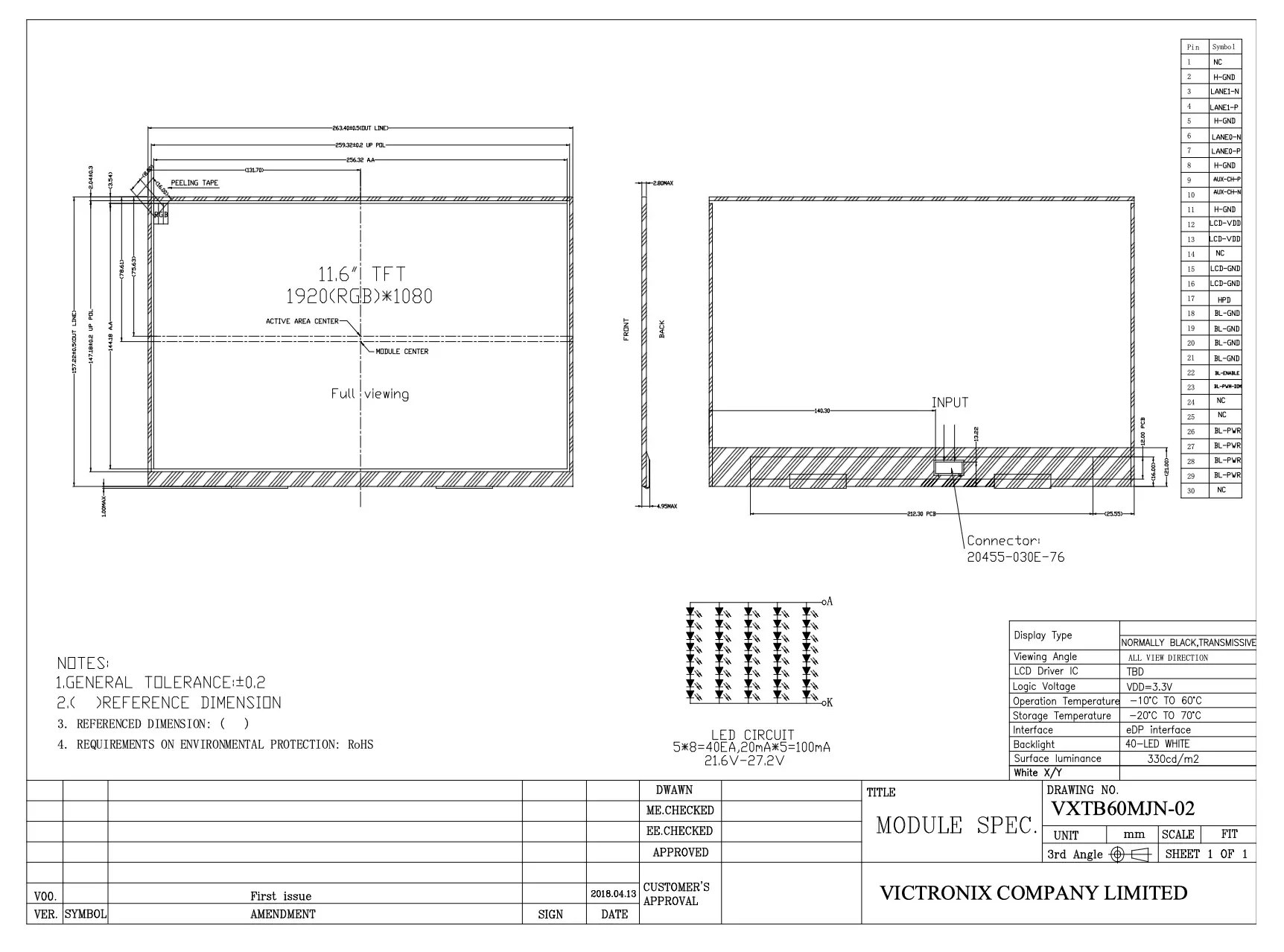

  Module size	263.40 × 157.22 × 2.80 mm
  Active area	256.32 × 144.18 mm — 369.56 cm²
  Resolution	1920 × 1080, landscape
  Aspect ratio	16:9 exact — both 1.777778
  Pixel pitch	0.1335 × 0.1335 mm — square
  Density	190.3 PPI (derived)
  Pixel count	2,073,600
  Frame buffer	3.96 MB at RGB565; 5.93 MB at RGB888 in 3 bytes; 7.91 MB at 4-byte alignment
  Display colours	Not stated — the block diagram annotates 8-bit-per-colour over the link
  Driver IC	TBD — stated as TBD in all three places it appears
  Interface	eDP, 2 lanes — Main Link LANE0 and LANE1, AUX, HPD
  Connector	30-pin I-PEX 20455-030E-76, 0.5 mm pitch
  Mode selection	None — no IM0 to IM3
  Tearing effect	None — no FMARK or TE pin
  Parallel bus / SPI / TTL RGB	None of the three
  Touch panel	None
  Ground pins	Ten — four high-speed (2, 5, 8, 11), two LCD (15, 16), four backlight (18–21)
  No-connect pins	1, 14, 24, 25, 30 — five
  Supply voltage	LCD-VDD 3.0 / 3.3 / 3.6 V on pins 12 and 13 — one rail, no IOVCC
  1.8 V operation	No
  Input leakage	All three cells empty
  Current consumption	Not stated
  Brightness	264 min / 330 typ / 396 max cd/m²
  Contrast ratio	700 min / 1000 typ at θ = 0° — no maximum
  Uniformity	70 min / 75 typ %
  Viewing angle	80° min / 89° typ in all four directions at CR ≥ 10
  Response time	25 ms typ — one row, TON and TOFF combined, no floor or ceiling
  Viewing direction	All angle of view
  Grey-scale inversion	Blank
  Polarizer	Anti-glare
  Backlight	40 white LEDs, 8 in series × 5 strings
  Backlight voltage	21.6 / 26 / 27.2 V — 2.7 to 3.4 V per LED
  Backlight current	100 mA total — 20 mA per string
  Backlight power	2.6 W — stated, matches 26 V × 100 mA exactly
  Backlight control	BL-ENABLE pin 22, BL-PWM-DIM pin 23, 200 to 2000 Hz
  Backlight life	30,000 h min / 50,000 h typ
  Operating temperature	−10 °C to +60 °C
  Storage temperature	−20 °C to +70 °C
