7.0 Inch 1024x600 TFT LCD Module 4-Lane LVDS Interface with CABC - VXT700IXN-02

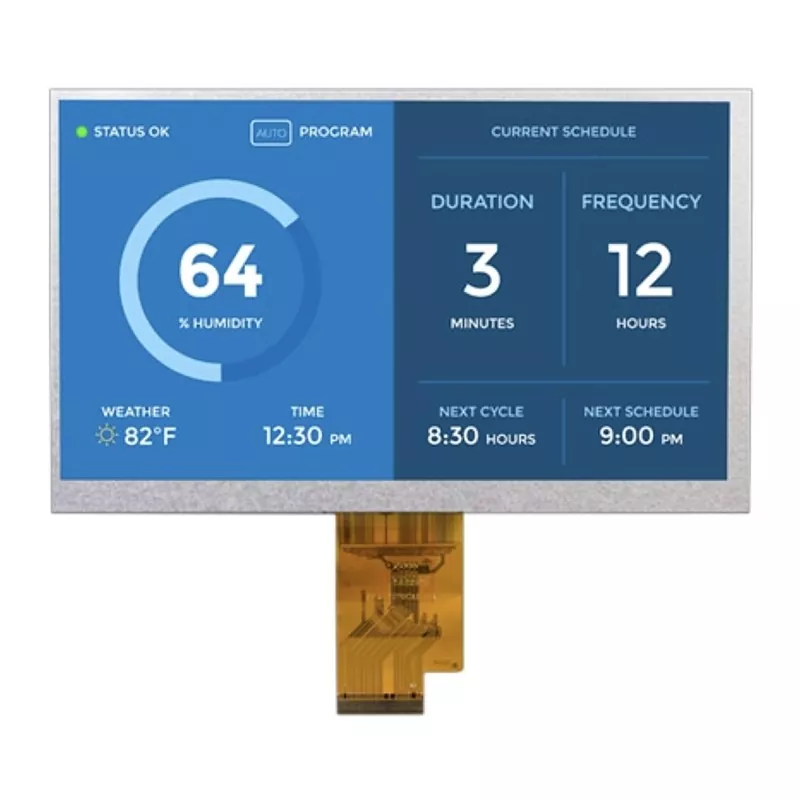

This Victronix 7 inch 1024x600 LVDS TFT Module is a high-performance 7 inch TFT LCD display module engineered for reliability in demanding environments. Featuring a 1024×(RGB)×600 resolution and a sleek design with hard-coating glare surface treatment, this module delivers crisp visuals and robust functionality for embedded systems, HMI panels, and portable devices. As a professional manufacturer and supplier of TFT modules in China, Victronix 7 inch TFT Module is fully compliant with ROHS environmental standards, ensuring superior application performance. We offer a customized service to meet the needs of our customers.

Model:VXT700IXN-02

Send Inquiry PDF DownLoad

Rating: 5.0

(Rating Count: 1)

Product Description

General Information

Item	Value
Model	VXT700IXN-02
LCD size	7.0 inch diagonal
Driver element	a-Si TFT active matrix (panel technology)
Polarity	Normally white, transmissive
Module size	165.75 × 105.39 × 3.4 mm

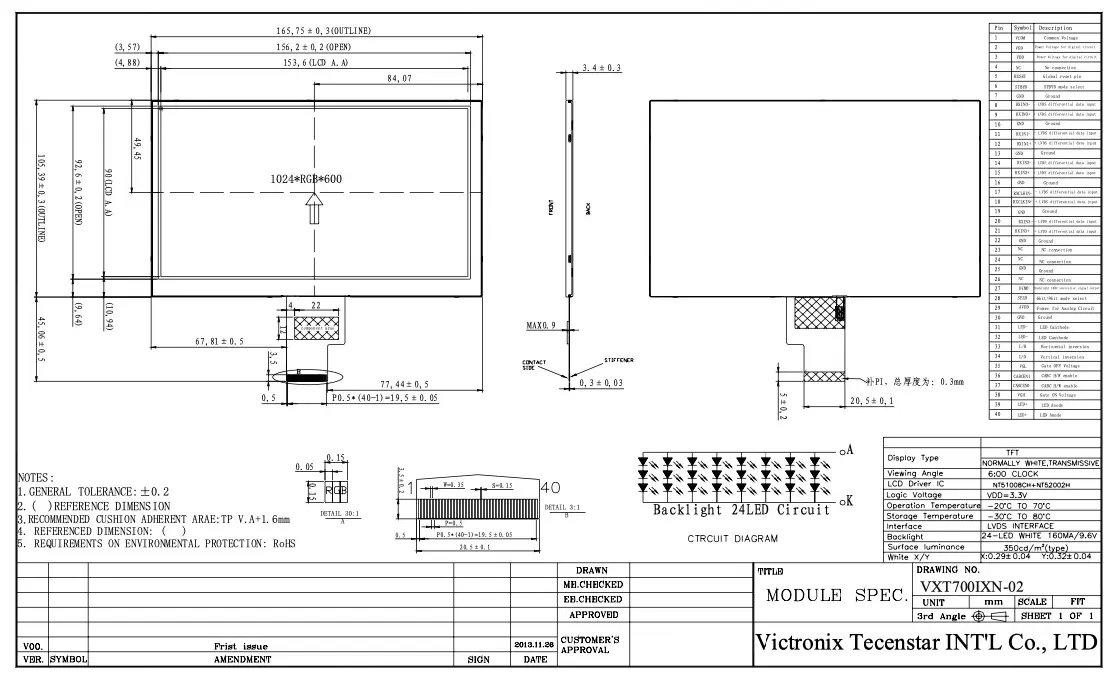

Module size on drawing	165.75 ±0.3 × 105.39 ±0.3 mm — agrees
Recommended bezel opening	156.2 × 92.6 mm (±0.2) — 1.30 mm clearance per side
Active area	153.6 × 90.0 mm — 138.24 cm²
Resolution	1024 × 600, landscape (WSVGA)
Dot pitch as printed	0.05 (W) × 0.15 (H) mm — W is a sub-pixel
True pixel pitch	0.15 × 0.15 mm — square
Active aspect	1.706667 — matches the dot matrix exactly
Surface treatment	Hard coating glare
Interface, actual	4-lane LVDS + 1 clock pair
CABC	Yes — DIMO pin 27, CABCEN1/0 pins 36/37
Scan direction	L/R pin 33, U/D pin 34 — levels stated
Reset	Pin 5 — polarity not stated
Connector	Hirose FH12A-40S-0.5SH, 40 pins, 0.5 mm
Grounds	8 — pins 7, 10, 13, 16, 19, 22, 25, 30
Current, DVDD	50 typ / 60 max mA
Current, AVDD	25 typ / 30 max mA
Panel power	0.45 W — stated, and derived figures match
Timing	Published — Th 1344, Tv 635, Fclk 51.2 MHz → 60 Hz
Brightness	280 min / 350 typ cd/m² — measured at 180 mA
Contrast	500 min / 700 typ
Response	TON 10 typ / 20 max ms; TOFF 15 typ / 30 max ms
Viewing angle	65°/75° at 3, 6, 9 o'clock; 60°/70° at 12 o'clock
View direction	6 o'clock — label ambiguous
Transmittance	3.5% typical
Backlight	24 LEDs — 3S8P (derived)
Backlight voltage	9.6 typ / 10.2 max V
Backlight current	160 typ / 170 max mA — 20 mA per string
Backlight power	1.536 W (derived)
Backlight life	20,000 h typical at 160 mA
LED driver	Boost converter with current regulation required
Operating temperature	−20 to +60 °C
Storage temperature	−30 to +70 °C

Where It Gets Used

Industrial HMI and machine control panels — WSVGA on a 4-lane LVDS link from an applications processor or FPGA.
Handheld and portable field instruments — CABC and STBYB make the power budget work.
Battery-powered equipment — the panel dims its own backlight from image content.
Medical devices and portable monitors — 169 PPI for dense readouts and waveforms.
Point-of-sale and payment terminals — a receipt and line-item view with a small host.
Test and measurement equipment — square pixels keep scales, traces and dial graphics true.
Vehicle consoles and marine instruments — LVDS is noise-immune over a longer cable run.
Access control, intercom and door panels — a keypad or directory view.
Kiosk, vending and ticketing terminals — indoor, at 350 cd/m².
Embedded Linux and Android projects — a standard LVDS panel for a board with an LVDS transmitter.
