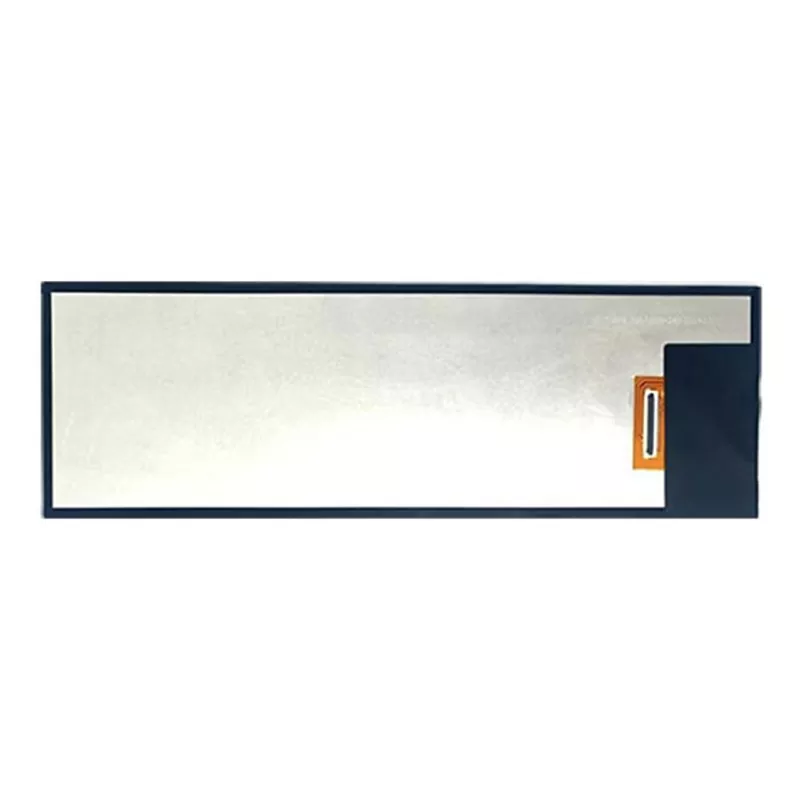

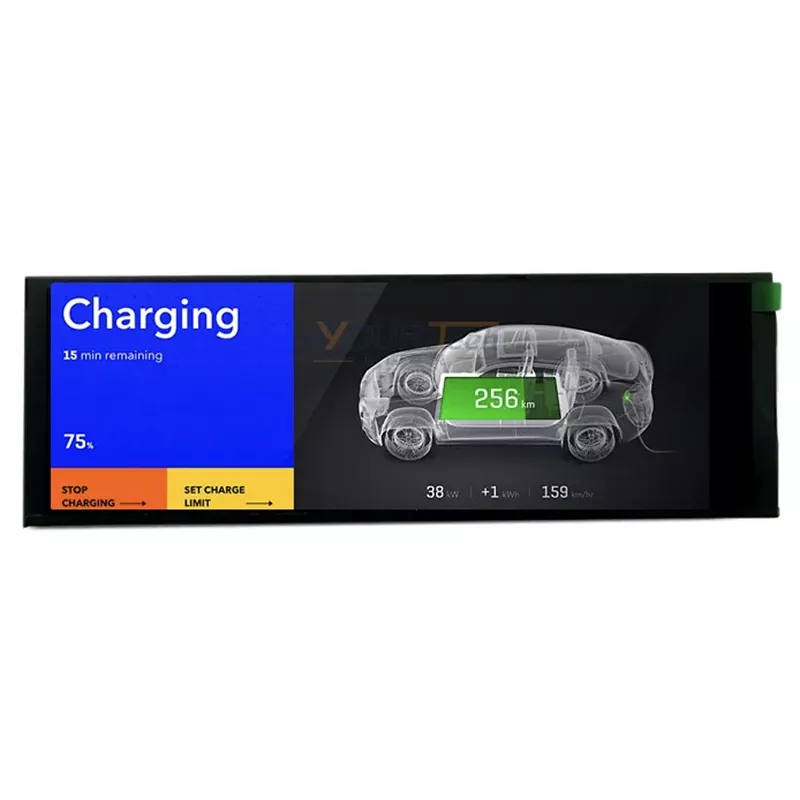

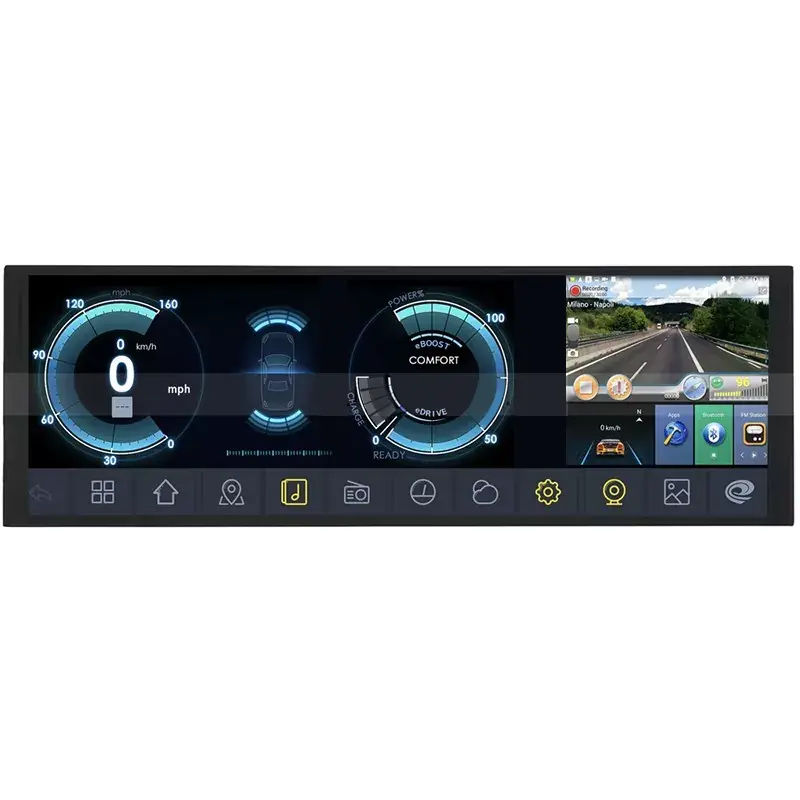

7.84 Inch 400x1280 Bar Type TFT LCD Module MIPI - VXT784BZE-01
This Victronix 7.84 inch 400x1280 Bar IPS TFT Module is a high-performance 7.84 inch TFT LCD module designed for industrial embedded systems. Featuring a 400(RGB) × 1280 resolution and a 59.40 × 190.08 mm active area, this module delivers sharp, distortion-free images with a wide 160° viewing angle (H/V). The 400 cd/m² typical brightness and 900:1 contrast ratio ensure vivid readability even in challenging lighting conditions. As a professional manufacturer and supplier of TFT modules in China, Victronix 7.84 inch TFT Module is fully compliant with ROHS environmental standards, ensuring superior application performance. We offer a customized service to meet the needs of our customers.
Model:VXT784BZE-01
Send Inquiry PDF DownLoad

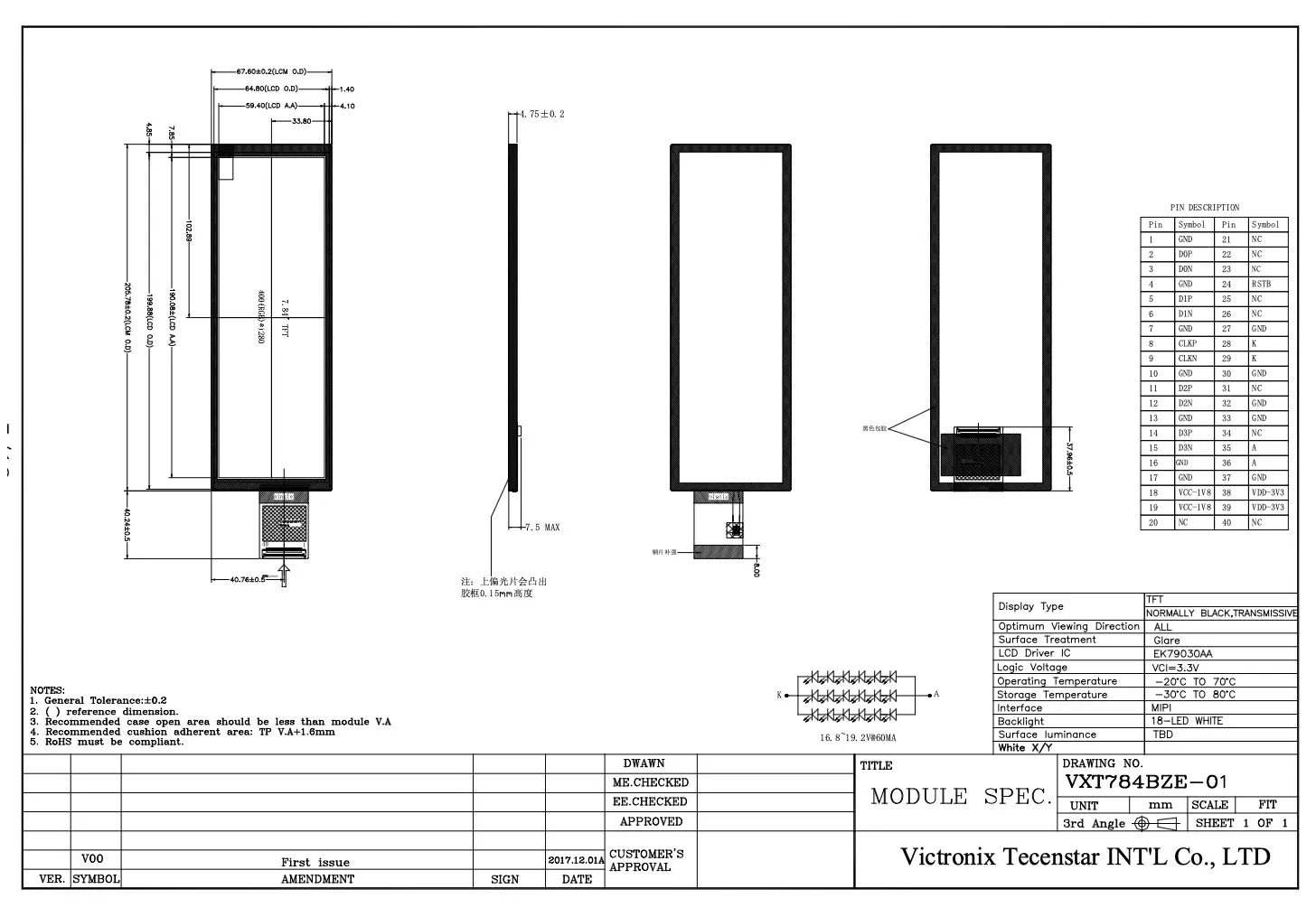

Product Description
| Item | Value |
|---|---|
| Model | VXT784BZE-01 |
| LCD type | TFT, transmissive, normally black |
| Module size | 67.60 × 205.78 × 4.75 mm |
| Active area | 59.40 × 190.08 mm — 112.91 cm² |
| Resolution | 400 × 1280, portrait bar type |
| Aspect ratio | 16:5 exact — 3.2:1 |
| Pixel pitch | 0.1485 × 0.1485 mm — square |
| Density | 171.0 PPI (derived) |
| Pixel count | 512,000 |
| Driver IC | EK79030AA (FITIPOWER, COG) |
| Interface | MIPI |
| Connector | 40-pin FPC |
| Grounds | 12 — pins 1, 4, 7, 10, 13, 16, 17, 27, 30, 32, 33, 37 |
| Supply, analog | VDD 3.3 V typical, 3.6 V max — pins 38, 39 |
| Absolute max | VCC −0.3 to 5 V; VDD −0.3 to 5 V; VGH 12 to 18 V; VGL −14 to −8 V; 30 mA per LED |
| Polarizer | Glare |
| Backlight | 18 white LEDs, likely 6S3P (derived) |
| Backlight voltage | 16.8 / 18 / 19.2 V at IL = 60 mA |
| Backlight current | 60 mA — 20 mA per string (derived) |
| Backlight power | 1.08 W — stated, matches exactly |
| Backlight life | 30,000 min / 50,000 typ hours |
| Brightness | 320 min / 400 typ / 480 max cd/m² |
| Contrast | 700 min / 900 typ |
| Response | 30 ms typical, 40 ms max — no floor, directions not separated |
| Uniformity | 70% typical only |
| Viewing direction | ALL |
| Viewing angle | 80° in all four directions |
| Operating temperature | −20 to +70 °C |
| Storage temperature | −30 to +80 °C |
Where It Gets Used
- Shelf edge labels and electronic shelf tags — a 190 mm column carrying price, name and barcode.
- Digital signage strips — narrow, tall, mountable end to end.
- Elevator and lift information panels — fits the narrow jamb beside a door.
- Vehicle, bus and rail information panels — a route, a stop list or an advertisement in a tall slot.
- Instrument columns and rack units — a vertical slot a 4:3 panel cannot fill.
- Narrow HMI cut-outs — where the enclosure is tall and thin by design.
- Kiosk and vending side panels — indoor, at 400 cd/m².
- Smart home control columns — portrait, wall-mounted, MIPI from an applications processor.
- Embedded Linux and Android projects — a standard DSI panel for a board with a MIPI-DSI
