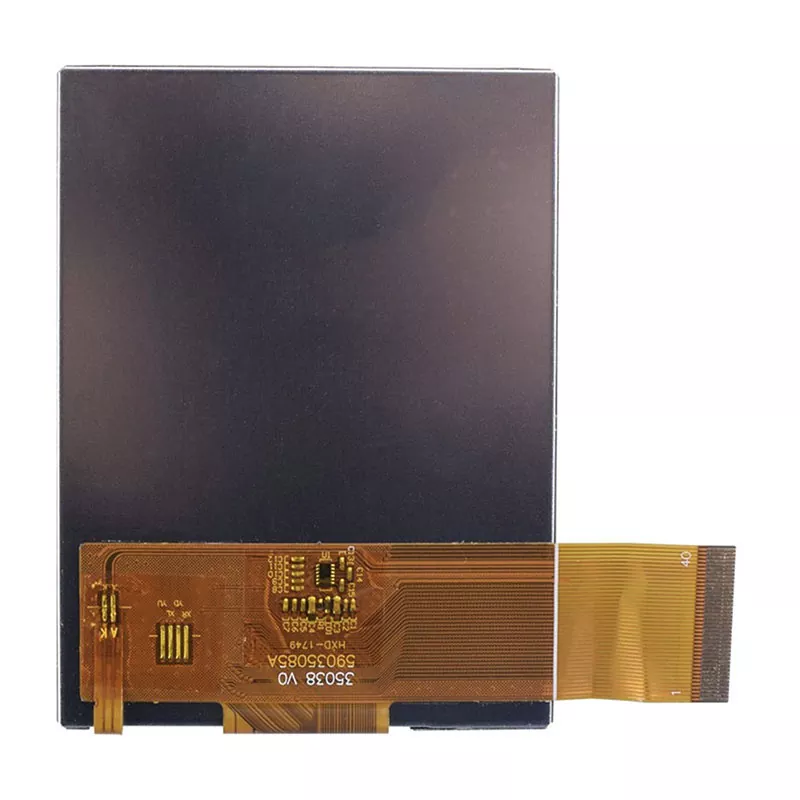

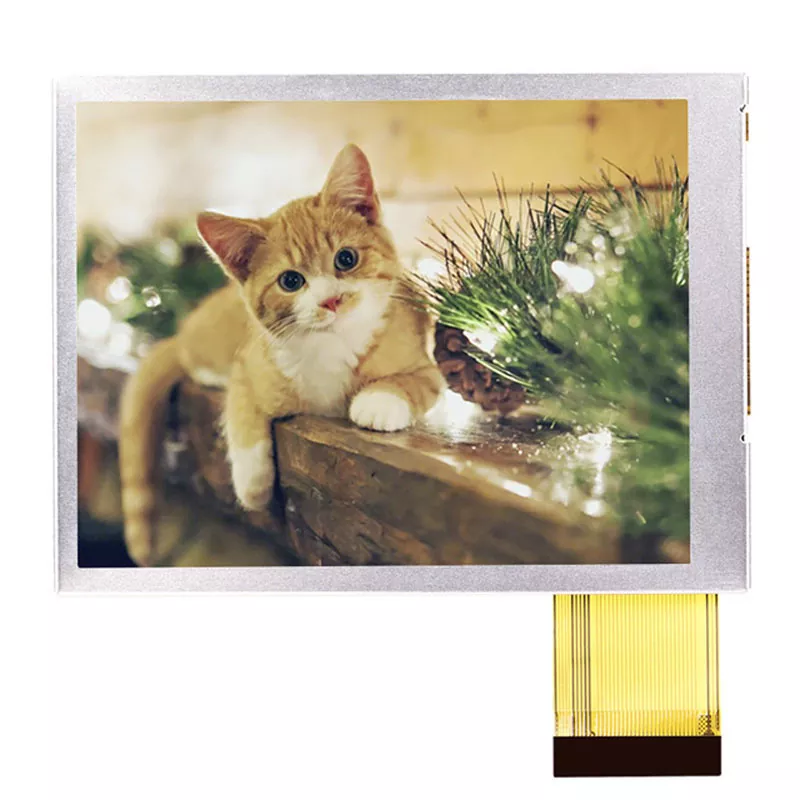

3.5 Inch 480x640 Portrait Transflective TFT LCD Module 18-Bit RGB + SPI - VXT350FLVH-01

Victronix 3.5'' 480x640 transflective IPS TFT Module offers a typical brightness of 150cd/m², a wide viewing Angle of 80° (typical) in all directions, and a contrast ratio of 300:1, ensuring excellent readability from various angles. Secondly, it integrates a backlight unit utilizing 6-chip white LEDs with a typical lifetime of 50,000 hours (to 50% initial brightness), ensuring clear visibility in all lighting conditions. Besides, it features a flexible 18-bit RGB parallel interface and an SPI control interface through the SCL and SDA pins.

Where It Gets Used

• Outdoor handheld instruments and field terminals — reads in direct sun with the backlight off.
• Marine instrument consoles and chartplotters — sunlight on water is the hardest case there is.
• Motorcycle and bicycle dashboards — direct sun, and vibration and shock are specified.
• Vehicle and agricultural equipment displays — cabins and open cabs in full sun.
• Portable medical devices used outdoors or in ambulances — legible in bright ambient light.
• Handheld and portable instruments — 228 PPI keeps dense readings legible on a small panel.
• Industrial HMI in bright interiors or near windows — the backlight can be dimmed or off.
• Battery-powered outdoor products — turning the backlight off in daylight removes 0.384 W from the budget.Kiosk and ticketing terminals in semi-outdoor locations — under canopies, in stations, at entrances.
• Test and measurement equipment — square pixels keep scales, traces and dial graphics true.Portable monitors and embedded Linux projects — 600 KB on external RAM, driven by a host with an RGB output.

General Specification

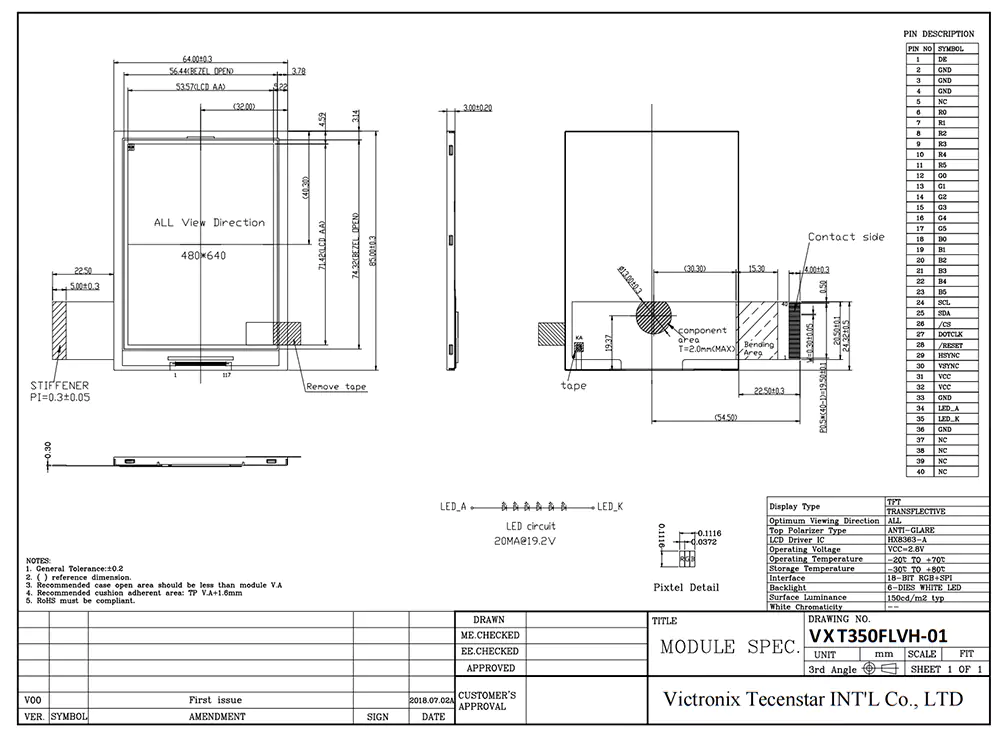

Mechanical Drawing
