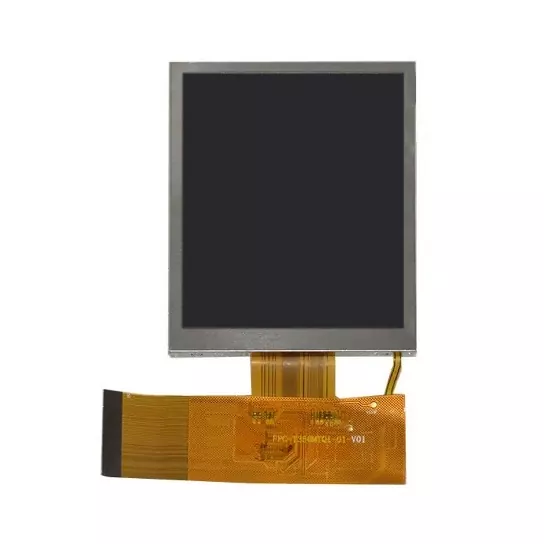

3.5 inch Transflective 240*320 TFT Module

VXT350FPQI-01 is one of Chinese factory Victronix’s Round TRANS-REFLECTIVE IPS TFT Module. As a factory in China, Victronix has flexible capacity to customize the 3.5 inch Transflective 240*320 TFT Module with different appearance and dimension according to customer requirements.

Model:VXT350FPQI-01

Send Inquiry PDF DownLoad

Product Description

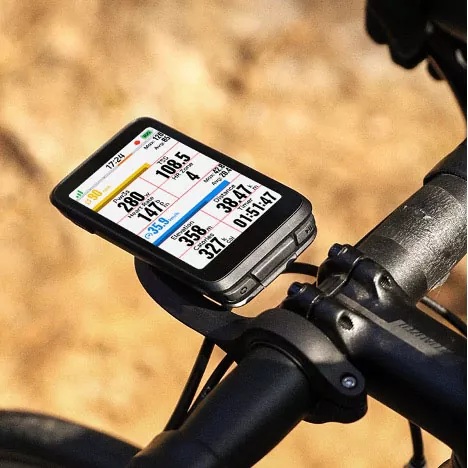

This VXT350FPQI-01 applies to 3.5 inch Transflective 240*320 TFT Module,100nits brightness,8/16bits MCU interface, is designed for E-bike, digital camera application, industrial equipment device and other electronic products which require high quality flat panel displays, excellent visual effect, especially in strong sunlight environment.

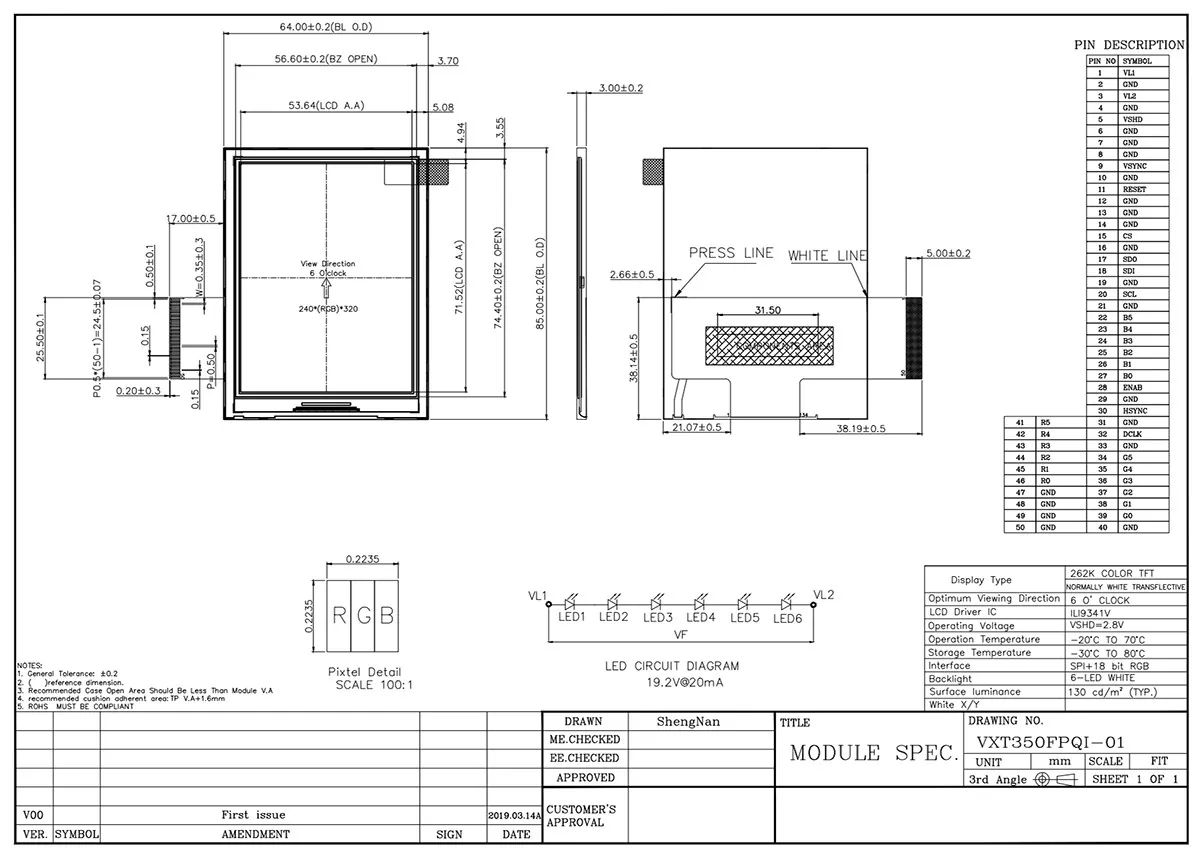

General Specification

Item	Contents	Unit
LCD TYPE	TFT/TRANSFLECTIVE
MODULE SIZE(WHT)	64852.93	MM
ACTIVE SIZE(W*H)	53.64*71.52	MM
PIXEL PITCH(W*H)	0.2235*0.2235	MM
NUMBER OF DOTS	240*320
DRIVER IC	ILI9341V
INTERFACETYPE	SPI+18 BIT RGB
TOP POLARIZER TYPE	GLARE
RECOMMEND VIEWING DIRECTION	6	O'CLOCK
GRAY SCALE INVERSION DIRECTION	12	O'CLOCK
BACKLIGHT TYPE	6-DIES WHITE LED
TOUCH PANEL TYPE	WITHOUT
