2.4 Inch 240x320 Transflective Sunlight Readable TFT LCD Module Anti-Glare - VXT240FBQS-01

How transflective behaves as light changes

The direction of travel. A transmissive panel gets harder to read as the surroundings brighten. A transflective one gets easier, because there is more light to reflect — and the anti-glare layer means that extra light arrives as diffuse illumination rather than a mirror image.

The practical consequence for a portable product: the backlight, normally the largest single load in a display module, can be switched off entirely rather than merely dimmed.

Where It Gets Used

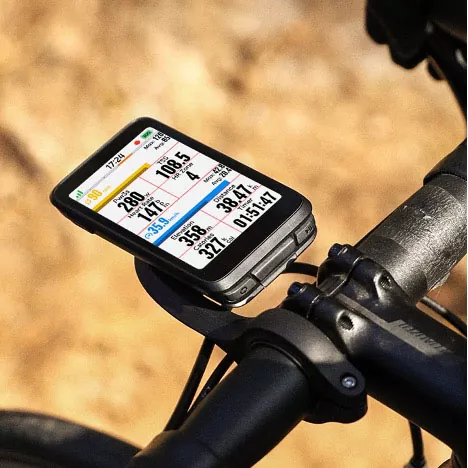

• Handheld outdoor instruments — meters, analysers and test gear read in daylight.
• Portable field terminals — inspection, survey, agriculture, utilities.
• Battery-powered devices used by day — backlight off outdoors, 8 mA remaining.
• Marine and vehicle instruments — bright cabins and cockpits where a glossy surface would mirror the sky.
• Portable medical devices — carried between locations, read in changing light.
• Compact control panels — 42.72 × 60.40 mm outline where space is tight.Industrial handheld controllers — -20°C cold end, ±8 kV air ESD.

General Specification

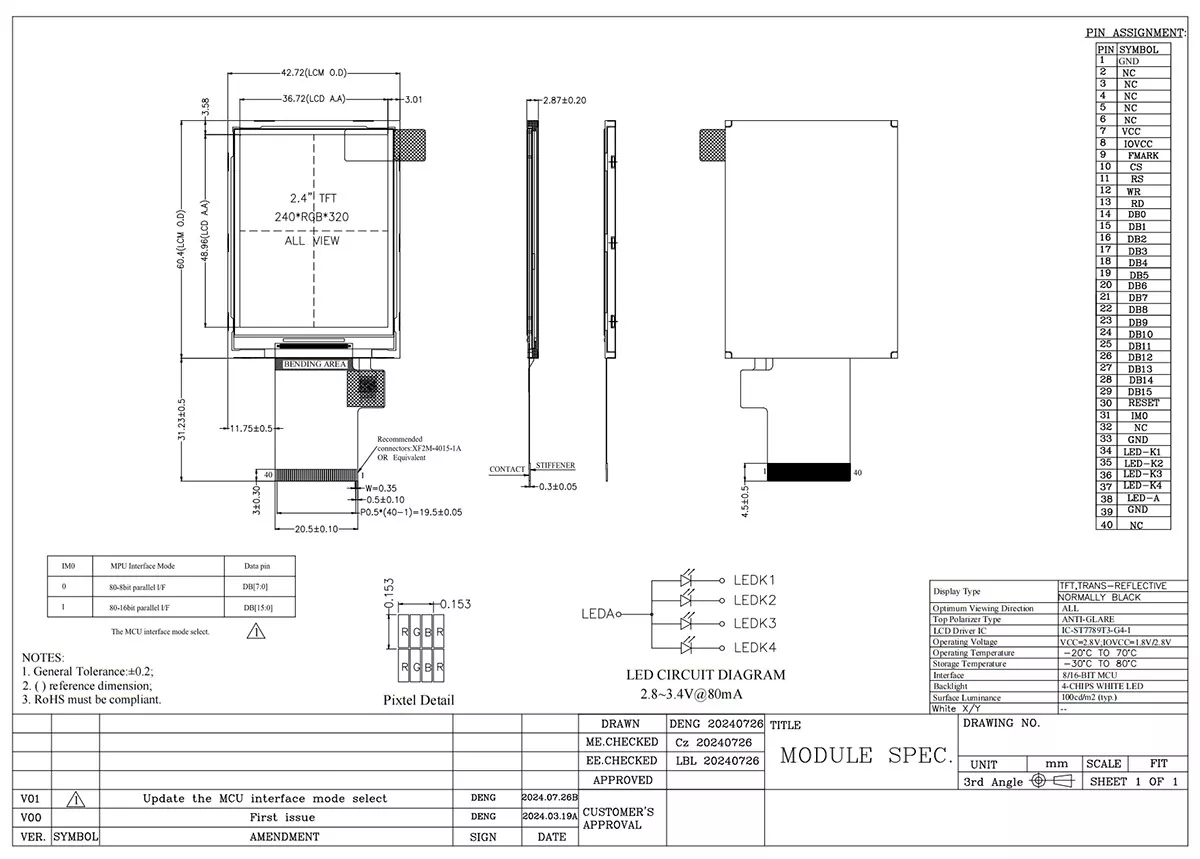

Mechanical Drawing
