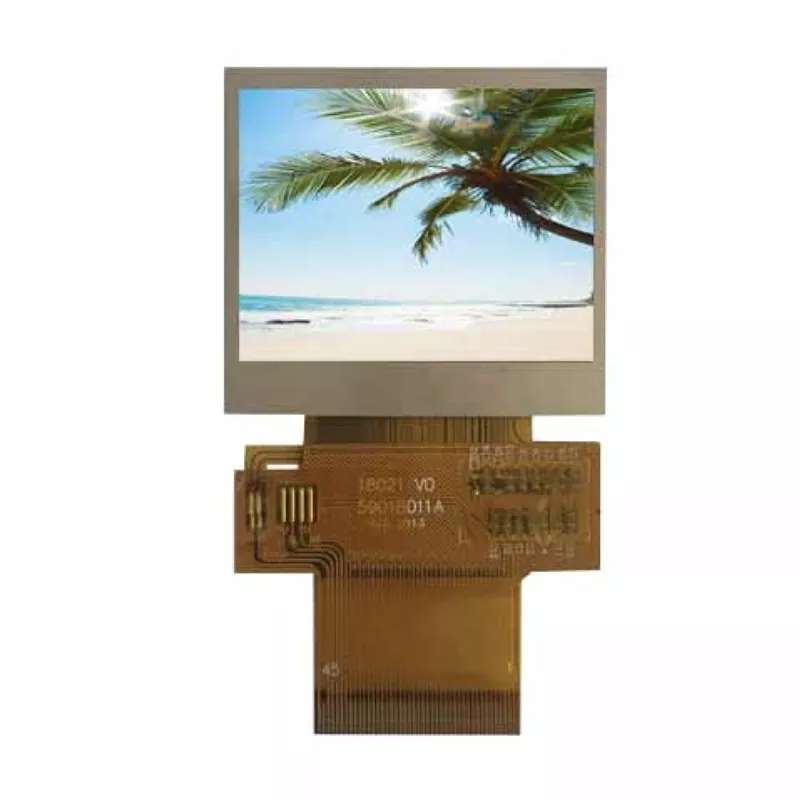

1.74 inch 240x128 Transflective TFT Module

This Victronix 1.74 inch 240x128 Transflective TFT Module is a high-performance 1.74 inch Transflective TFT-LCD module designed for robust industrial and portable applications. Featuring a 240×RGB×128 pixel resolution and 262K color depth, this module delivers crisp visuals in both indoor and outdoor environments. Its compact design (40.77 × 36.20 × 2.40 mm) maximizes space efficiency while offering a 35.28 × 26.46 mm active display area. As a professional TFT module manufacturer and supplier in China, this Victronix 4.3inch TFT Module is strictly compliant with the ROHS environmental standards to provide superior application performance.

Model:VXT174MYKH-01

Send Inquiry PDF DownLoad

Product Description

In the age of intelligence, TFT MODULE helps us to present the required data in the form of images. The quality of the TFT module has a critical impact on its application. What are the advantages of the Victronix 1.74 inch 240x128 Transflective TFT Module? At first, it provides a premium display to customers which has a 240×128 resolution with 262K colors, 50° viewing angle at 3/6 O’ clock, 40° viewing angle at 9/12 O’ clock, 150 cd/m² typical brightness, and 130:1 contrast ratio. Secondly, it passes rigorous reliability tests (high/low-temperature operation, vibration, shock per IEC standards) so that it can operate in extreme temperatures (-30°C to +70°C). Besides, it not only features a 3-line SPI protocol (HX8347-D controller) and low-voltage operation (2.8V power supply) but also has a LED backlight lifespan of 20,000-50,000 hours (50% brightness retention). These make it more suitable for harsh industrial and outdoor settings.

This Victronix 1.74 inch TFT module has 7.5% reflectance (backlight off) for optimal sunlight readability and is widely used in Handheld meters, outdoor instrumentation, industrial HMIs, and fleet management terminals.

Key Features:

· 1.74-inch transflective LCD

· 240×128 resolution

· Sunlight-readable & low-power

· Compact & lightweight design

Perfect for small yet high-performance displays!

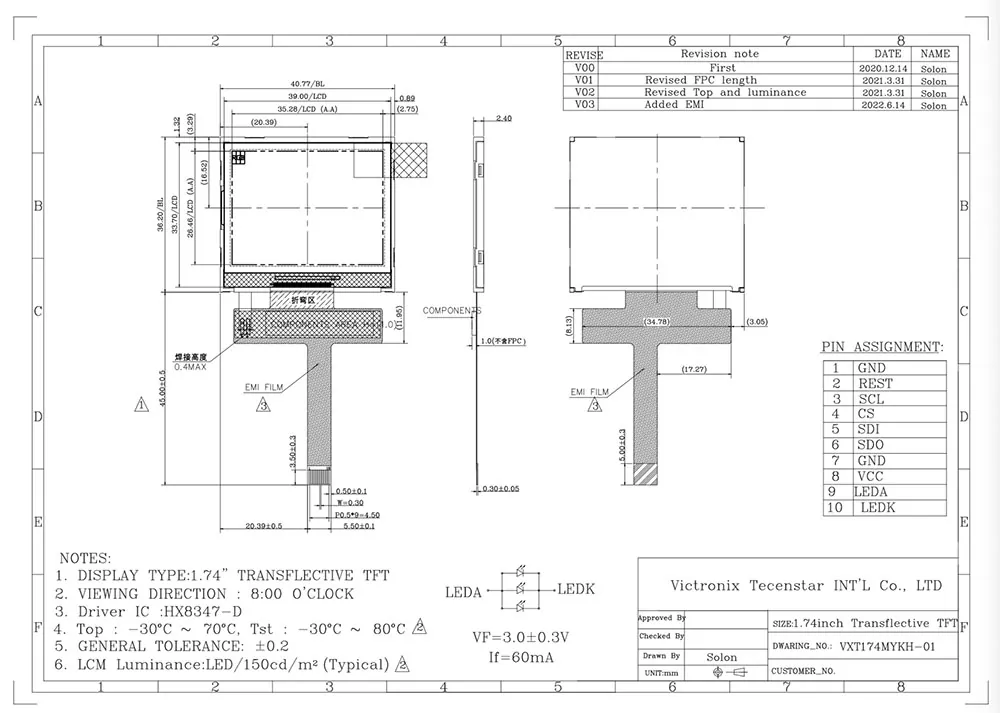

General Specifications

VXT174MYKH-01 1.74 inch 240x128 Transflective TFT Module is a TFT-LCD module. It is composed of a TFT-LCD panel, driver IC,FPC, a back light unit. The 1.74¢¢ display area contains 240 x (RGB) x 128 pixels and can display up to 262K colors. This product accords with ROHS environmental criterion..

Item	Contents	Unit	Note
LCD Type	TFT	-
Display color	262K	-	1
Viewing Direction	8:00	O'Clock
Operating temperature	-30~+70	℃
Storage temperature	-30~+80	℃
Module size	40.77x 36.20x2.40	mm	2
Active Area(W×H)	35.28x 26.46	mm
Number of Dots	240x128	dots
TFT Controller	HX8347-D	-
Power Supply Voltage	2.8	V
Backlight	3P-LEDs (white)	pcS
Weight	---	g
Interface	3-Line-SPI	-
