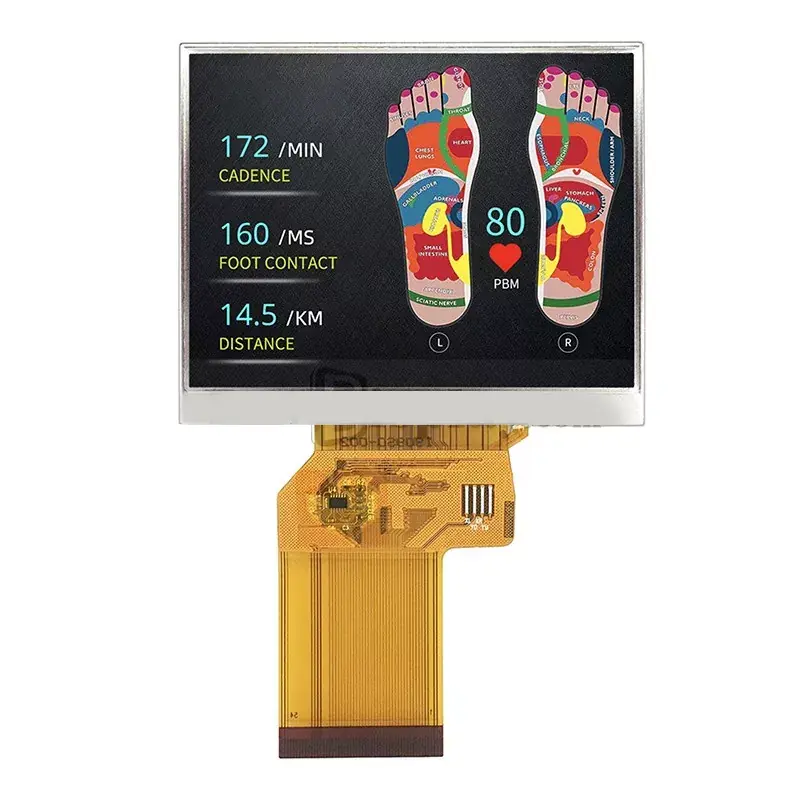

3.5 Inch 320x240 High Brightness Wide Temperature TFT LCD Module 24-Bit RGB + SPI Interface - VXT350HQS-01X-W

The Victronix VXT350QHI-26C is a 3.5-inch 320 × 480 portrait TFT LCD module with a capacitive touch panel, driven by ILI9488. What sets it apart: three interface families on one connector — 24-bit RGB, MCU parallel, and SPI — selected by three strap pins. And unlike most modules in this range, the drawing actually gives you figures to design to.

Model:VXT350HQS-01X-W

Send Inquiry PDF DownLoad

Product Description

Where It Gets Used

Smart home and building control panels — 320 × 480 portrait with capacitive touch, 80° viewing in every direction so it mounts at any height and angle.
Video door phone and intercom indoor units — portrait touch, and a 2.85 mm side bezel keeps the panel compact on a wall plate.
Handheld industrial terminals and handheld computers — MCU or SPI, 300 KB frame buffer, TE for tear-free updates.
Portable test and measurement instruments — 700:1 contrast, all eight CIE coordinates, 0.36 W of backlight.
Industrial HMI and machine sub-panels — three interface families on one part number, selected by straps.
Access control and door panels — a keypad or directory view with touch.
Portable medical and laboratory devices — small frames, low-voltage logic, thin module.
Point-of-sale and handheld payment terminals.Kiosk and vending sub-displays.
Retrofits of existing 3.5-inch portrait equipment — one of the most widely deployed small-panel formats still in service.

General Information

Item	Value
Model	VXT350QHI-26C, VER.0
LCD type	TFT — TRANSMISSIVE
Composition	Panel, driver IC, FPC, back light and CTP unit — touch is included
Colours	16.7M — genuine, 24 data lines
Viewing direction	ALL — confirmed by four identical 80° angles and by U/L/D/R = 80/80/80/80
Operating temperature	−20 to +70 °C
Storage temperature	−30 to +80 °C — properly wider
Module size	54.66 × 82.94 × 3.90 mm — Note 2: with CTP, without FPC and solder
Active area	48.96 × 73.44 mm — 35.96 cm² — portrait
Pixel pitch	0.153 × 0.153 mm — exactly square
Resolution	320 × 480 — native portrait
Bezel	2.85 mm L/R, 4.75 mm T/B
Controller	ILI9488
Interface	MCU / RGB / SPI
CTP FPC	20-pin, 0.5 mm pitch, 9.5 ± 0.05 span, 10.5 ± 0.1 W
Brightness	300 cd/m² typical — no floor, no ceiling
Contrast	700 typical — highest of any 3.5-inch panel here
Response	Tr + Tf 30 ms typical — one row, no minimum, no maximum
Uniformity	75% min / 80% typ
CIE	All eight — W 0.315/0.370, R 0.660/0.325, G 0.277/0.568, B 0.145/0.072
NTSC	69 % typical — highest gamut of any 3.5-inch panel here
Backlight	6 LEDs — 6P, in parallel — confirmed by the drawing
Backlight voltage	2.7 / 3.0 / 3.3 V at 120 mA
Backlight current	120 mA total — 20 mA per LED
Backlight power	0.36 W (derived); 0.396 W at max Vf
Backlight life	20,000 h — typical only, no minimum

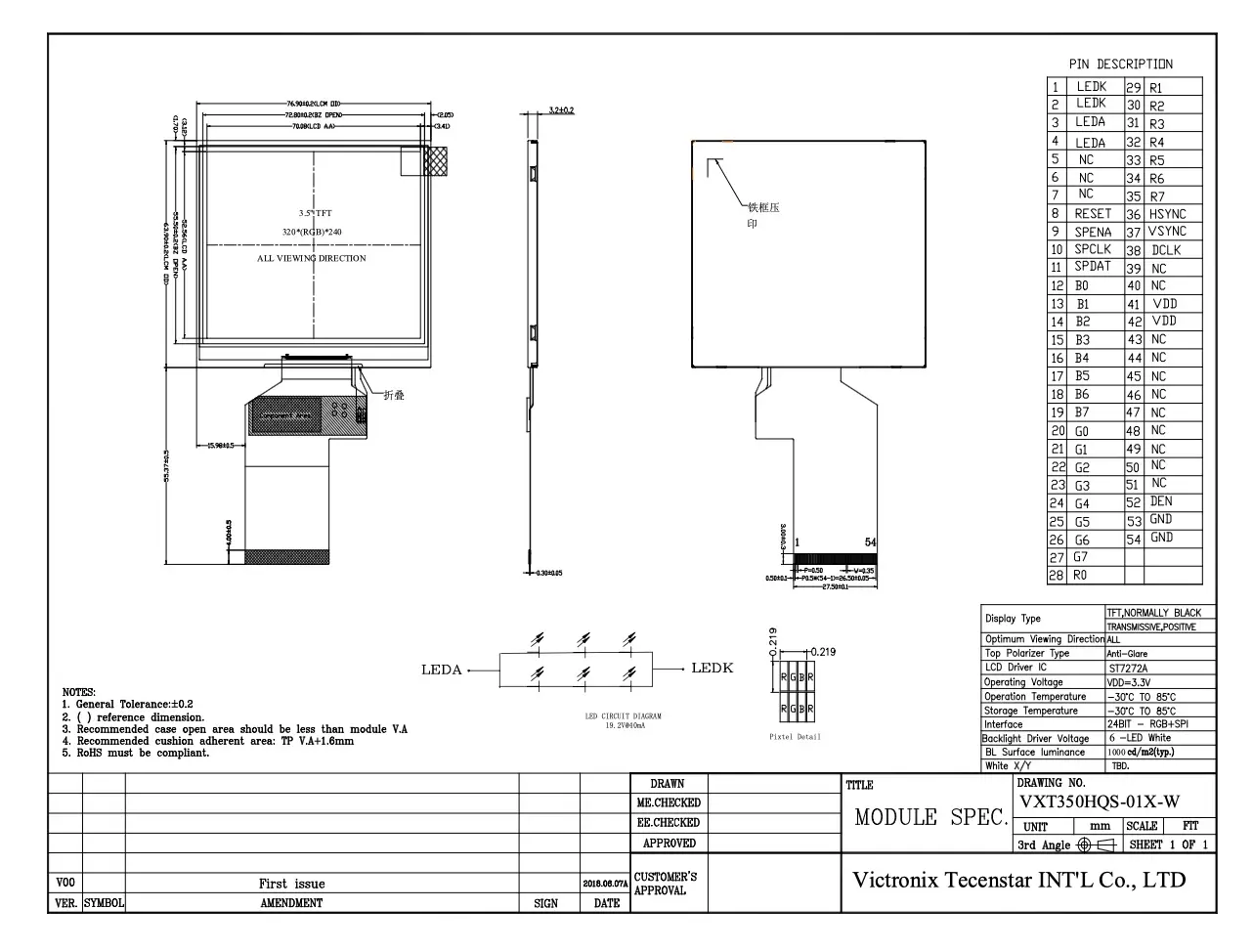

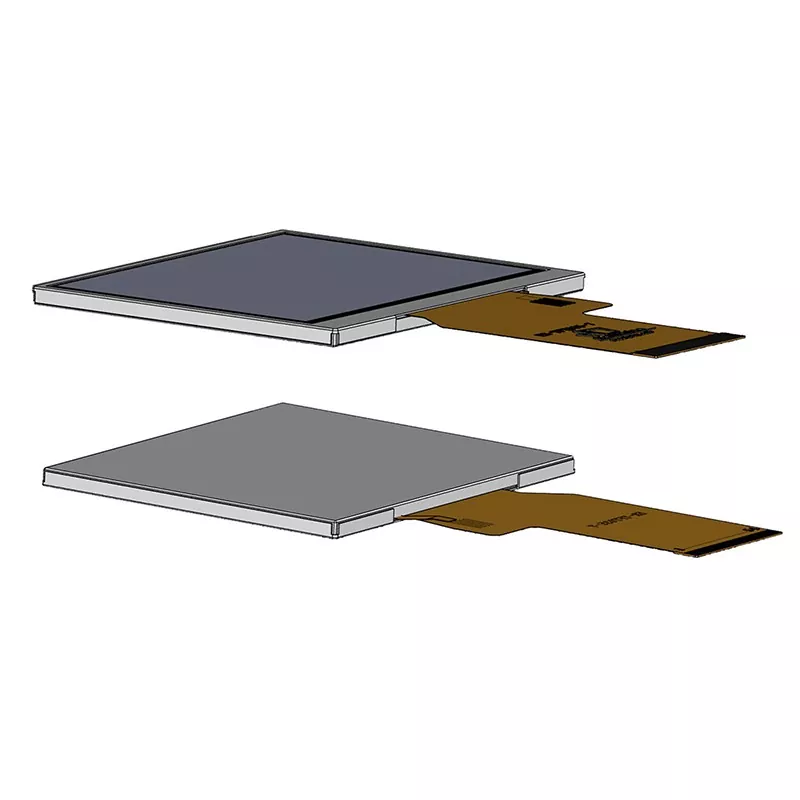

Outline Drawing

3.5 inch Wide Temperature Outdoor TFT Module

Application

3.5 inch Wide Temperature Outdoor TFT Module
