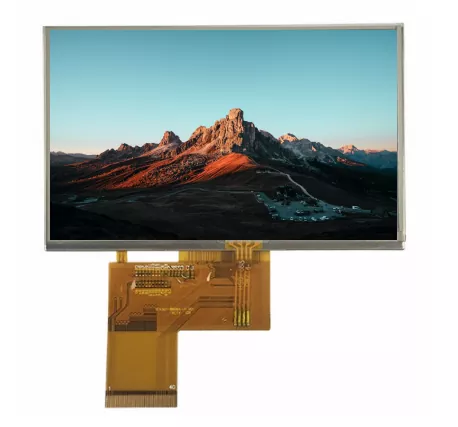

4.3 inch 480x272 RGB TFT LCD Module VXT430BPI-01ND
The VXT430BPI-01ND is a 4.3-inch 480x272 industrial TFT LCD module with a standard RGB interface and ILI6485 controller. It delivers 16.7M colors, 300 cd/m2 brightness, a 700:1 contrast ratio and a 20 ms response time, backed by a 7S1P white LED backlight rated for 30,000 to 50,000 hours. Operating from -20°C to +70°C and RoHS compliant, it is built for industrial HMIs, automotive dashboards and medical monitoring devices. Custom FPC, touch panel and cover glass are available.
Model:VXT430BPI-01ND
Send Inquiry PDF DownLoad
Product Description
A TFT LCD (Thin-Film Transistor Liquid Crystal Display) is an active-matrix display in which each pixel is driven by its own transistor, delivering sharper images, higher contrast and faster response than passive matrix LCDs. This makes TFT modules the standard choice for industrial HMIs, medical devices and portable instruments.
Built for Harsh Environments
The module passes thermal shock cycling (-30°C to +80°C), humidity storage (60°C / 90% RH) and mechanical vibration testing, ensuring stable operation in demanding industrial and automotive applications.
Applications
- Industrial HMI and control panels
- Automotive dashboards and instrumentation
- Medical monitoring devices
- Portable test and measurement equipment
- Handheld terminals
- Coffee machine
Customization and Service
Victronix provides custom FPC length and pinout, resistive or capacitive touch panels, cover glass, interface conversion boards and brightness upgrades. Engineering support and fast sampling are available for both prototype and volume production.
FAQ
Q: What is the MOQ for the VXT430BPI-01ND?
A: 1kpcs/lot
Q: Can you provide a datasheet and 3D drawing?
A: Yes, the full datasheet, 3D drawing and interface definition are available on request.
Q: Is a touch panel available for this module?
A: Yes, both resistive and capacitive touch panels can be integrated, with custom cover glass and bonding.
LCD Parameter
|
Item |
Contents |
Unit |
Note |
|
LCD Type |
TFT |
- |
|
|
Display color |
16.7M |
1 |
|
|
Viewing Direction |
12 |
O’Clock |
|
|
Grayscale inversion direction |
6 |
O’Clock |
|
|
Operating temperature |
-20~+70 |
℃ |
|
|
Storage temperature |
-30~+80 |
℃ |
|
|
Module size |
Refer to outline drawing |
mm |
|
|
Active Area(W×H) |
95.04X53.86 |
mm |
|
|
Number of Dots |
480*272 |
dots |
|
|
Driver IC |
ILI6485(Series) |
- |
|
|
Backlight |
7S1P-LEDs (white) |
pcs |
|
|
Power Supply Voltage |
3.3 |
V |
|
|
Interface |
RGB |
- |
|
Note1：Color tune is slightly changed by temperature and driving voltage.

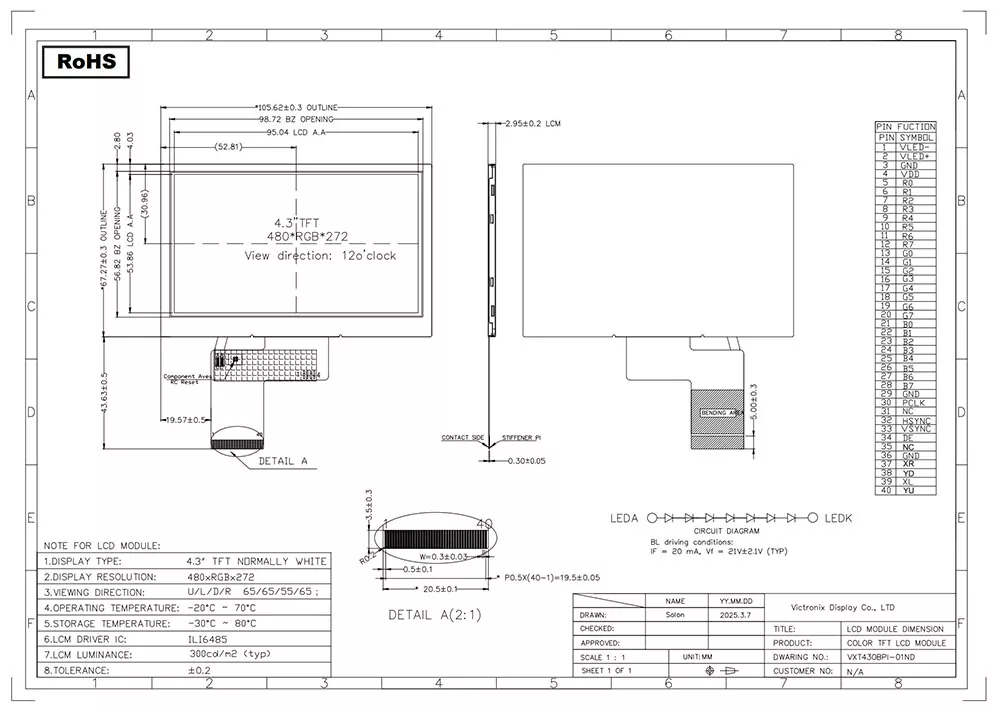

Outline Drawing
