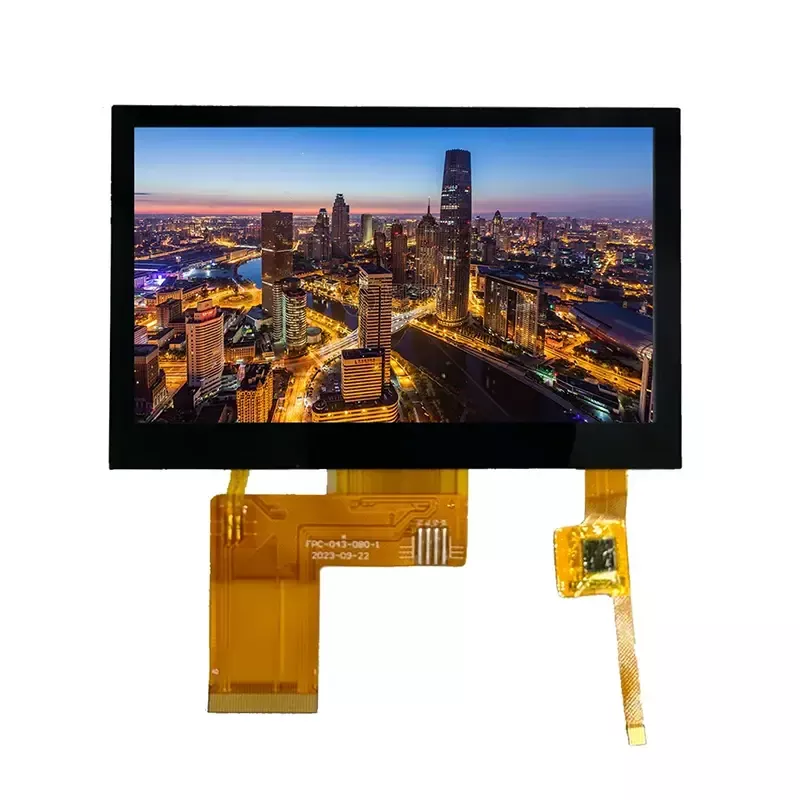

4.3 inch Capacitive Touch 480x272 TFT Module

In the age of intelligence, TFT MODULE helps us to present the required data in the form of images. The quality of the TFT module has a critical impact on its application. What are the advantages of the Victronix 4.3 inch Capacitive Touch 480x272 TFT Module? At first, it provides customers with a premium display with a 480×272 resolution with 16.7M colors, 80° viewing angle (all directions), 400 cd/m² typical brightness, and 1000:1 contrast ratio. Secondly, it passes rigorous reliability tests (thermal cycling, humidity, HALT) to operate in extreme temperatures from -20°C to +70°C. Besides, it not only utilizes the ILI6485D driver IC with a standard 24-bit RGB parallel interface but also has an LED backlight rated for 50,000 hours to 50% initial brightness (typical). These make it more suitable for harsh industrial and outdoor settings. In addition, its integrated capacitive touch screen (ST1633i controller) supports 5-finger operation, with surface hardness ≥ 7H, transparency ≥ 85%, and reliable accuracy (center: ± 1.5 mm/edge: ± 2.5mm).

This Victronix 4.3 inch TFT module is widely used in industrial controls, medical devices, test equipment, and any application requiring a compact, reliable display with responsive touch capability in challenging environments.

General Specifications

VXT430MPIA-03C is a TFT-LCD module. It is composed of a TFT-LCD panel, driver IC, FPC,a back light and CTP unit. The 4.3¢¢ display area contains 480x272 pixels and can display up to 16.7M colors. This product accords with RoHS environmental criterion.

Note1：Color tune is slightly changed by temperature and driving voltage.

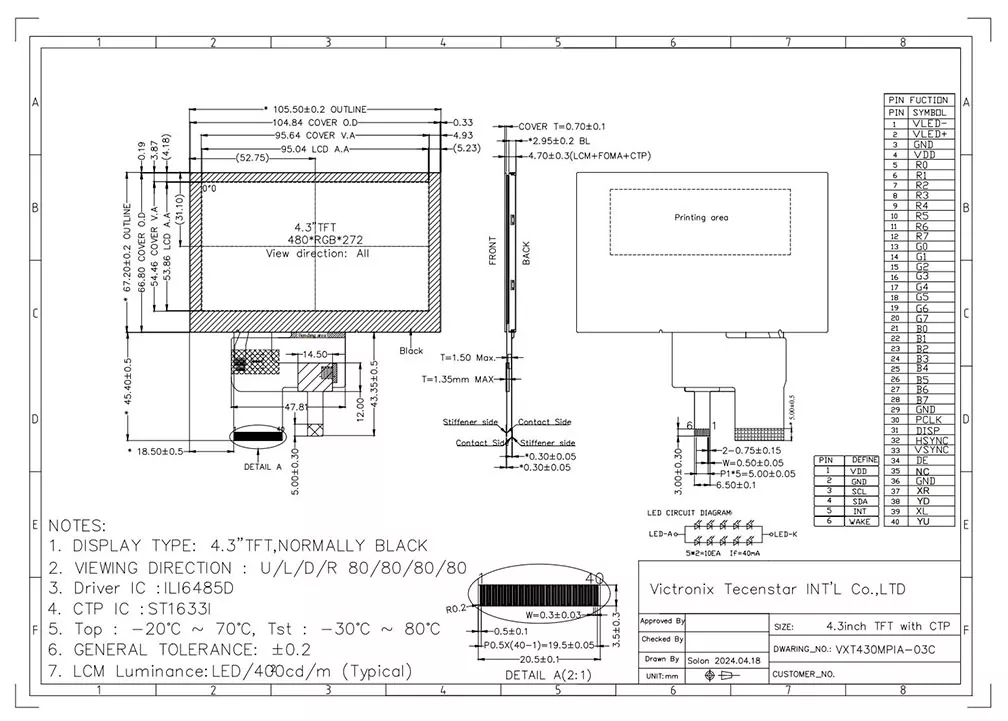

Outline Drawing
