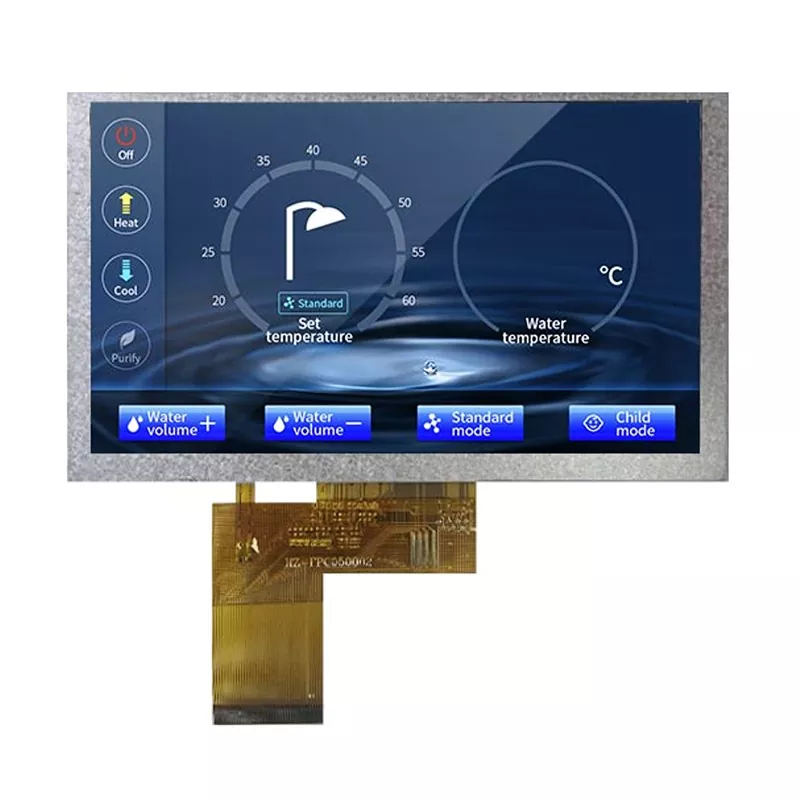

5 inch 800x480 TFT Module
  • 5 inch 800x480 TFT Module5 inch 800x480 TFT Module

5 inch 800x480 TFT Module

Victronix is a professional TFT module manufacturer and supplier based in China. With 18 years of experience in this field, we have developed a variety of models. In addition to our standard products, we also offer customized services to meet our customers' specific needs. This Victronix 5 inch 800x480 TFT Module is a high-quality 5 inch TFT LCD module engineered by Victronix Tecenstar for industrial, medical, and embedded systems. Featuring an 800×480 resolution, 16.7M color depth, and RGB 24-bit interface, it delivers sharp visuals with wide viewing angles. Designed to withstand harsh environments, this module combines optical excellence with military-grade durability.

Model:VXT500QWH-05

Send Inquiry    PDF DownLoad

Product Description

TFT Module can be found everywhere in life. What makes this Victronix 5 inch 800×480 TFT Module different from other manufacturers? At first, its 1000 cd/m² brightness, 500:1 contrast ratio, and viewing angles of 65° (3/9/12 o’clock), 55° (6 o’clock) ensure vivid imagery. Secondly, the device supports a 40-pin RGB Interface with HSYNC, VSYNC, CLK, and DEN control signals. Additionally, it features a 20 white LEDs backlight with a lifespan of 30,000 to 50,000 hours, ensuring reliable performance in various industrial applications. Besides, it meets RoHS standards and passes rigorous reliability tests (thermal shock, humidity, storage) to operate flawlessly in extreme temperatures (-20°C to +70°C) and withstand harsh storage conditions (-30°C to +80°C).

This Victronix 5 inch TFT Module is suitable for Medical monitors, Industrial HMI panels, Automotive dashboards, and Portable instrumentation.





Moreover, the 5 inch 800x480 TFT LCD is also a great choice for commercial applications. It is durable and reliable, making it suitable for use in harsh environments. Whether you're designing a new door phone or a digital signage system, this display can offer the high-quality visuals needed to attract customers and convey important information.

ltem Contents Unit Note
LCD  Type TFT -
Display color 16.7M
Viewing Direction 12  O'Clock
Gray scale inversion direction O'Clock
Operating temperature -20~+70
Storage temperature -30~+80
Module size Refer to outline drawing mm

Active Area(W×H)
108X64.8
mm
Number of Dots 800×480 dots
LCM Controller ILI6122+IL15960 -

CTP Controller

-

-
Power Supply Voltage 3.3  V
Outline Dimensions Refer to outline
drawing
-
Backlight 10S2P=20PCS LEDS (white) PCS
Weight
---
g
Interface RGB-24Bit -


Note 1:Color tune is slightly changed by temperature and driving voltage.

Note 2:Without FPC and Solder.

5 inch 800x480 TFT Module
