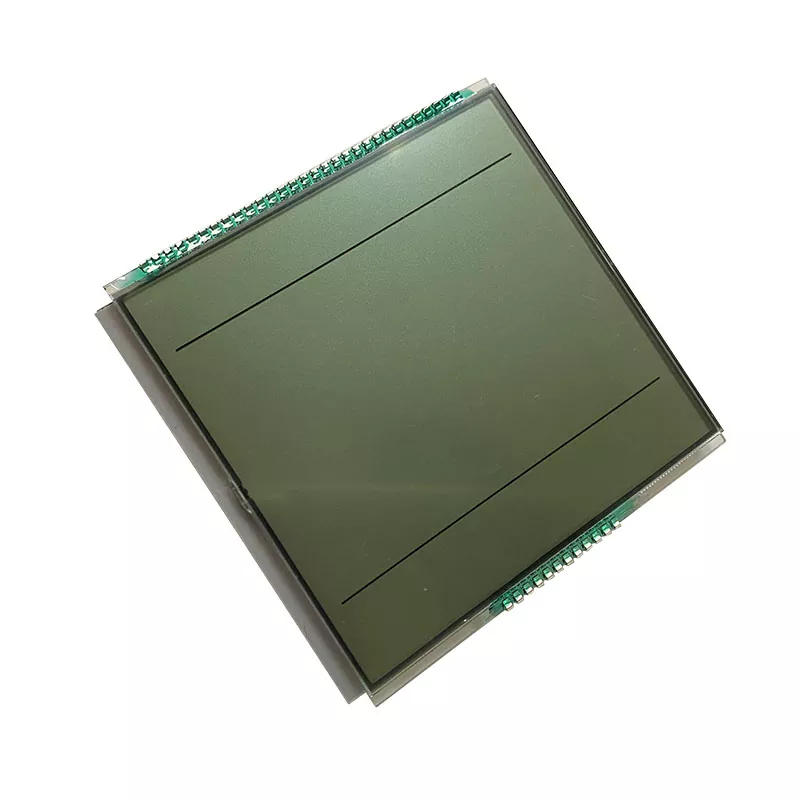

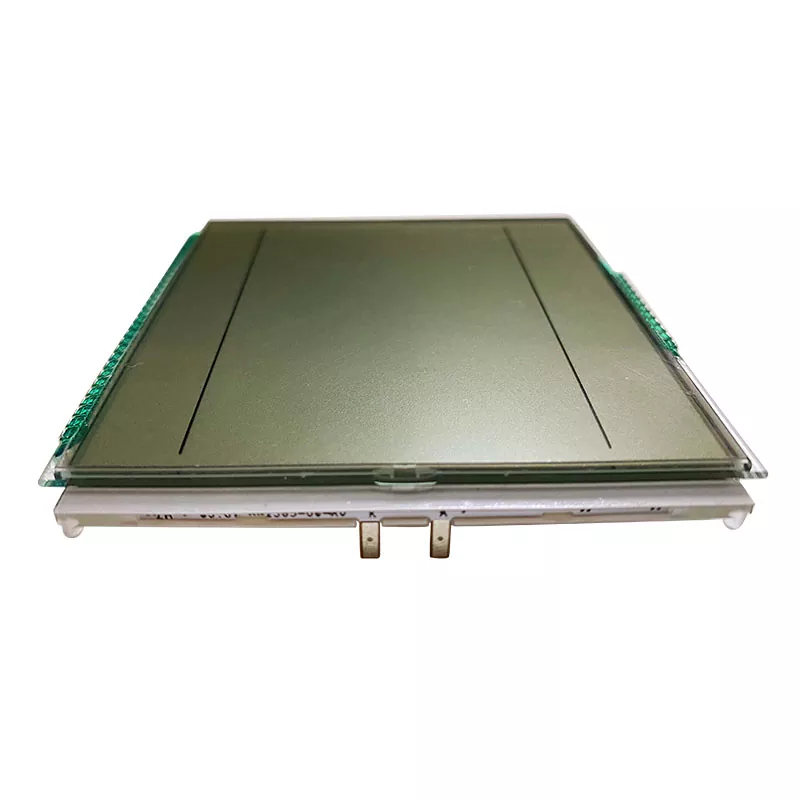

Replace HTN Segment Varitronix LCD Module - VX69868-CN036MZ

This Victronix Replace HTN Segment Varitronix LCD Module is a high-performance monochrome dot-matrix Liquid Crystal Display (LCM) module for industrial and embedded applications. Featuring a transflective HTN (High-Twist Nematic) panel with a positive display and optimal 6 o’clock viewing direction, this module delivers clear visibility across diverse lighting conditions.

Model:VX69868-CN036MZ

Send Inquiry PDF DownLoad

Product Description

General Information

Item	Value
Model	VX69868-CN036MZ
Type	Dot-matrix monochrome LCM
Display type	HTN
Polarity / mode	Positive / Transflective
Viewing direction	6 o'clock
Driving method	1/4 D, 1/3 B
Assembly	PIN + BL
Operating temperature	−20 to +70 °C
Storage temperature	−30 to +80 °C
Outline	74.54 × 73.26 × 4.8 mm — not including FPC; drawing 4.80 ± 0.20
Viewing area	67.54 × 65.26 mm — 44.08 cm²
Bezel	3.50 mm L/R, 4.00 mm T/B
Viewing-area diagonal	93.916 mm = 3.6972 inch (derived)
Outline diagonal	104.51 mm = 4.1142 inch (derived)
Display matrix	4 COM × 26 SEG = 101 segments
Touch pads	6 — TP1 to TP6, each on two pins, with a NC separator between pads
VDD	Not stated — blank in both tables
LCD drive, V0 − XV0	5.0 V — drawing VOP = 5.0 V
VIH / VIL	0.8 VDD to VDD / VSS to 0.2 VDD
VOH / VOL	0.8 VDD to VDD / VSS to 0.2 VDD
Backlight	White, 100 mA, 3.0 V
Backlight brightness	900 min / 1400 typ cd/m²
Backlight uniformity	75% min — Δ = min Lv ÷ max Lv × 100%
Backlight CIE	0.28 / 0.27 typ (0.25–0.31, 0.24–0.30)
Backlight power	0.30 W (derived) — PD row blank
LED absolute max	Ifm 100 mA — equals the operating current; Vr 5.0 V; IR 10 µA max
Response	Tr 70 ms / Tf 70 ms typical
Viewing angle	45 / 45 / 40 / 15 at Φ = 0 / 180 / 270 / 90, Cr ≥ 2
Luminance uniformity	70 min / 80 typ %
CIE with LCD	x 0.232 / 0.292 / 0.352, y 0.273 / 0.333 / 0.393

Where It Gets Used

Programmable room thermostats — the weekday bar, AUTO / ON / OFF and the seven-day programme state are exactly this display's content.
HVAC and air-conditioning wall controllers — transflective reads in a sunlit corridor without the backlight.
Energy meters and sub-meters — the kWh counter with seven digits and two colons.
Power and consumption monitors — a cumulative reading plus a clock plus a date.
Indoor air quality and humidity displays — the %RH legend and the icon bank.
Building management and BMS room panels — 101 segments is enough for energy, time, date, humidity and programme state at once.
Appliance control panels — washers, dryers, boilers and heat pumps with a seven-day timer.
Timers and programmable switches — a clock, a date and a weekday programme.
Instrument panels needing daylight readability without backlight power — transflective is the whole argument.
Battery-powered or energy-harvesting controllers — 0.30 W of backlight that can be left off in daylight.

Outline Drawing

VX69868-CN036MZ HTN Segment lcd – air conditioner switch
