Segment Mono HTN LCD Module 26.3 x 36.4 mm 1/4 Duty 1/3 Bias Blue Backlight - VX50350-TY012LA

This Victronix Segment LCD Module is a high-performance monochrome dot matrix Liquid Crystal Display Module (LCM) designed by VICTRONIX for reliable embedded applications. Featuring a transmissive HTN (High-Twist Nematic) display with positive image and 6 o’clock viewing direction, this module delivers clear visuals in a compact form factor. Integrated with a blue LED backlight (VF=3.1V±0.2V, IF=30mA), it ensures excellent readability in diverse lighting conditions. As a professional manufacturer and supplier of TFT modules in China, Victronix VA Segment LCD Module is fully compliant with ROHS environmental standards, ensuring superior application performance. We offer a customized service to meet the needs of our customers.

Model:VX50350-TY012LA

Send Inquiry PDF DownLoad

Rating: 5.0

(Rating Count: 1)

Product Description

General Information

Item	Value
Model	VX50350-TY012LA, Ver A
Type	Segment mono LCM
Display type	HTN, Positive, Transmissive

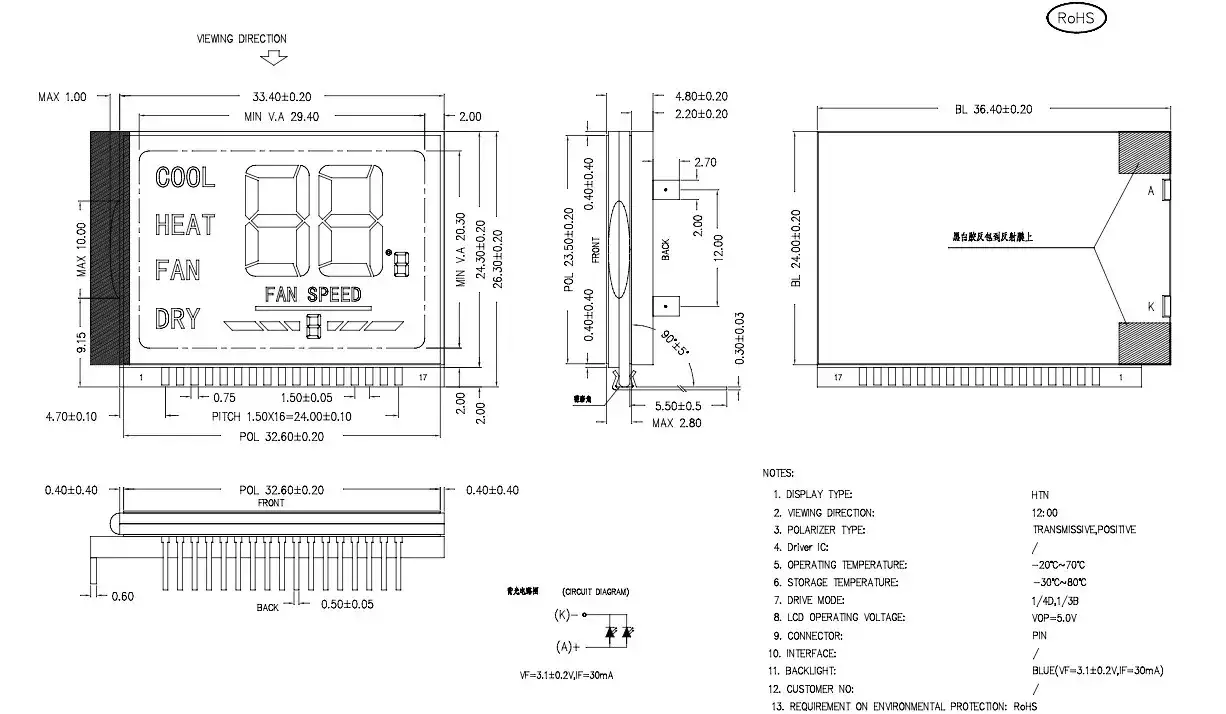

Viewing direction	12 o'clock — confirmed on the drawing
Driving method	1/4 duty, 1/3 bias — confirmed on the drawing
Assembly type	PIN — metal pins, not FPC
Pin pitch	1.50 mm over a 24.00 ± 0.10 mm span
Operating temperature	−20 to +70 °C
Storage temperature	−30 to +80 °C
Outline	26.3 × 36.4 × 4.8 mm — FPC not included; 4.80 ± 0.20 confirmed on the drawing
Viewing area	29.4 × 20.3 mm — as printed it cannot fit; see the geometry section
LCD operating voltage	VOP 5.0 V — from the drawing; the table row is blank
Backlight colour	BLUE per three places, WHITE per one
Backlight brightness	276 min / 298 typ / 320 max cd/m²
Backlight Vf	2.9 / 3.1 / 3.3 V at 30 mA
Backlight If	30 mA; absolute maximum 60 mA
Backlight power	93 mW derived at the operating point; 192 mW rating
Luminance uniformity	70% min / 80% typ
Response	Tr 70 ms typ; Tf 70 ms typ — stated separately
Viewing angle	15° / 40° / 45° / 45° at Φ = 90 / 270 / 0 / 180°
CIE	x 0.232 / 0.292 / 0.352; y 0.273 / 0.333 / 0.393 — with min/typ/max
Thermal shock	−40 ↔ +85 °C

Where It Gets Used

Air conditioner wall controllers — the drawing's COOL, HEAT, FAN, FAN SPEED, DRY and TIMER legends are this product.
Central air conditioning and fan coil unit thermostats — mode, fan speed and a clock on one panel.
Dehumidifier and humidity controller panels — DRY and a humidity readout.
Fan speed controllers and ventilator panels.Heat pump and HVAC zone controllers.
Timer and programmable switch panels — TIMER and 12:00 are on the drawing.
Appliance control panels generally — white goods, air treatment, water heaters.
Thermostats and temperature controllers with fixed icons rather than a graphic display.
Instrument and meter panels where a fixed set of digits and icons is all that is needed.
Cost-sensitive, higher-volume products — a pin-type segment module with no controller is the lowest-cost display class there is.
