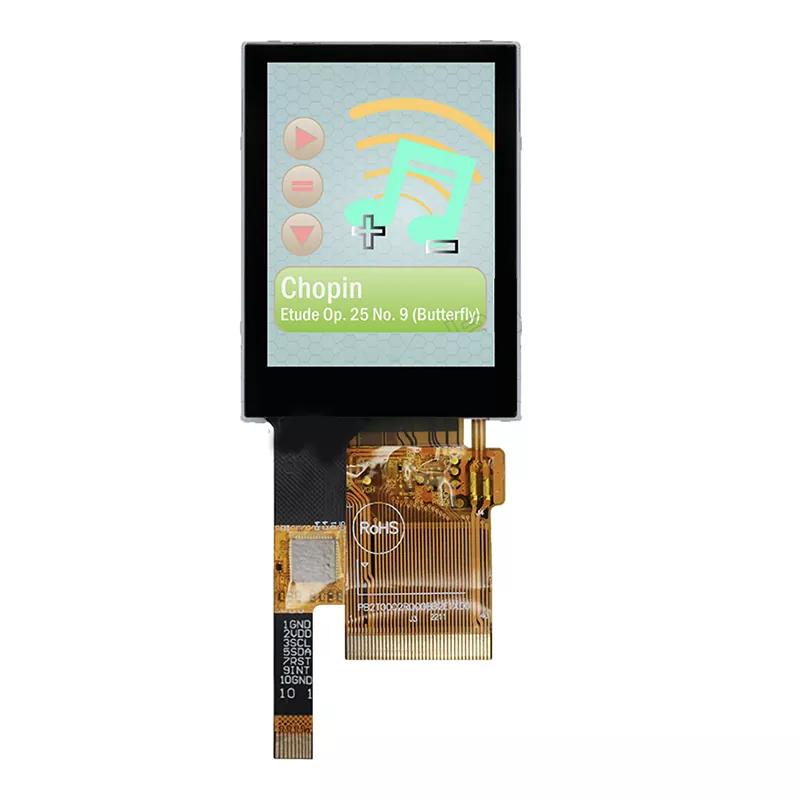

2.2 Inch 240x320 Portrait TFT LCD Module with Capacitive Touch 18-Bit RGB/MCU/SPI - VXT220BQS-04C1

Where It Gets Used

• Handheld and portable field instruments — 180 PPI on a 2.2-inch screen keeps fine type legible, and 150 KB fits a microcontroller with no external RAM.
• Industrial HMI and machine control panels — a 6H cover surface and a 20.35 J shock rating, at a fixed mounting orientation.
• Medical devices and portable monitors — a glass front that can be wiped down, and a sealed cover-lens construction.
• Point-of-sale and payment terminals — a 4:3 portrait column for a list or a receipt view, with touch.
• Test and measurement equipment — square pixels keep scales, traces and dial graphics true.
• Kiosk, vending and ticketing terminals — indoor, and a hardened cover surface for public use.
• Access control, intercom and door panels — a vertical interface in a narrow cut-out, with a capacitive key panel.
• Smart home control panels — wall-mounted at a known height, so the 6 o'clock direction is under your control.
• Microcontroller and application-processor projects — an 8080 bus, an SPI port with read-back, or an 18-bit RGB path, all on one connector.
• Products that animate or stream full-screen content — FMARK lets a single-buffered design write tear-free.

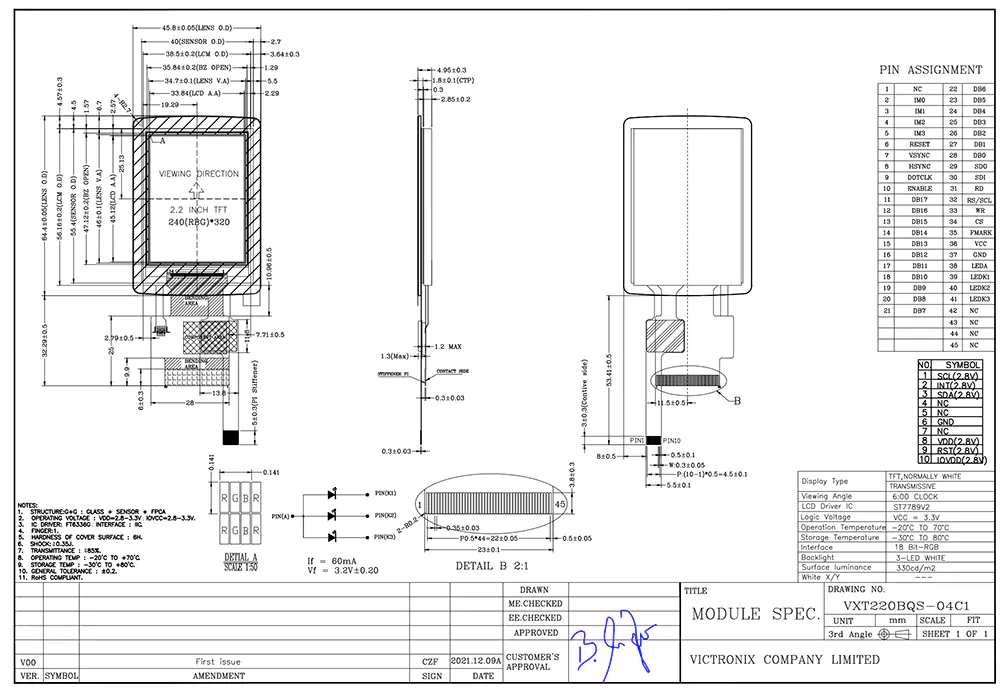

Drawing
