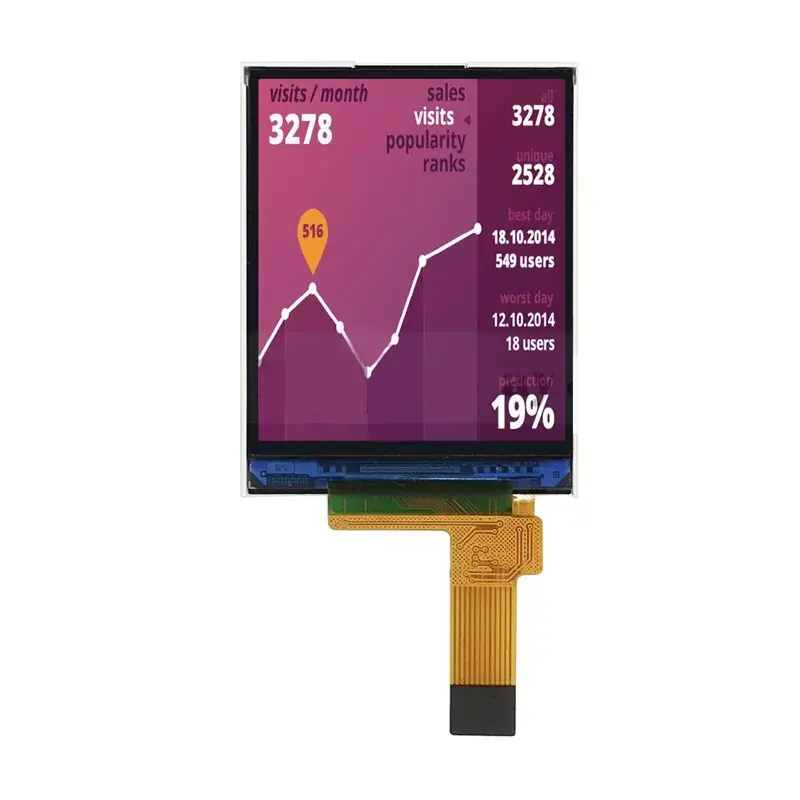

1.77 inch 128x160 TFT Module

VXT177ZHS-04 is one of standard TFT Modules from China LCD and Touch screen factory Victronix. As a factory in China, Victronix has flexible capacity to customize the 1.77 inch 128x160 TFT Module with different appearance and dimension according to customer requirements.

Model:VXT177ZHS-04

Send Inquiry PDF DownLoad

Product Description

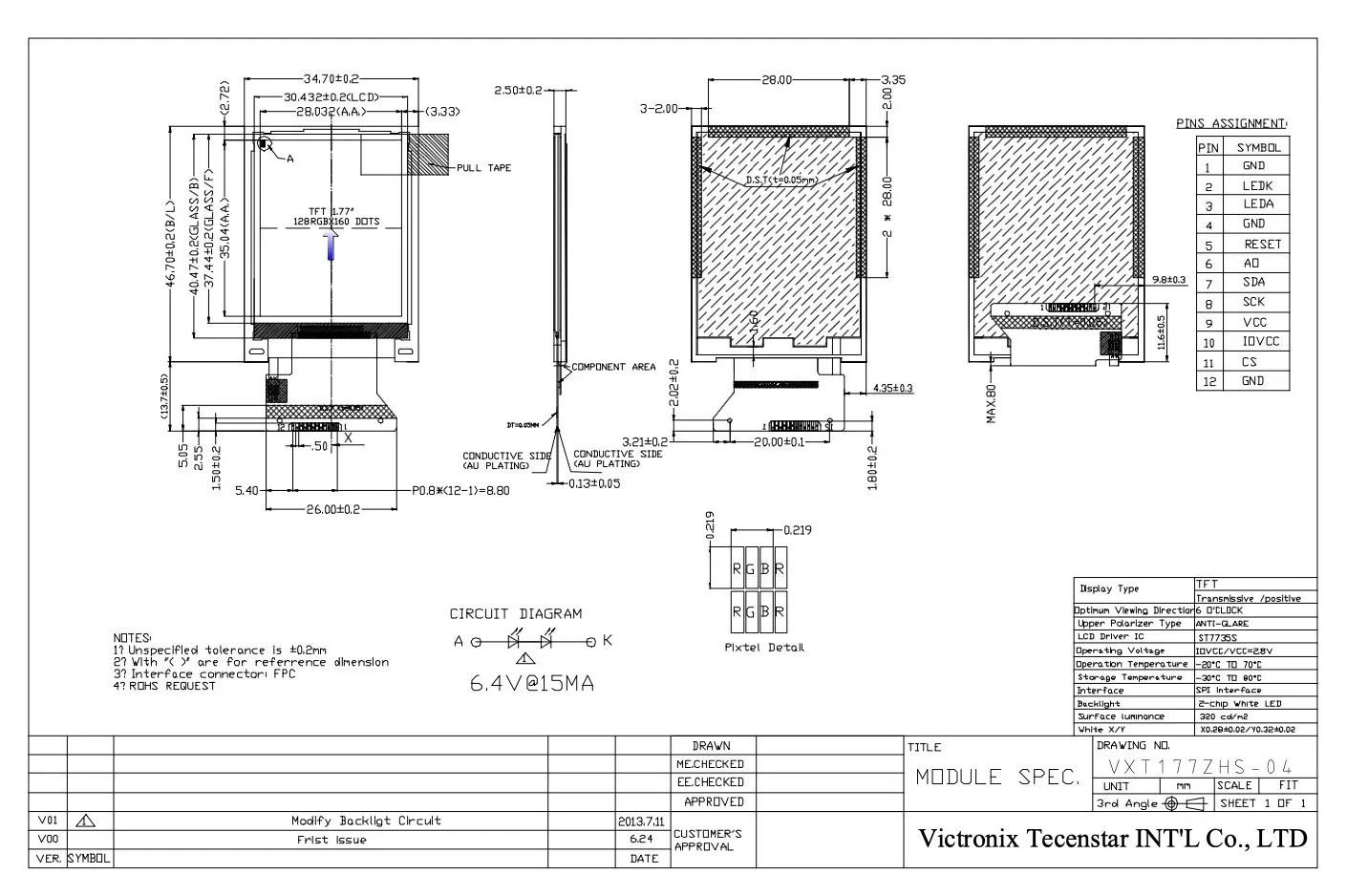

1.77-inch TFT display module, made of resolution 128x160 pixels and 320 cd/m2 brightness. This LCD module is built in with ST7735S IC; it supports MCU or SPI interface. This model has a module dimension of 34.70 x 46.70 mm and an Active Area of 28.03 x 35.04 mm; its supply voltage ranges from 2.5V to 3.3V (typical value: 2.8V).

This LCD is a portrait mode with a 6 o'clock viewing direction and a 12 o'clock gray scale inversion direction. Its operating temperatures cover from -20℃ to +70℃, and the storage temperatures are from -30℃ to +80℃.

This 1.77 inch 128x160 TFT Module is suitable for use in smart wear, smart watches, household appliances, toys, medical treatment, etc.1
