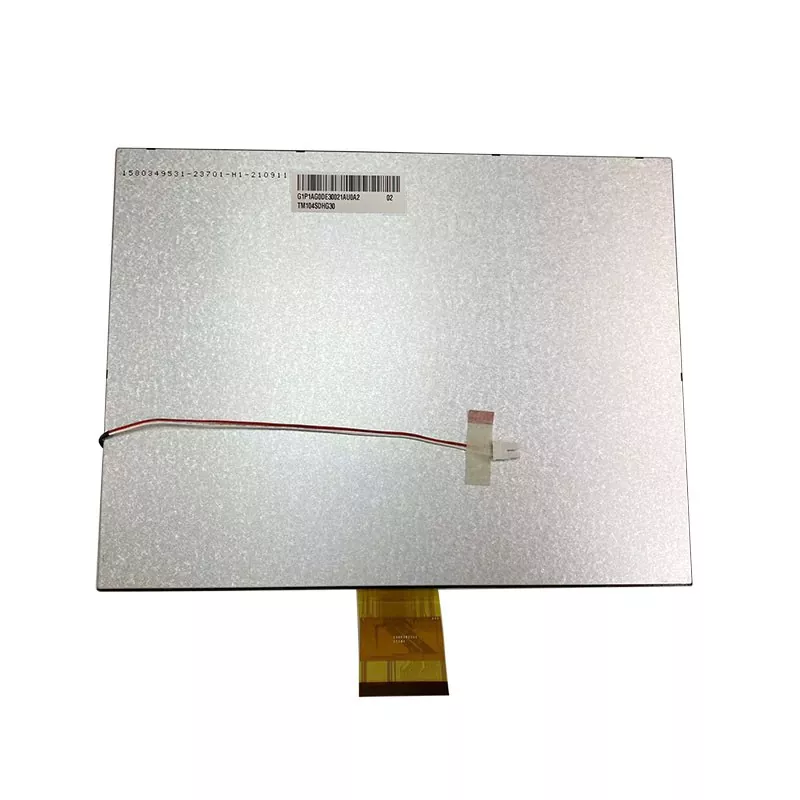

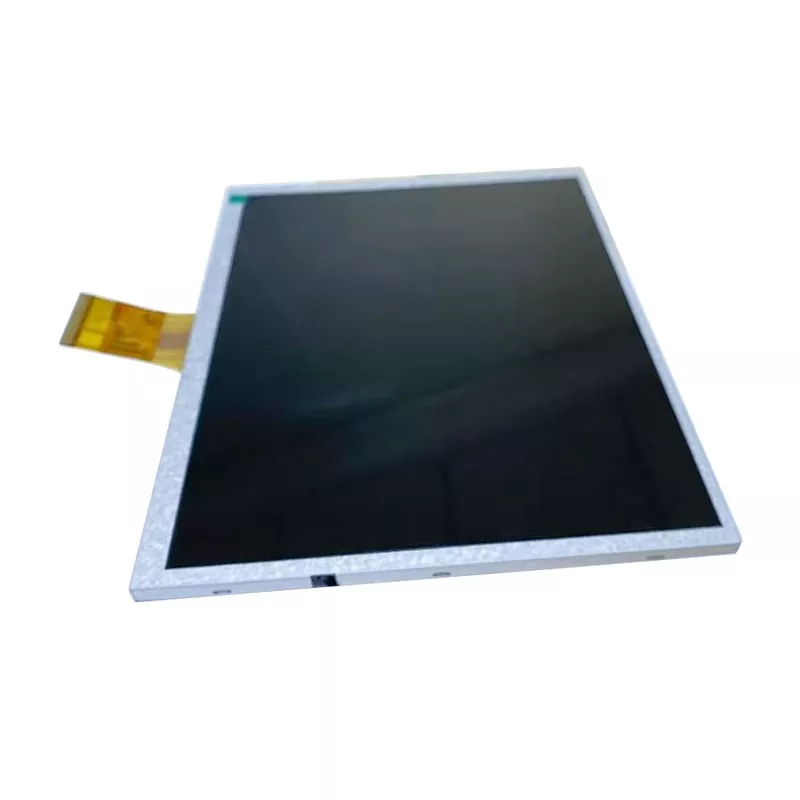

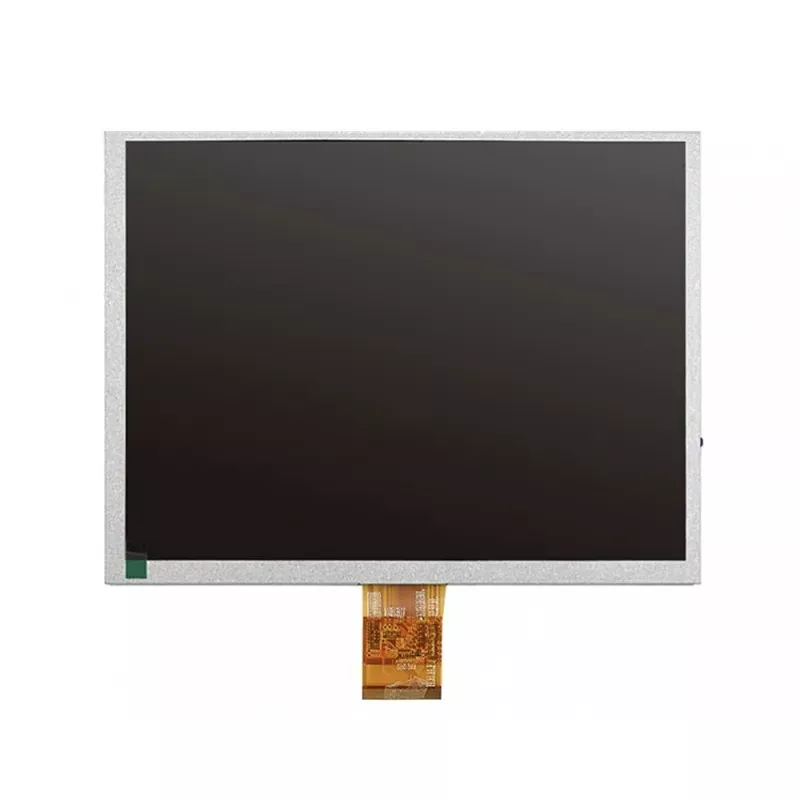

10.4 Inch 800x600 SVGA TFT LCD Module TTL 24-Bit - TM104SDHG30

The TM104SDHG30 is a high-performance 10.4-inch industrial TFT LCD module from Shanghai Tianma Micro-Electronics. Designed for reliability and clarity, this SVGA-resolution display features a 24-bit RGB interface, wide viewing angles, and robust environmental compliance—making it ideal for medical, industrial, and embedded applications. As a professional manufacturer and supplier of TFT modules in China, this Original Tianma 10.4 inch TFT Module is fully compliant with ROHS environmental standards, ensuring superior application performance. We offer a customized service to meet the needs of our customers.

Model:TM104SDHG30

Send Inquiry PDF DownLoad

Rating: 5.0

(Rating Count: 1)

Product Description

General Information

Item	Value
Model	TM104SDHG30
Manufacturer	Shanghai Tianma Micro-electronics
LCD type	a-Si TFT, TM with Normally White
Size	10.4 inch
Active area	211.20 × 158.40 mm — 334.5 cm²
Pixel pitch	0.264 × 0.264 mm — exactly square
Active aspect	1.333333 — matches the dot matrix exactly
Resolution	800 × 600 (SVGA)
Module size	228.40 × 175.40 × 6.20 mm
Weight	360 g (±5%)
Interface	TTL 24-bit RGB — R0–R7, G0–G7, B0–G7
Colour depth	16.7M
Driver IC	HX8282 ×1, HX8696 ×1
Sync modes	Both — MODE pin 32: H = DE, L = HV sync; DE required in both
DITH	Pin 42 — H = 6-bit input, L = 8-bit input
Surface treatment	Anti-Glare (3H)
Viewing direction	12 o'clock — with Note 1's 180° shift; bottom angle is wider
Grey scale inversion	6 o'clock
Connector CN1	Hirose FH28-60S-0.5SH — 60 pins, 0.5 mm pitch
Connector CN2	JST BHSR-02VS-1 — 2 pins, backlight
Power consumption	176 mW stated — conflicts with the per-rail sum of ≈ 431 mW
Brightness	280 min / 350 typ cd/m²
Contrast	400 min / 500 typ
Response	TON 10 typ / 15 max ms; TOFF 15 typ / 25 max ms — separated
Viewing angle	θT 50/60, θB 60/70, θL 60/70, θR 60/70 at CR ≥ 10
Uniformity	75 min / 80 typ % — Lmin/Lmax
NTSC	45 min / 50 typ % — minimum defined in rev 1.6
CIE 1931	All eight with min/typ/max — W 0.309/0.334, R 0.599/0.345, G 0.328/0.548, B 0.152/0.097
Backlight	12 channels × 20 mA = 240 mA at 9.6 V
Backlight power	2.304 W
Backlight life	30,000 h typical
Packing	20 pcs per carton, total 9.83 ± 5% kg
Operating temperature	−20 to +70 °C
Storage temperature	−30 to +80 °C

Where It Gets Used

Industrial HMI and machine control panels — 800 × 600 over a 24-bit TTL bus, the classic industrial format.
Industrial panel PCs and operator stations — a 10.4-inch SVGA panel with a final, settled specification.
Medical monitors and patient monitors — 10.4-inch SVGA is a long-established clinical format; the four optical floors help qualification.
Test and measurement equipment — 480,000 pixels with separated rise and fall times.
Process control and SCADA stations — the humidity derating table suits fixed installations.
Analytical and laboratory instruments — all eight CIE coordinates published for colour-critical work.
Kiosk and information terminals — tight bezels and 83.5 per cent fill factor suit a visible panel.
Retrofits of existing 10.4-inch SVGA equipment — exact 4:3 geometry and a diagonal that matches the nominal size.
