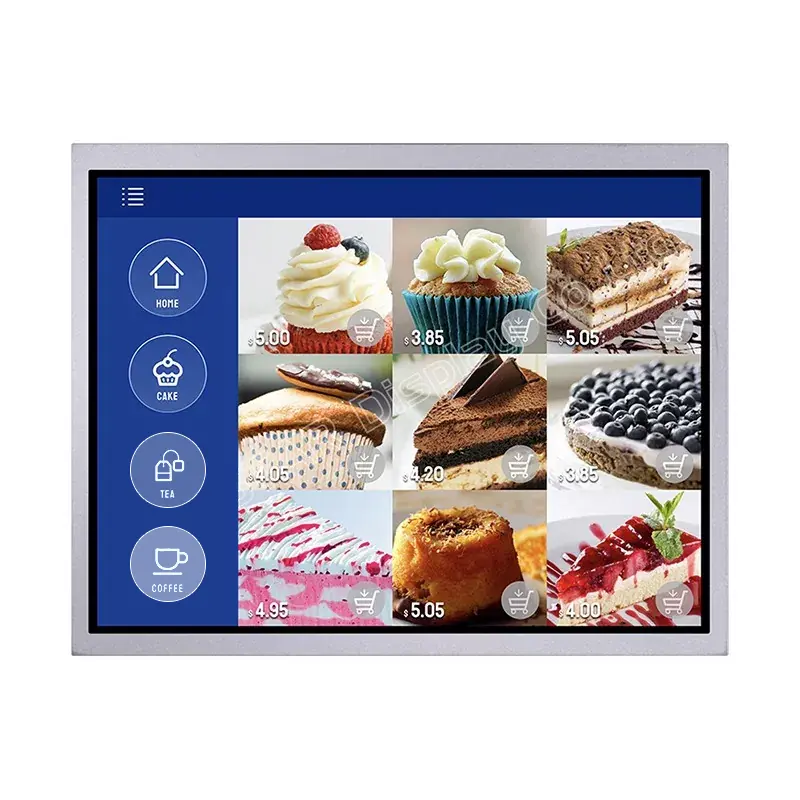

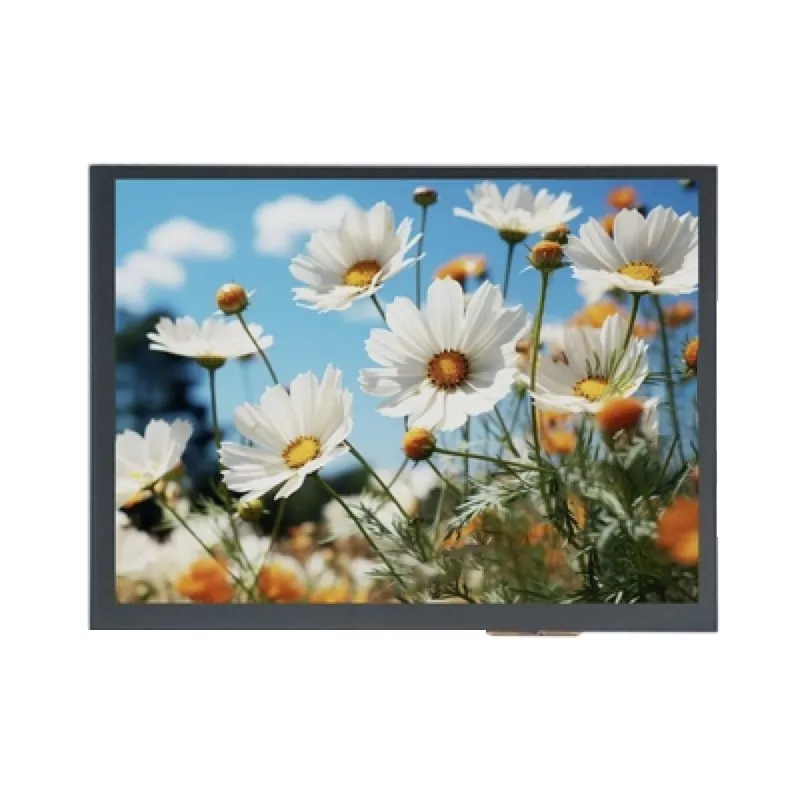

10.4 inch 800x600 RTP TFT Module

In the age of intelligence, the TFT module enables us to present the required data visually. The quality of the TFT module has a critical impact on its application. What are the advantages of the Victronix 10.4 inch 800×600 RTP TFT Module? At first, its 350 cd/m² brightness, wide viewing angles of 65° (3, 9, 12 o'clock) / 55° (6 o'clock), and 60% uniformity ensure vivid imagery. Secondly, it supports an LVDS interface and a 6×6 white LED backlight with a lifetime of 30,000 to 50,000 hours, ensuring its long-term usability in various industrial applications. Besides, it complies with RoHS standards and successfully passes rigorous reliability tests, including thermal shock, humidity, and ESD protection up to 8kV air and 4kV contact. This product operates efficiently in extreme temperatures ranging from -20°C to +70°C and can withstand severe storage conditions from -30°C to +80°C.

This 10.4 inch TFT module from Victronix is designed for industrial control panels, human-machine interfaces (HMIs), medical devices, test and measurement equipment, transportation systems, and any application requiring a reliable, clear, medium-sized color display.

Features:

Outline Size:236 X 176.9mm

Active Area: 212.20X158.40mm

Ratio:4:3

Resolution:800 X 600

Touch Point: Single Point

TFT Interface: LVDS

Surface Hardness:3H

Touch Durability:5 Million Touches

Operation Temperature:-20°C+70°C

Applications

Digital products, POS machine, instrument & meter, automobile electronics, communication machine, medical machine, security machine, household electrical appliances and others

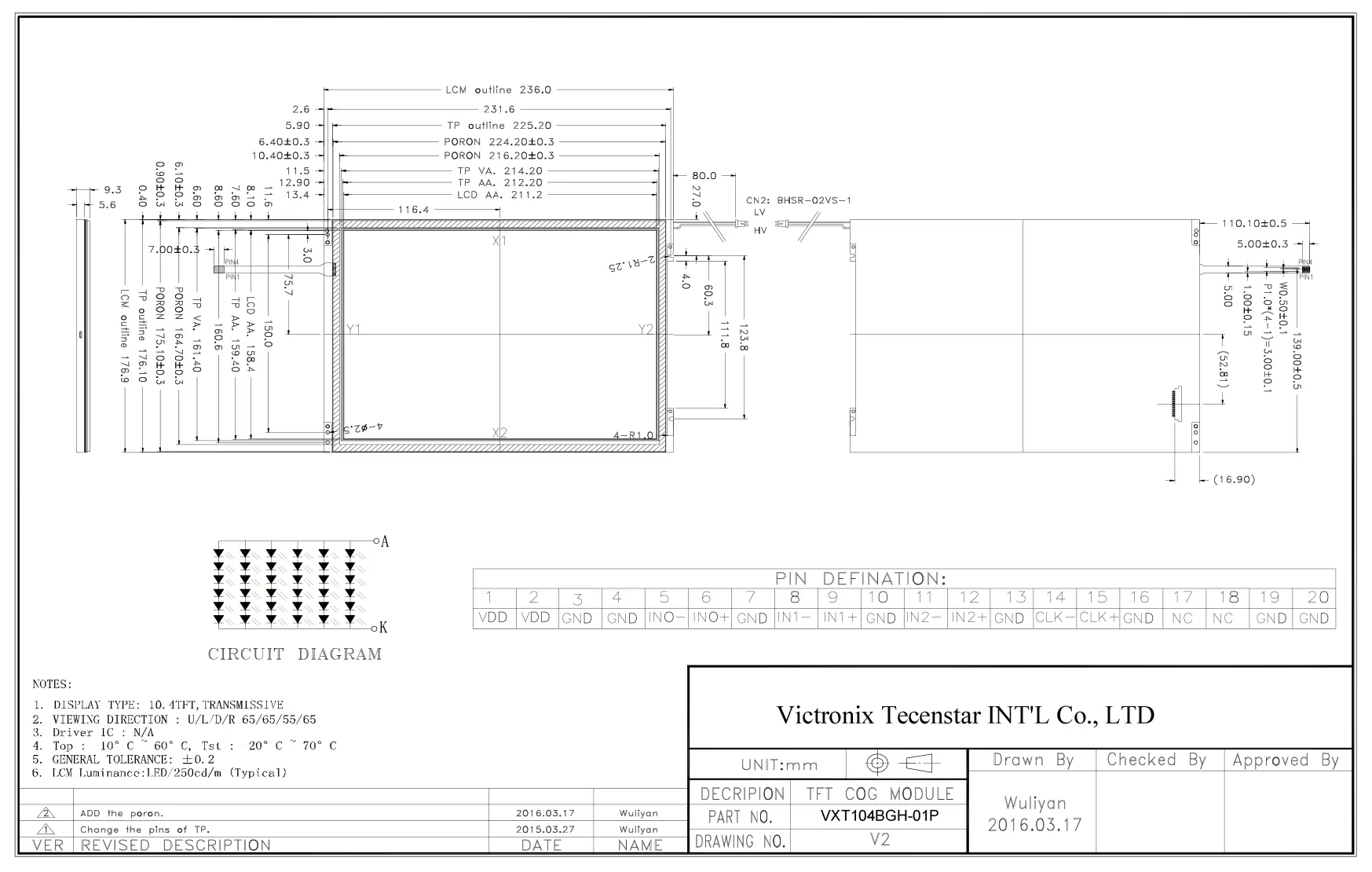

Drawing
