2.4 Inch 240x320 Portrait TFT LCD Module MCU - VXT240HQI-04

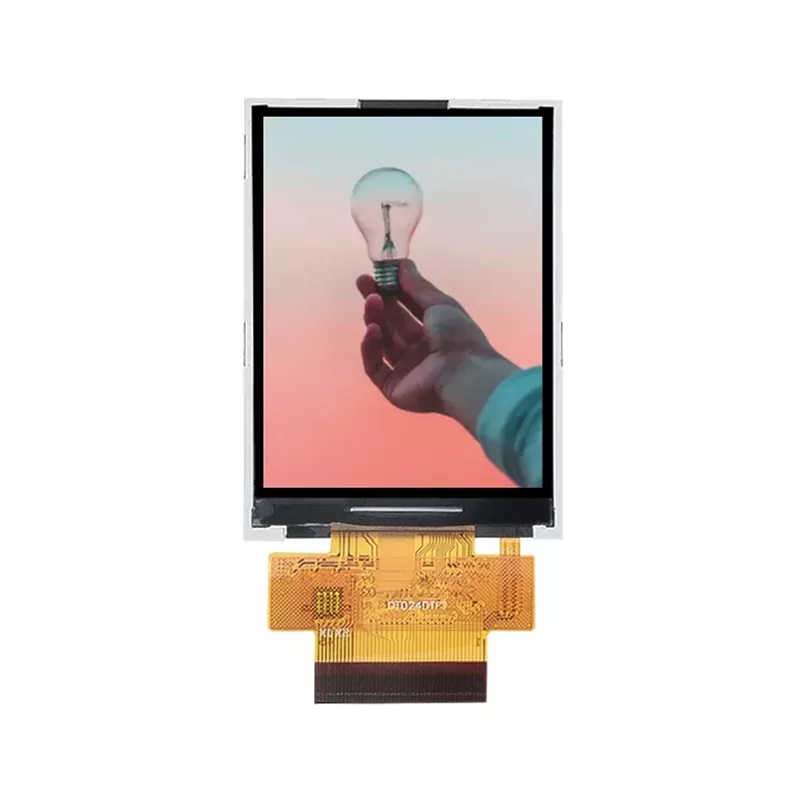

This Victronix 2.4 inch 240x320 IPS TFT Module is a high-quality 2.4 inch TFT LCD module engineered for reliable performance in demanding applications. Featuring an IPS (In-Plane Switching) panel with a resolution of 240×320 pixels, it delivers wide viewing angles (80° horizontal/vertical) and vivid 262K color reproduction. Ideal for industrial controls, medical devices, and portable instruments, this module combines compact dimensions (42.72×60.4×2.2 mm) with robust engineering.
Model:VXT240HQI-04
Send Inquiry PDF DownLoad
Product Description
Where It Gets Used
- Handheld and portable field instruments — 150 KB fits a microcontroller with no external RAM, and 2.20 mm leaves room for a battery.
- Industrial HMI and machine control panels — a free viewing direction means no mounting orientation to get wrong.
- Medical devices and portable monitors — thin, light, and cheap to drive from a small host.
- Point-of-sale and payment terminals — a 4:3 portrait column for a scrolling list or a receipt view.
- Test and measurement equipment — square pixels keep scales, traces and dial graphics true.
- Kiosk, vending and ticketing terminals — indoor, at 300 cd/m² minimum.
- Access control, intercom and door panels — a vertical interface in a narrow cut-out.
General Specification
| Item | Contents | Unit |
| Model |
VXT240HQI-04 |
|
| LCD TYPE | TFT/TRANSMISSIVE | |
| MODULE SIZE(W*H*T) | 42.72x60.4x2.2 | MM |
| ACTIVE SIZE(W*H) | 36.72*48.96 | MM |
| PIXEL PITCH(W*H) | 0.153*0.153 | MM |
| NUMBER OF DOTS | 240*320 | |
| DIVER IC | ILI9341V | |
| INTERFACE TYPE | MCU | |
| TOP POLARIZER TYPE | ANTI-GLARE | |
| RECOMMEND VIEWING DIRECTION | ALL | O'CLOCK |
| GRAY SCALE INVERSION DIRECTION | - | O'CLOCK |
| COLORS | 65K/262K | |
| BACKLIGHT TYPE | 4-DIES WHITELED | |
| TOUCH PANEL TYPE | WITHOUT |

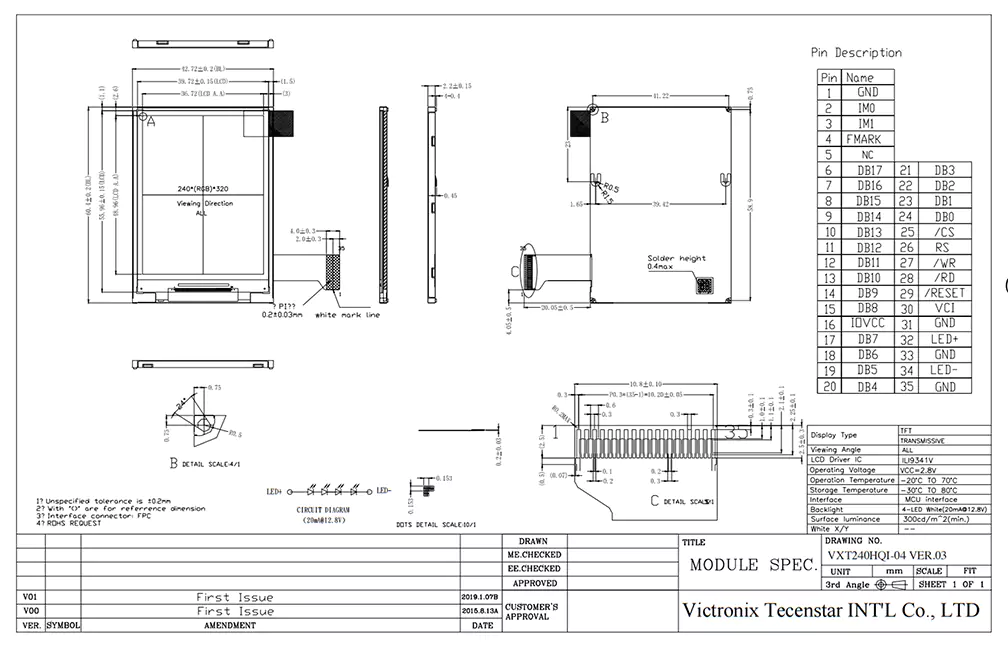

Mechanical Drawing
Hot Tags: 2.4 inch TFT LCD, 240x320 TFT display, portrait TFT LCD module, MCU interface TFT display, 8080 interface TFT display, ILI9341V TFT display, 65K 262K colour TFT display, 166 PPI TFT display, 300 nit minimum TFT display, 640 to 1 contrast TFT display, all viewing angle TFT display, tearing effect output TFT display, 2.2 mm thin TFT module, 4 LEDs in series 12.8 V backlight, ESD 8 kV TFT display, Victronix TFT LCD
