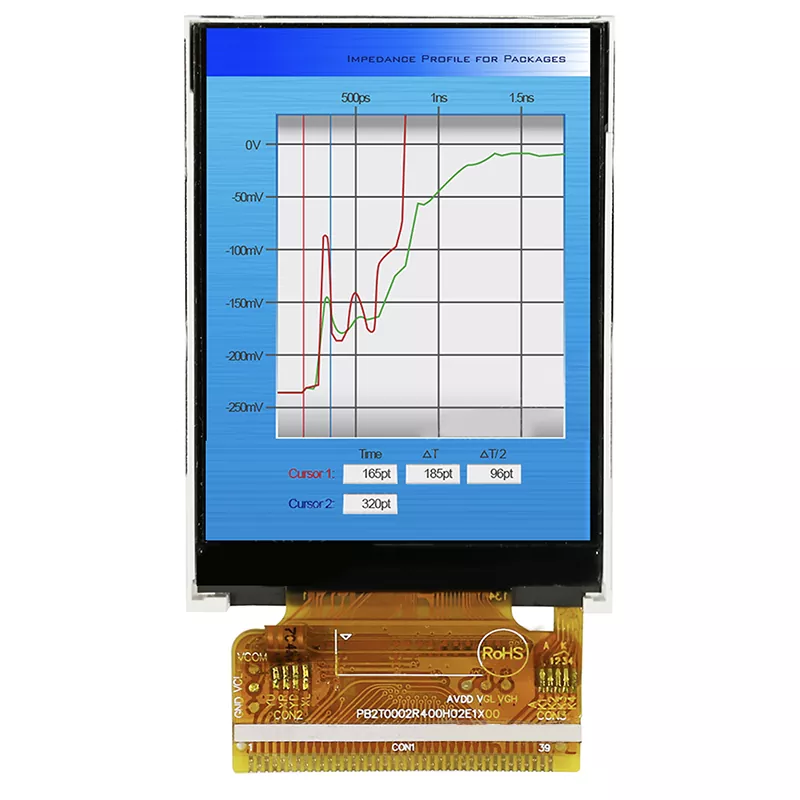

2.4 Inch 240x320 Portrait TFT LCD Module 8-Bit MCU - VXT240CQI-01
This Victronix 2.4 inch 240x320 TFT Module is a high-quality 2.4 inch TFT LCD module engineered for reliability in demanding industrial and embedded systems. Featuring a QVGA-like resolution (240 × 320 pixels) with 65K colors, this transmissive display delivers crisp visuals with an active area of 36.72 × 48.96 mm and a pixel pitch of 0.153 mm. As a professional manufacturer and supplier of TFT modules in China, Victronix 2.4 inch TFT Module is fully compliant with ROHS environmental standards, ensuring superior application performance. We offer a customized service to meet the needs of our customers.
Model:VXT240CQI-01
Send Inquiry PDF DownLoad
Product Description
Where It Gets Used
- Handheld and portable field instruments — 150 KB fits a microcontroller with no external RAM, and 2.20 mm leaves room for a battery.
- Industrial HMI and machine control panels — a free viewing direction means no mounting orientation to get wrong.
- Medical devices and portable monitors — thin, light, and cheap to drive from a small host.
- Point-of-sale and payment terminals — a 4:3 portrait column for a scrolling list or a receipt view.
- Test and measurement equipment — square pixels keep scales, traces and dial graphics true.
- Kiosk, vending and ticketing terminals — indoor, at 300 cd/m² minimum.
- Access control, intercom and door panels — a vertical interface in a narrow cut-out.
Specification of MCU Interface 2.4 TFT SPI 240x320 LCD Module
|
Item |
2.4 inch with 240*320 resolution display |
|
Model No |
VXT240CQI-01 |
|
Resolution |
240*320 |
|
Outline Dimension |
42.72(H)*60.26(W)*2.46(T) |
|
Active Area(mm) |
36.72(H)*48.96(W) |
|
Brightness |
250nits and 700nits |
|
Interface |
8-bits MCU |
|
Viewing Angle |
6 clock |
|
Driving IC |
ILI9341V |
|
Display Mode |
Transmissive/Normally white |
|
Operating Temperature |
-20°~70° |
|
Storage Temperature |
-30°~80° |

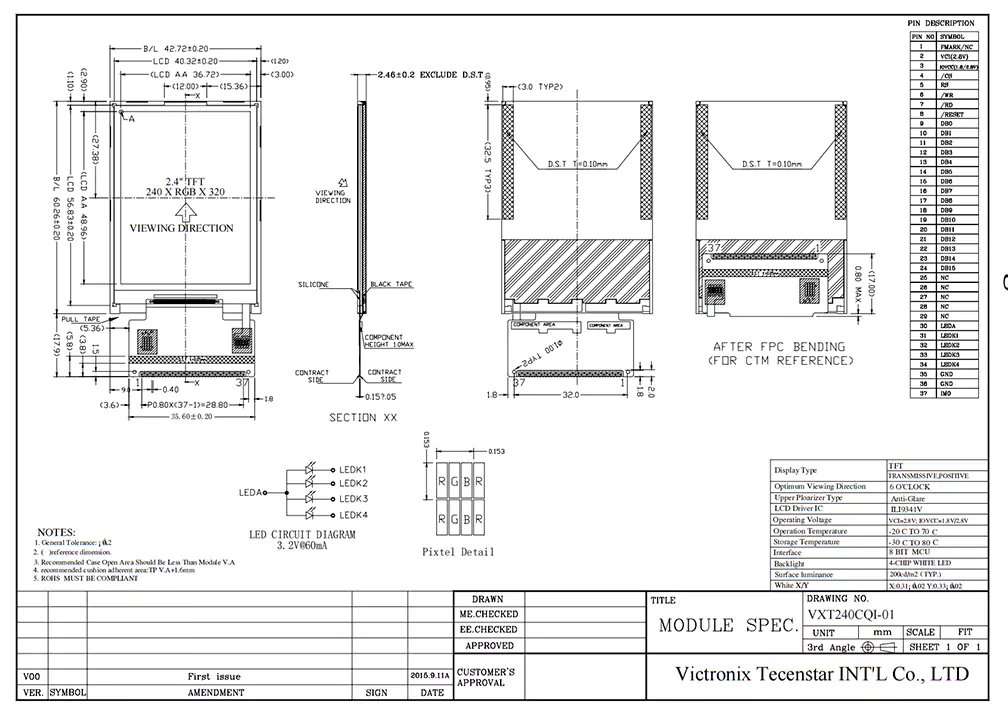

Outline Drawing
