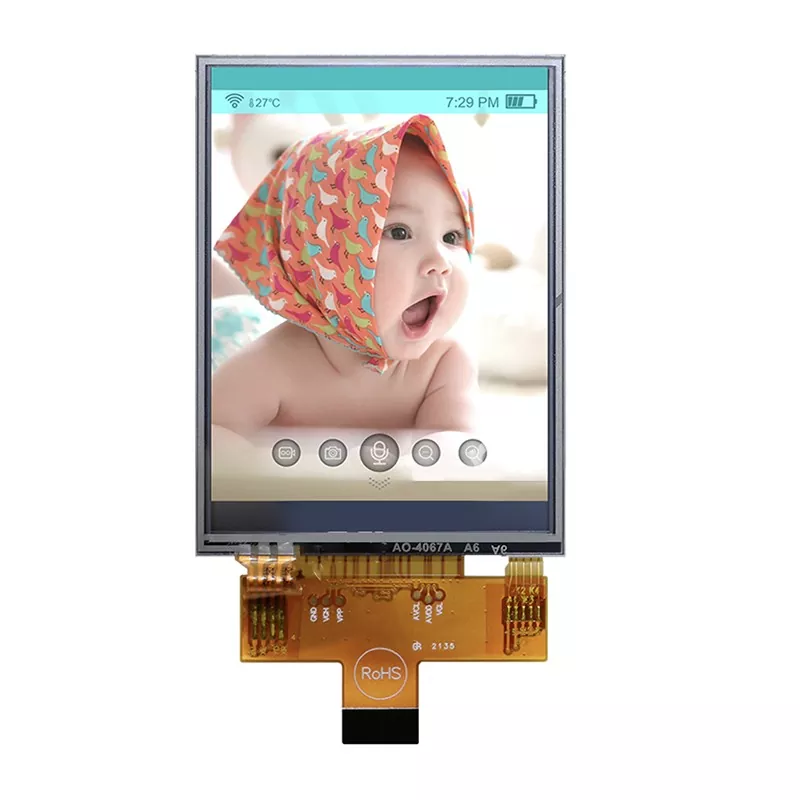

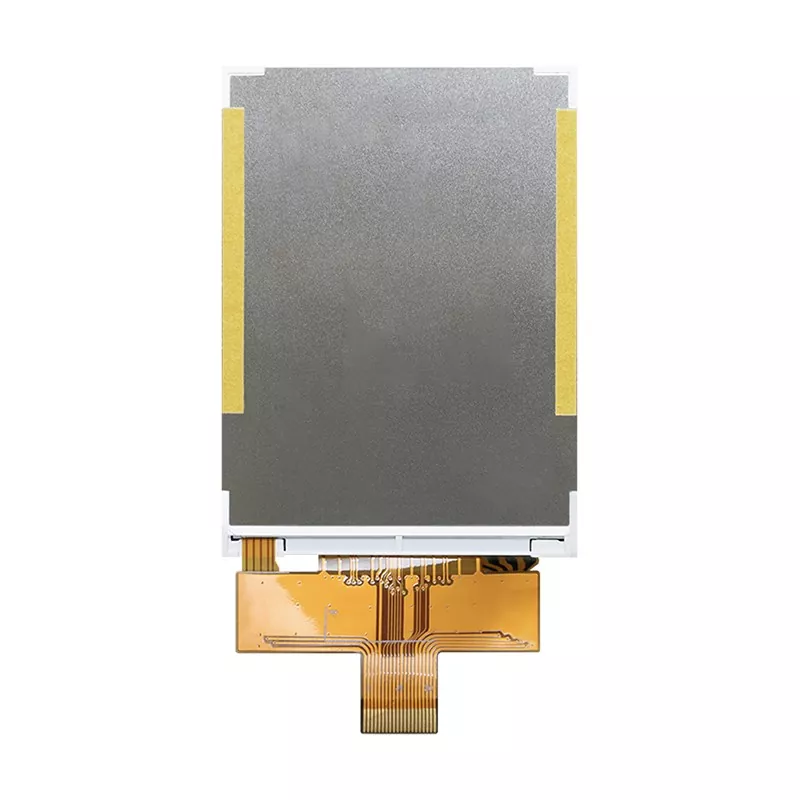

2.8 inch 240x320 Resistive Touch TFT Module

TFT LCD is a type of liquid crystal display that utilizes thin-film transistor technology to enhance image quality, and it has numerous applications in everyday life. As a professional TFT module manufacturer and supplier in China, what makes the Victronix 2.8 inch 240x320 Resistive Touch TFT Module different from other manufacturers? At first, it offers a typical brightness of 200 cd/m² wide viewing angles of 70° horizontal (L/R), 70° up / 60° down (6 o’clock optimal direction), and a contrast ratio of 500:1, ensuring excellent readability from various angles. Secondly, it integrates a backlight unit utilizing 4-die LED with a typical lifetime of 50,000 hours (to 50% initial brightness), ensuring clear visibility in all lighting conditions. Besides, it supports Configurable MCU parallel bus (8/9/16/18-bit) or RGB mode via IM[3:0] pins, ILITEK ILI9341V controller with VSYNC/HSYNC/DOTCLK timing control, and 4-wire resistive touch panel. In addition, it passes rigorous environmental testing, including ESD (±4kV), thermal shock, vibration, and humidity (per IEC/GB standards), ensuring it can operate seamlessly across an extended temperature range (-20°C to +70°C).

This 2.8 inch TFT display by Victronix is commonly utilized in HMI panels, portable medical devices, test instruments, and embedded systems requiring sunlight-readable displays with touch input.

General Specification

Mechanical Drawing
