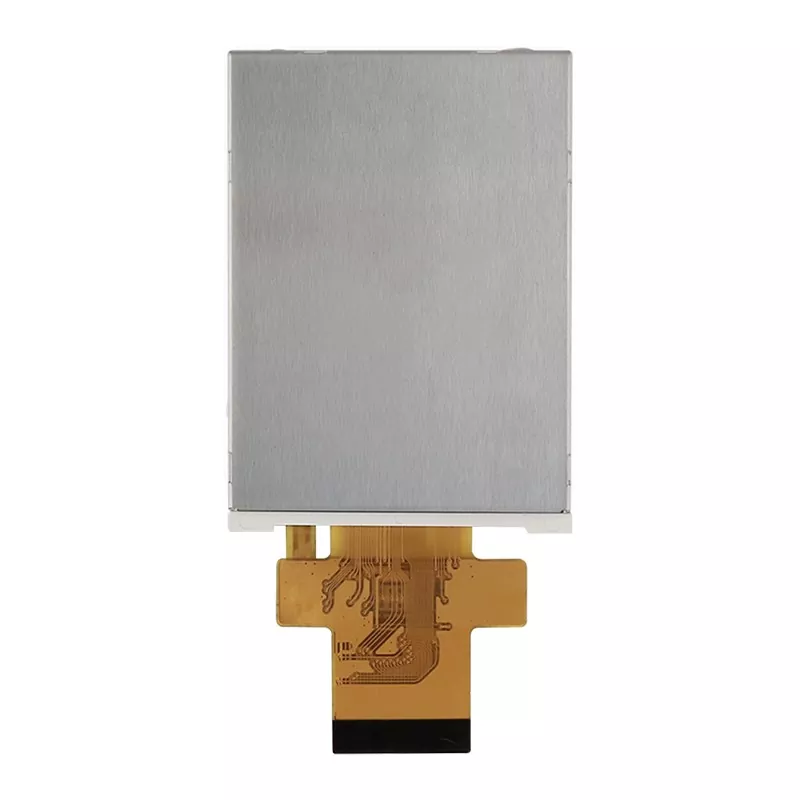

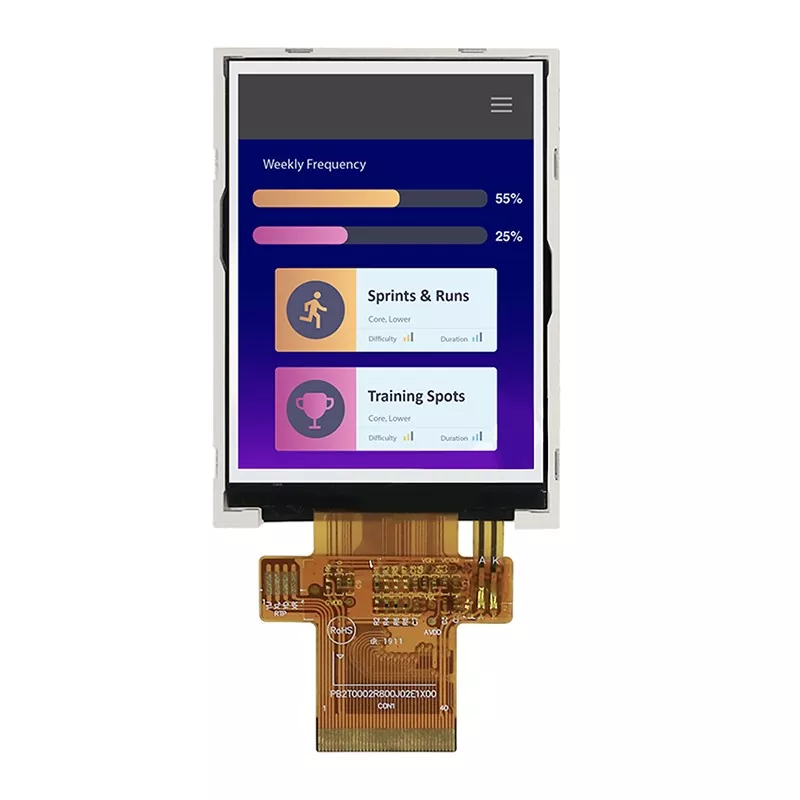

2.8 Inch 240x320 Portrait IPS TFT LCD Module with Resistive Touch MCU/RGB - VXT280BQI-08P

Where It Gets Used

• Handheld and portable field instruments — 150 KB fits a microcontroller with no external RAM, and a free viewing direction means the reading is correct however the user holds it.
• Industrial HMI and machine control panels — glove operation with a resistive panel, and no mounting orientation to get wrong.
• Medical devices and portable monitors — gloved operation, and a surface that can be wiped down.
• Point-of-sale and payment terminals — signature capture with a pen, and a 4:3 portrait column for a list or a receipt.
• Test and measurement equipment — square pixels keep scales, traces and dial graphics true.Kiosk, vending and ticketing terminals — indoor, at 400 cd/m².
• Access control, intercom and door panels — a vertical interface in a narrow cut-out, with a touch keypad on the same flex.
• Marine instrument consoles and vehicle dashboards — shaded cabins and consoles, where the viewing angle is never ideal.
• Smart home control panels — wall-mounted at any height, because there is no preferred direction.
• Microcontroller projects and retrofits — 150 KB fits internal SRAM, an 8080 bus is widely supported, and twelve documented interface modes mean less guesswork.
• Colour-critical instruments — an NTSC floor of 50% is the only gamut figure in this range.

General Specification

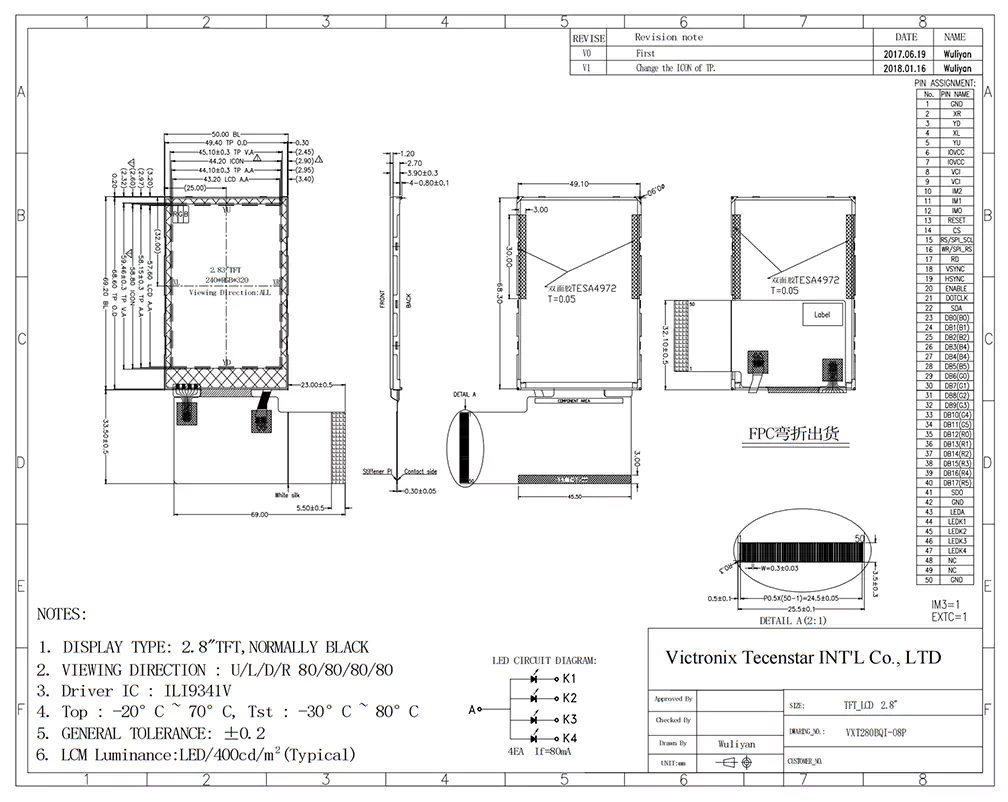

Mechanical Drawing
