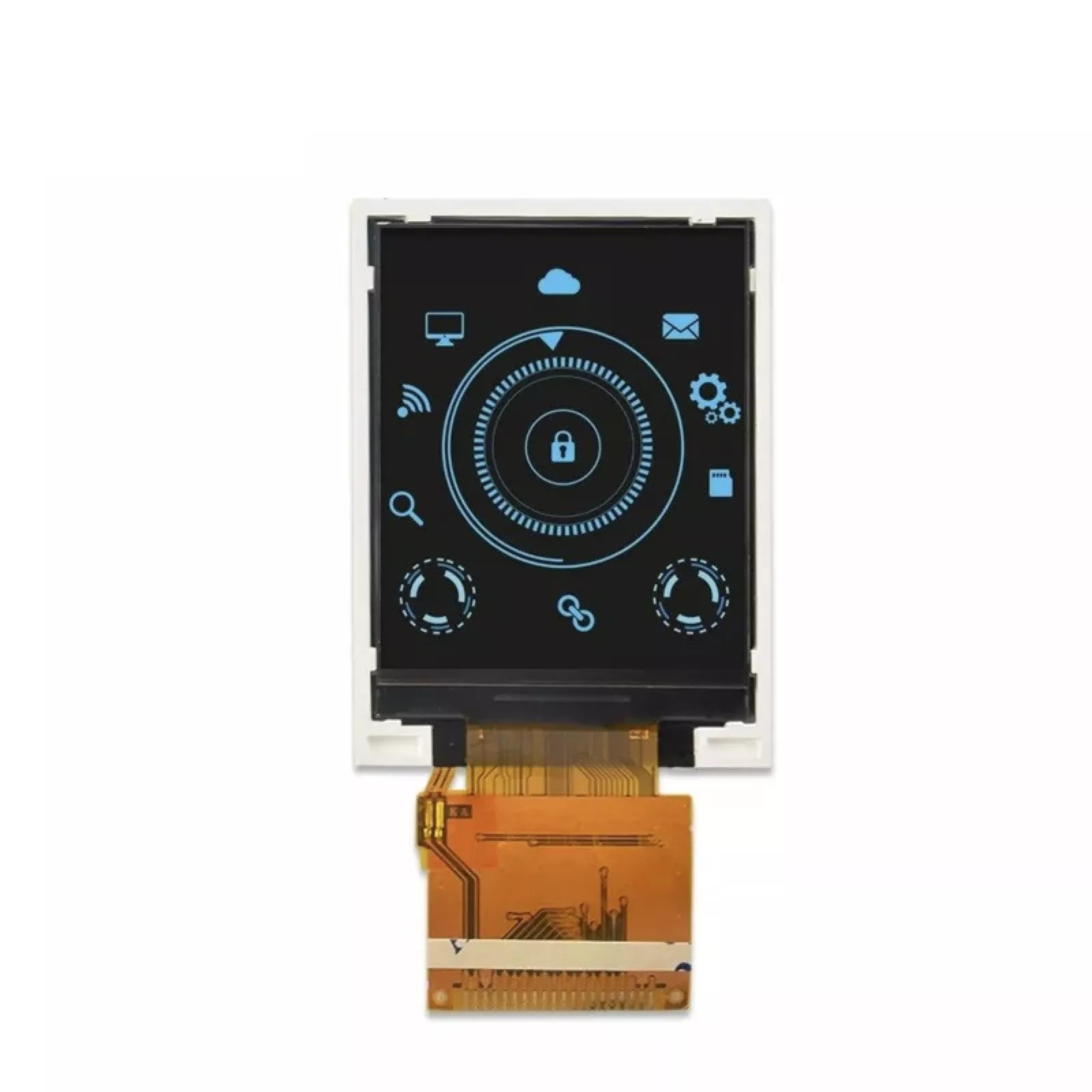

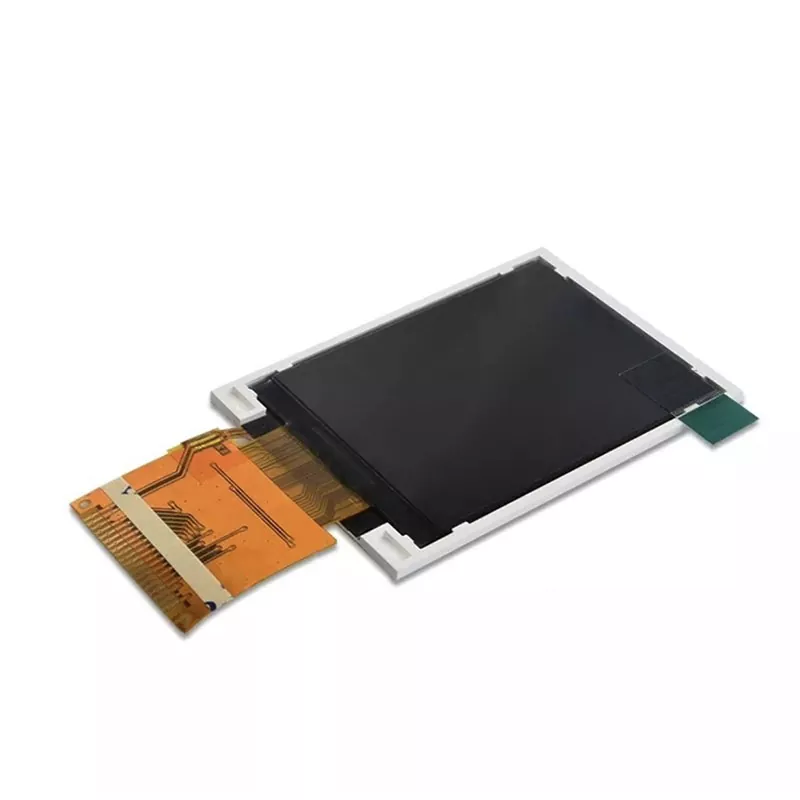

2.0 Inch 176x220 Portrait TFT LCD Module 8-Bit MCU - VXT200HFI-01

Where It Gets Used

• Small handheld and portable field instruments — 75.6 KB fits a 128 KB microcontroller, and 2.23 mm leaves room for a battery.
• Wearable and body-worn devices — the smallest and lightest panel here.
• Industrial HMI and machine control panels — a 6 o'clock viewing direction is fine on a panel mounted at a known height and a known side.
• Medical devices and portable monitors — thin, light, and cheap to drive from a small host.
• Point-of-sale and payment terminals — a compact portrait column for a short list or a status readout.
• Test and measurement equipment — square pixels keep scales and dial graphics true, and the fast response suits a moving needle.
• Kiosk, vending and ticketing terminals — indoor, at 320 cd/m².
• Access control, intercom and door panels — a small vertical interface in a narrow cut-out.
• Marine instrument consoles and vehicle dashboards — shaded cabins and consoles, at a fixed mounting orientation.
• Smart home control panels — wall-mounted at a known height and side.
• Microcontroller projects and retrofits — the only panel here whose frame buffer fits a 128 KB part.
• Applications that show fast-moving content — 2 ms and 6 ms response is an order of magnitude faster than the rest of this range.

General Specification

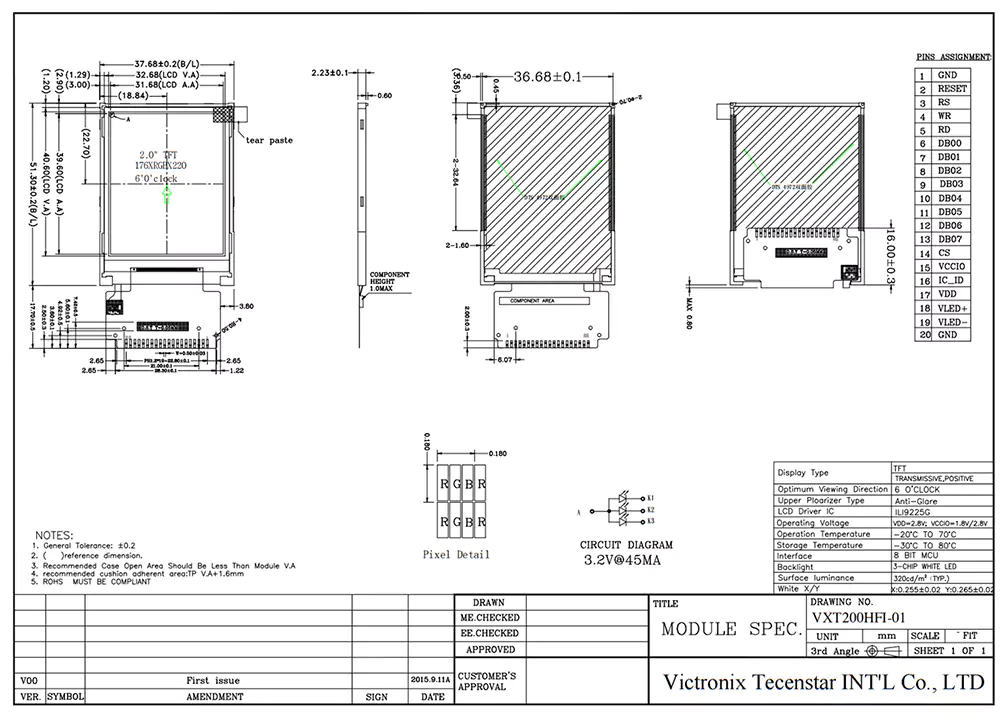

Mechanical Drawing
