21.5" 1920x1080 FHD TFT LCD Module, 500 cd/m² LVDS

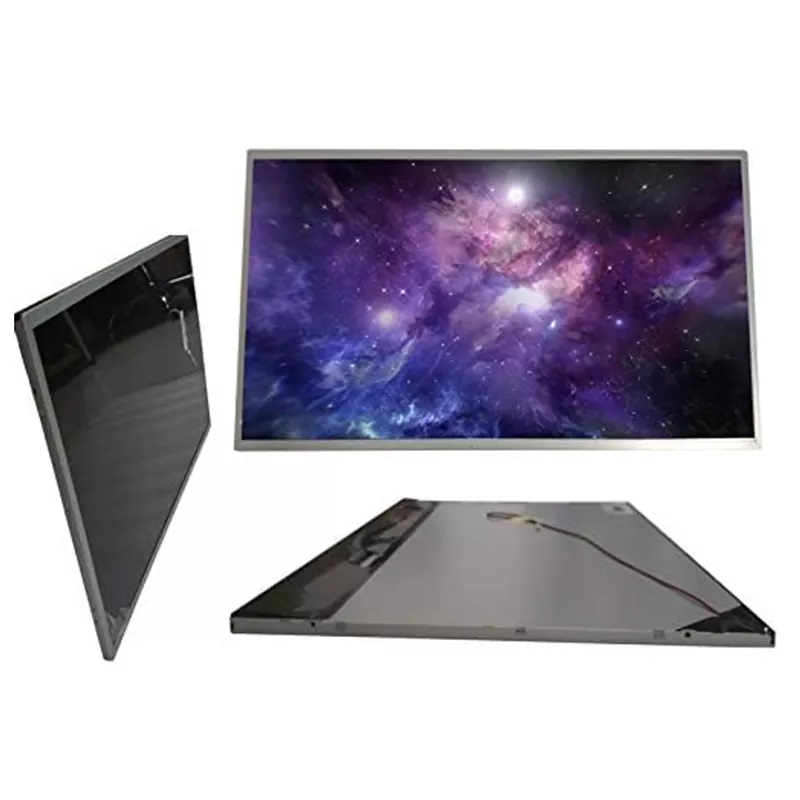

The Victronix VXTL50BJZ-01 is a 21.5-inch TFT LCD module with a native 1920 x 1080 (FHD) resolution, a 16:9 aspect ratio and a 0.24795 mm pixel pitch, delivering sharp Full HD images. It provides 500 cd/m² typical brightness and 1000:1 typical contrast ratio, so content stays clear and consistent across a room. Video is carried by a dual-channel LVDS interface. An anti-glare top polarizer reduces reflections under indoor lighting.It suits digital signage, indoor kiosks, POS and self-checkout terminals, monitors, control rooms and light industrial HMIs. Touch panels, cover glass, HDMI/VGA/DP driver boards and higher-brightness options are available on request.

Model:VXTL50BJZ-01

Send Inquiry PDF DownLoad

Product Description

Typical Applications

Digital signage and advertising displays — menu boards, retail promotions, wayfinding, lobby and elevator displays.
Indoor kiosks and self-service terminals — ticketing, check-in, vending, queue management, information points.
POS and self-checkout — cashier-facing and customer-facing screens, ordering terminals.
Commercial and office monitors — 21.5" Full HD desktop panels, dual-monitor setups, video conferencing displays.
Control rooms and monitoring — security and CCTV walls, SCADA and process visualization, network operations.
Light industrial HMI — machine panels and operator terminals in climate-controlled production areas.
Medical and laboratory equipment (indoor) — carts, analyzers, diagnostic workstations, patient information screens.
Entertainment and education — gaming and amusement cabinets, training and classroom displays.

Application note: the module is rated for 0°C to +50°C operation and -20°C to +60°C storage. It is designed for indoor and climate-controlled environments. For outdoor enclosures, unheated cabinets, direct-sun exposure or sub-zero starts, ask us about wide-temperature and high-brightness versions instead.

Customization Options

Touch panel: projected capacitive (PCAP, multi-touch) or 4-/5-wire resistive.
Cover glass: AG, AR, AF treatments, custom printing, thickness and shape.
Optical bonding (OCA/OCR) for better contrast, sealing and impact resistance.
Higher brightness and wide-temperature backlight designs.
Driver and interface boards: HDMI, VGA, DisplayPort, DVI, USB-C, RGB and MIPI to dual LVDS.
LED constant-current driver board matched to 75 V / 400 mA.
Cable length, connector position, bezel and mounting bracket customization.
Private labeling, custom startup logo and firmware tuning.

General Information

Item	Specification
Model	VXTL50BJZ-01
LCD Type	TFT / Transmissive/21.5 inch (16:9)
Resolution	1920 × 1080 (Full HD)
Active Area	476.06 (H) × 267.79 (V) mm
Pixel Pitch	0.24795 × 0.24795 mm
Module Outline (W × H × T)	495.6 × 292.2 × 9.22 mm
Brightness	500 cd/m² (typ.), 400 cd/m² (min.), 700 cd/m² (max.)
Contrast Ratio	1000:1 (typ.)
Response Time	14 ms (typ.), 20 ms (max.)
Viewing Angle (CR ≥ 10)	89°/89°/89°/89° (typ.), 85° (min.) — L/R/U/D
Viewing Direction	All o'clock
Uniformity	80% (typ.)
Surface Treatment	Anti-glare top polarizer
Interface	Dual-channel LVDS, 30-pin connector
Logic Supply Voltage	5 V (Min 4.5 V / Max 5.5 V)
Logic Supply Current	500 mA (typ.), 1200 mA (max.)
Backlight	60-dies white LED
Backlight Voltage (Vf)	75 V (typ.), 69.6 V (min.), 79.2 V (max.)
Backlight Current	400 mA (constant current)
Backlight Power Consumption	30 W (typ.)
Operating Temperature	0°C to +50°C
Storage Temperature	-20°C to +60°C
Touch Panel	Without (optional on request)

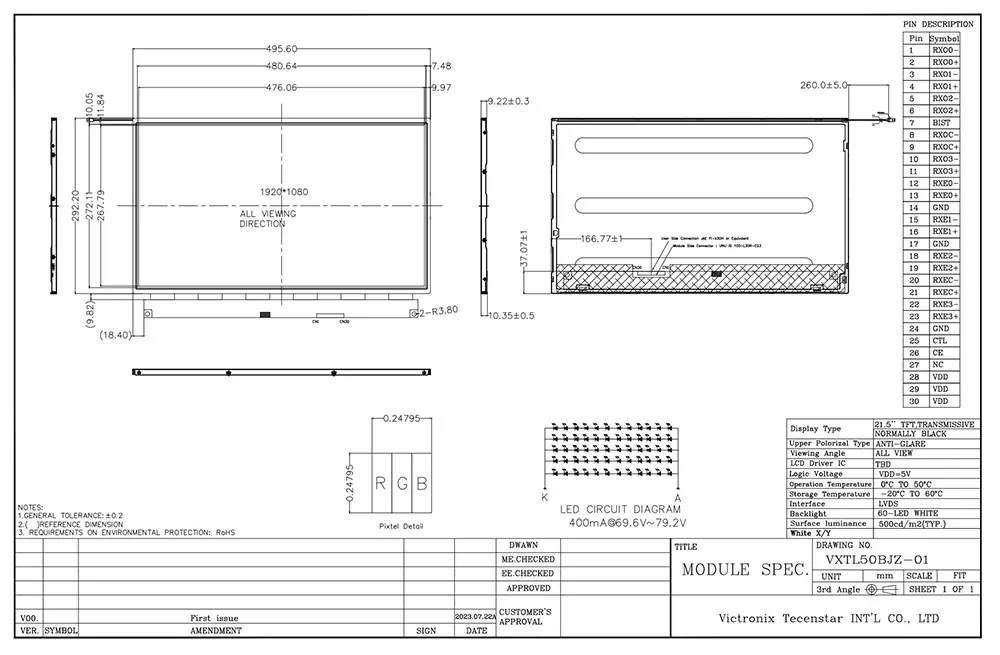

Outline Drawing
