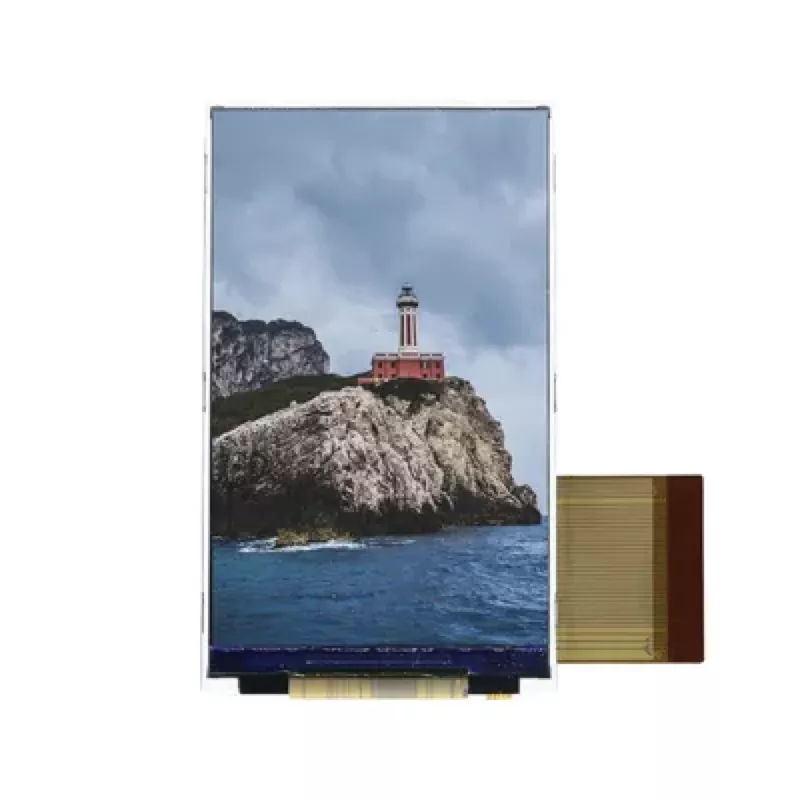

3.2 Inch 240x400 Portrait TFT LCD Module 18-Bit RGB/MCU + SPI - VXT320PZS-01

Where It Gets Used

• Handheld and portable field instruments — 187.5 KB fits a microcontroller with no external RAM, and 146 PPI keeps readings legible.
• Industrial HMI and machine control panels — a 6 o'clock viewing direction is fine on a panel mounted at a known height.
• Medical devices and portable monitors — thin, light, and cheap to drive from a small host.
• Point-of-sale and payment terminals — a 5:3 portrait column for a scrolling list or a receipt view.
• Test and measurement equipment — square pixels keep scales, traces and dial graphics true.
• Kiosk, vending and ticketing terminals — indoor, at 400 cd/m².
• Access control and intercom panels — a vertical interface in a narrow cut-out.
• Marine instrument consoles and vehicle dashboards — shaded cabins and consoles.
• Smart home control panels — wall-mounted at a known height, so the viewing direction is under your control.
• Microcontroller projects and retrofits — 187.5 KB fits internal SRAM, and 8080 MPU modes are widely supported.
• Replacement displays in existing 3.2-inch 240 × 400 equipment — same resolution, same 5:3 shape, same portrait orientation

If you integrates this 3.2-inch TFT with I2C temperature sensor, TF card holder, level conversion circuit, it will be a expansion board, and the secondary development is easy.

With GPRS module, you can design your Ar ;duino phone.

With NFC reader module, you can create access control systems with the photos show.

With voltage and current sensor, you can make oscilloscope.

So the 3.2 inch 240x400 TFT Module is mostly suitable for digital photo frame, oscilloscope, function generator, detection system monitor.

General Specification

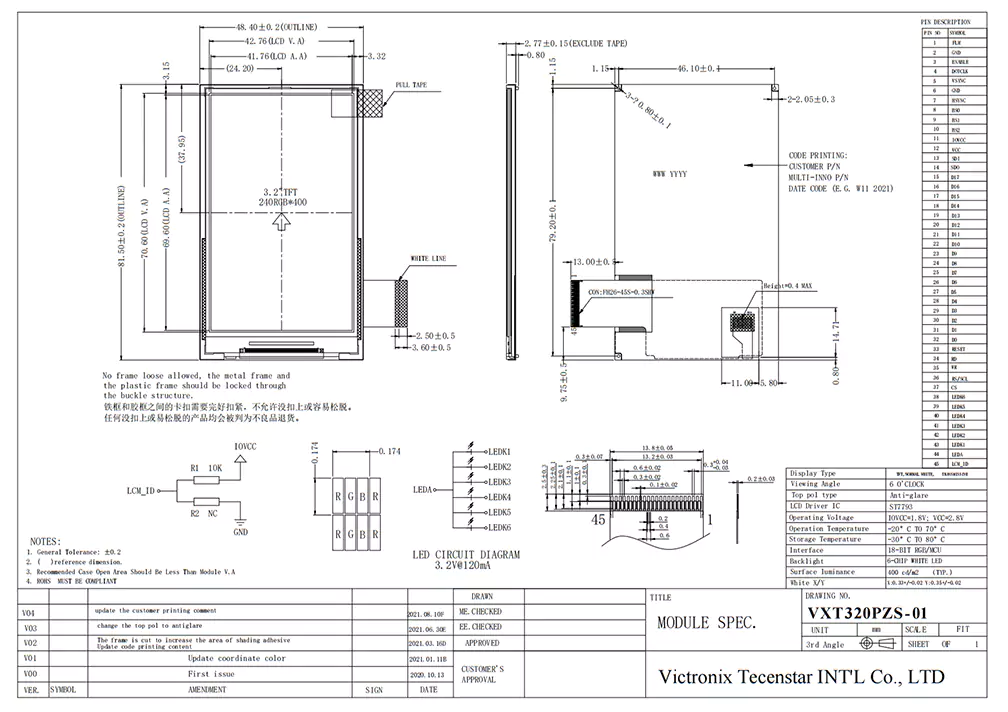

Mechanical Drawing
