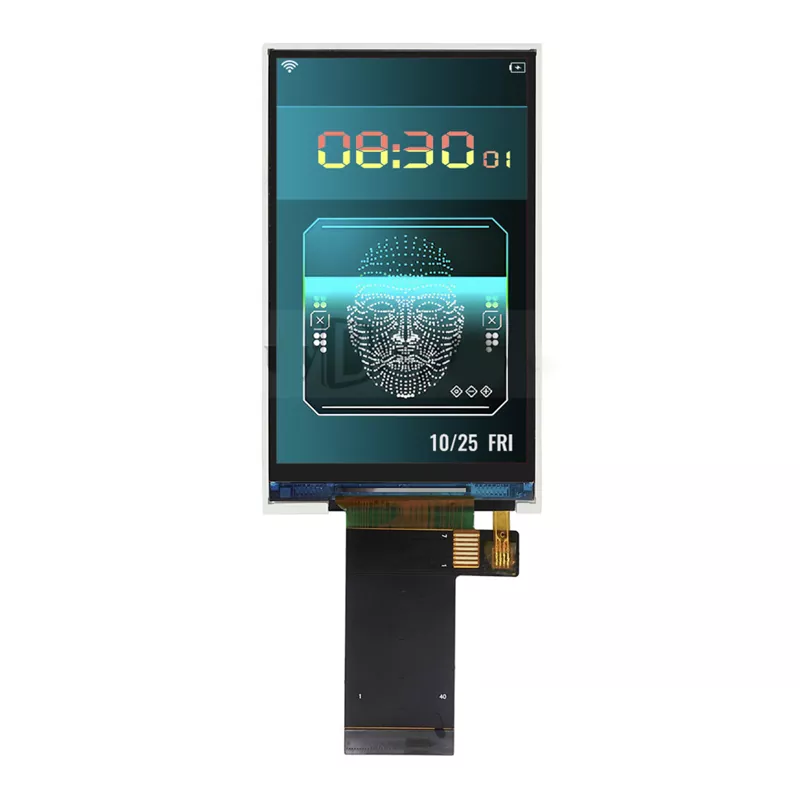

3.5 Inch 480x800 Portrait TFT LCD Module 24/18/16-Bit RGB + SPI - VXT350BVS-04

Where It Gets Used

• Handheld and portable field instruments — 268.8 PPI keeps dense readings legible on a panel you can hold in one hand.
• Industrial HMI and machine control panels — a free viewing direction means no wrong mounting orientation.
• Medical devices and portable monitors — fine detail, and a 2.1 mm profile in a slim enclosure.
• Point-of-sale and payment terminals — a 5:3 portrait column for a scrolling list, and 750 KB of graphics on an application processor.
• Test and measurement equipment — square pixels keep scales, traces and dial graphics true, and the resolution carries real detail.
• Kiosk, vending and ticketing terminals — free viewing direction, and 100 G shock for a public installation.
• Access control and intercom panels — a vertical interface in a shallow wall cut-out.
• Marine instrument consoles and vehicle dashboards — shaded cabins and consoles, with shock and vibration specified.
• Portable monitors and embedded Linux or Android projects — 750 KB on external RAM, driven by a host with an RGB output.
• Enclosures where depth is the constraint — 2.1 mm is the thinnest module we carry in this size.
• Replacement displays in existing 3.5-inch 480 × 800 equipment — same resolution, same 5:3 shape, same portrait orientation, in a thinner package.

General Specification

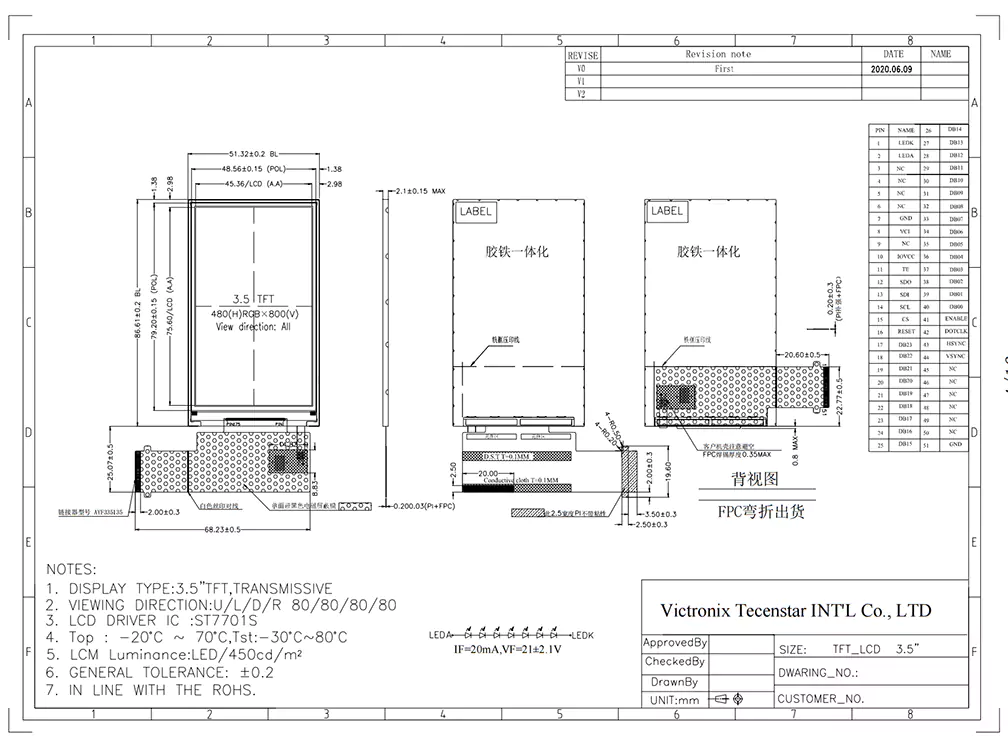

Mechanical Drawing
