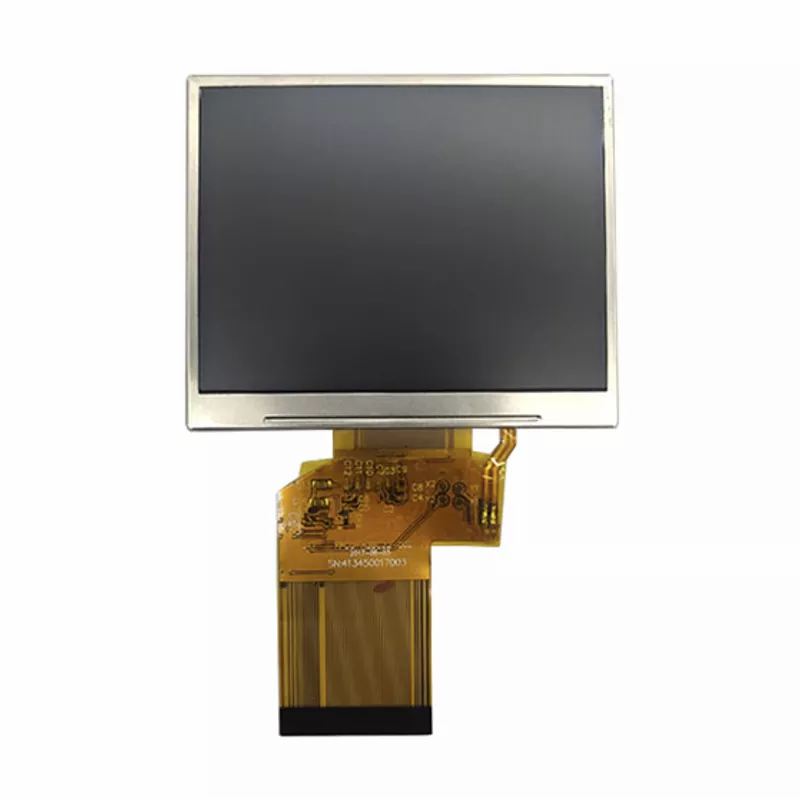

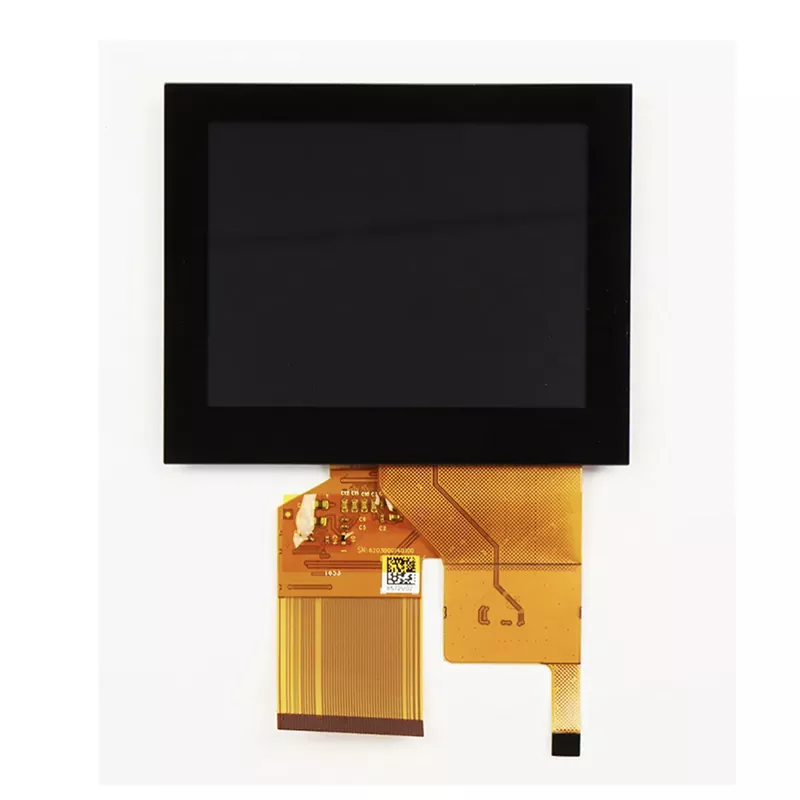

3.5 inch 54pins Capacitive Touch TFT Module

As the TFT Module is widely used in life, manufacturers and suppliers are increasingly. What makes this Victronix 3.5 inch 54pins Capacitive Touch TFT Module different from other manufacturers? At first, its IPS technology provides consistent color and clarity across wide 80-degree viewing angle in all directions (3/6/9/12 o'clock), 250 cd/m² typical brightness, 16.7M colors and a high typical contrast ratio of 800:1. Secondly, it supports both 24-bit parallel RGB (6-8MHz DCLK) and 8-bit serial RGB (15-21MHz DCLK) interfaces, configurable via the PS pin. Includes essential control signals (HSYNC, VSYNC, DE, DCLK) and scan direction control (VD, HD). It features a capacitive touch interface with an on-board FT5346 CTP controller, enabling responsive touch input through a standard I²C connection (SCL, SDA, INT, RESET). Besides, it features a 6S-LED white backlight system with a lifespan of 50,000 hours, maintaining 50% brightness retention, ensuring long-term usage in various industrial applications. In addition, it passes rigorous environmental stress tests, including high/low temperature operation/storage, thermal shock, vibration (10-55Hz), mechanical shock (100G), and ESD (±2KV HBM) to operate reliably in extreme temperatures (-20°C to +70°C).

This 3.5 inch LCD display by Victronix is perfect for industrial HMIs, medical devices, portable instrumentation, smart home controllers, kiosks, and any application requiring a reliable, high-quality touch display interface in tight spaces.

General Specification

VXT350MHLS-03C 3.5 inch 54pins Capacitive Touch TFT Module is a TFT-LCD module.It is composed of a TFT-LCD panel,driver IC,FPC,a back light ,CTP unit.The 3.5"display area contains 320x(RGB)x240 pixels and candisplay up to 16.7M colors.This product accords with ROHS environmental criterion..

Note 1: Color tune is slightly changed by temperature and driving voltage.
Note 2: Without FPC and Solder. With CTP

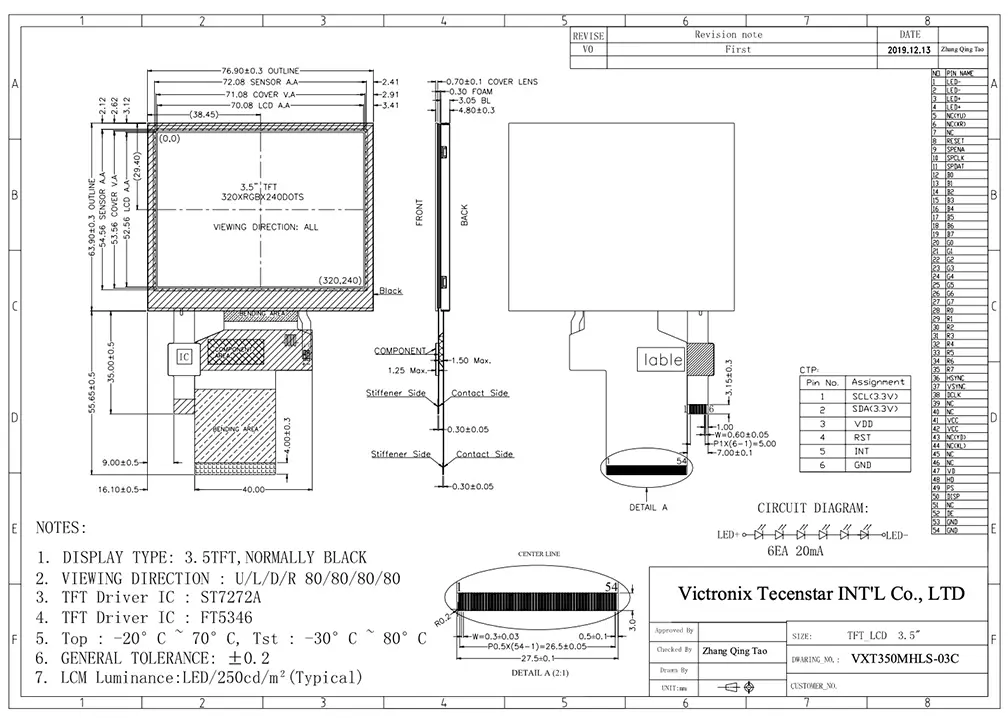

Outline.Drawing
