4.3 Inch 480x272 TFT LCD Module RGB Interface - VXT430QPH-108

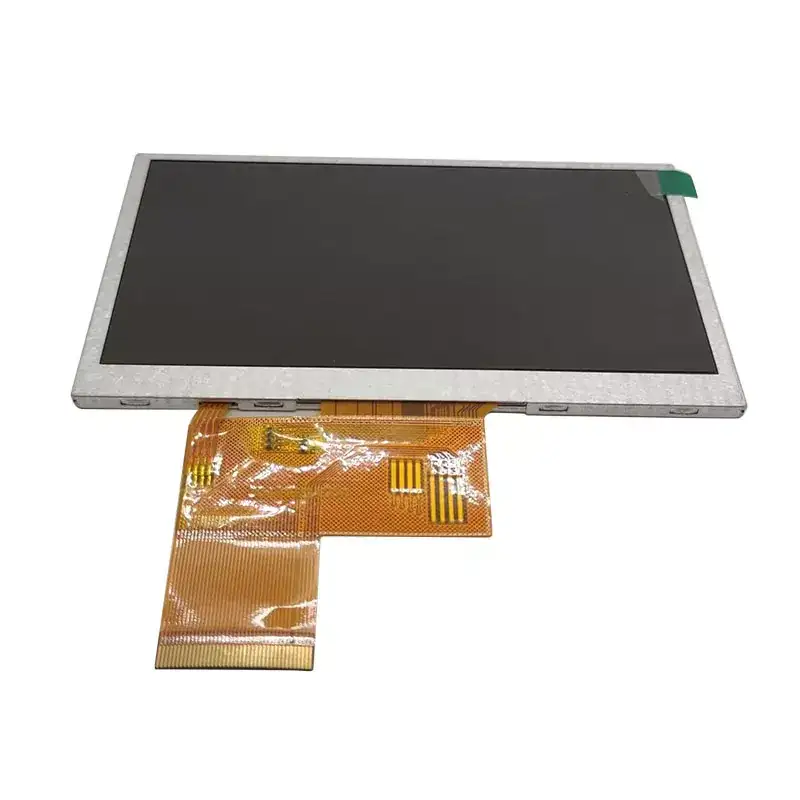

This Victronix 4.3 inch 480x272 TFT Module is a high-performance 4.3 inch TFT-LCD module engineered for demanding applications. Combining a sharp 480 × 272 RGB display, 16.7 million colors, and robust industrial-grade construction, this module delivers exceptional clarity and reliability in harsh environments. RoHS-compliant and backed by rigorous testing, it integrates seamlessly into medical devices, automotive systems, industrial controls, and portable instruments.

Model:VXT430QPH-108

Send Inquiry PDF DownLoad

Rating: 5.0

(Rating Count: 1)

Product Description

Where It Gets Used

4.3-inch 480 × 272 at 700 cd/m² with a 24-bit RGB bus is the classic size and resolution for indoor operator interfaces. Matching terminal products:

Application	Why this panel fits
Video door phone indoor monitor	4.3" is the standard indoor-monitor size; 700 cd/m² reads well in a hallway; 24-bit RGB suits the common SoC
Industrial HMI operator panel	480 × 272 is the established low-cost HMI resolution; DE mode suits most HMI SoCs
Lift and elevator floor display	4.3" TFT is a standard COP and LOP display size; 700 cd/m² handles car and lobby lighting
Handheld and portable instruments	0.54 W backlight and a single 3.3 V rail suit battery operation
Access control and intercom panels	A keypad, directory or video view at a compact size
Small kiosk, vending and ticketing terminals	Indoor, at 700 cd/m², with room for a resistive touch overlay if needed

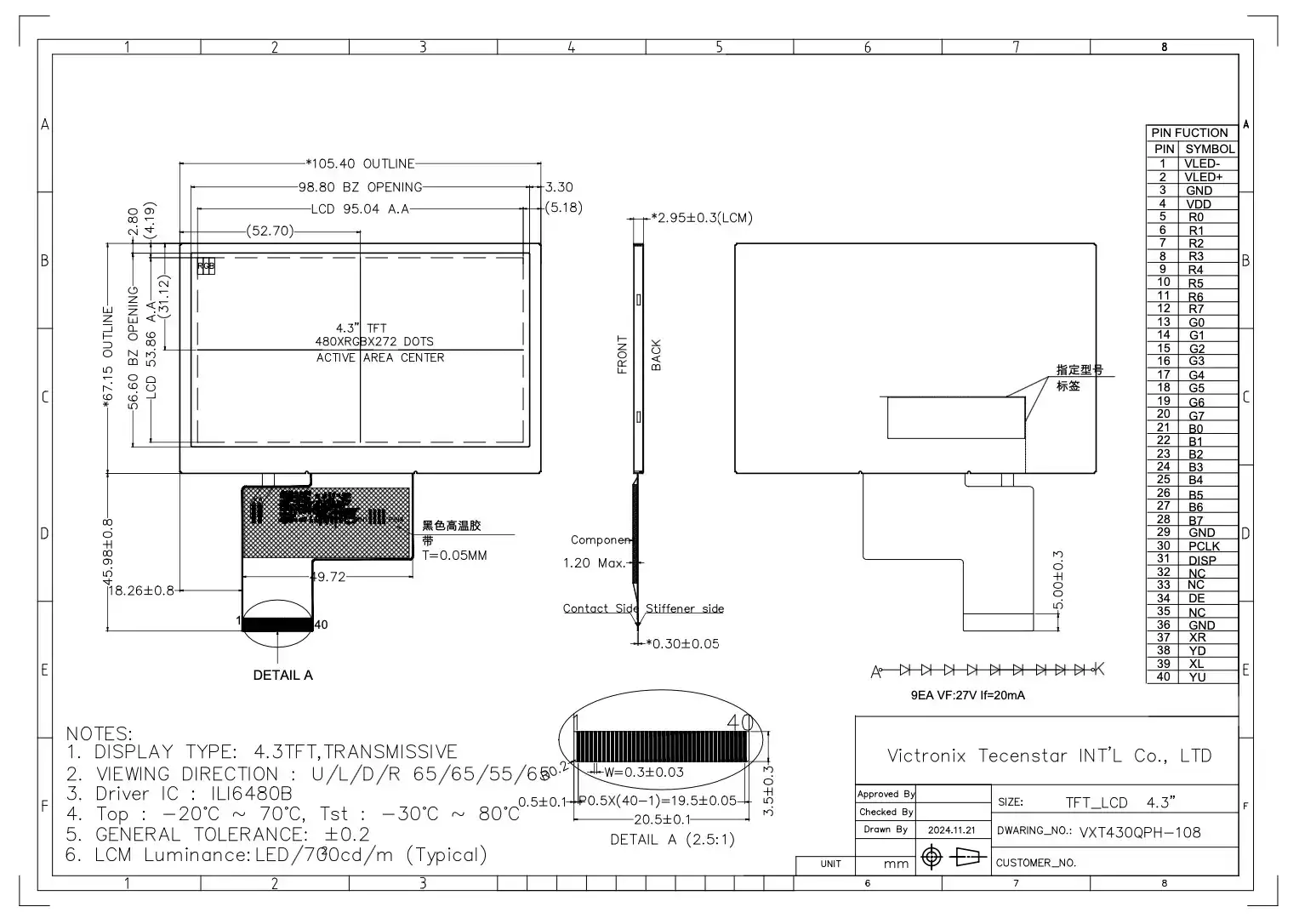

General Information

Item	Value
Model	VXT430QPH-108
LCD type	TFT
Colour	16.7M
Viewing direction	12 o'clock
Grey scale inversion	6 o'clock
Operating temperature	−20 to +70 °C
Storage temperature	−30 to +80 °C
Humidity	≤40 °C: 85% RH max; ≥40 °C: below the absolute humidity of 85% RH at 40 °C
Active area	95.04 × 53.86 mm — 51.19 cm²
Pixel pitch	0.198 × 0.198 mm — square to within 0.008%
Active aspect	1.764577 — matches the dot matrix to 0.0073%
Resolution	480 × 272
Controller	ILI6480B
Interface	RGB — 24-bit parallel
Touch pins	37–40 — XR, YD, XL, YU — no touch panel or specification
Grounds	3 — pins 3, 29, 36
No-connect pins	3 — pins 32, 33, 35
Supply	VDD 2.7 / 3.3 / 3.6 V
Brightness	700 cd/m² typical
Uniformity	80%
Contrast	400 min / 500 typ
Response	Tr + Tf 25 typ / 50 max ms — one row
Viewing angle	65° at 3, 9, 12 o'clock; 55° at 6 o'clock
NTSC	50% typical
Backlight	9 LEDs — 9S1P, 3.0 V per LED, 20 mA through the string
Backlight voltage	25.2 / 27 / 29.7 V
Backlight current	20 mA — test condition only
Backlight power	0.54 W (derived); 0.594 W at max Vf
Backlight life	30,000 h minimum — no typical
Boost required	About 9× — 29.7 V from a 3.3 V rail
