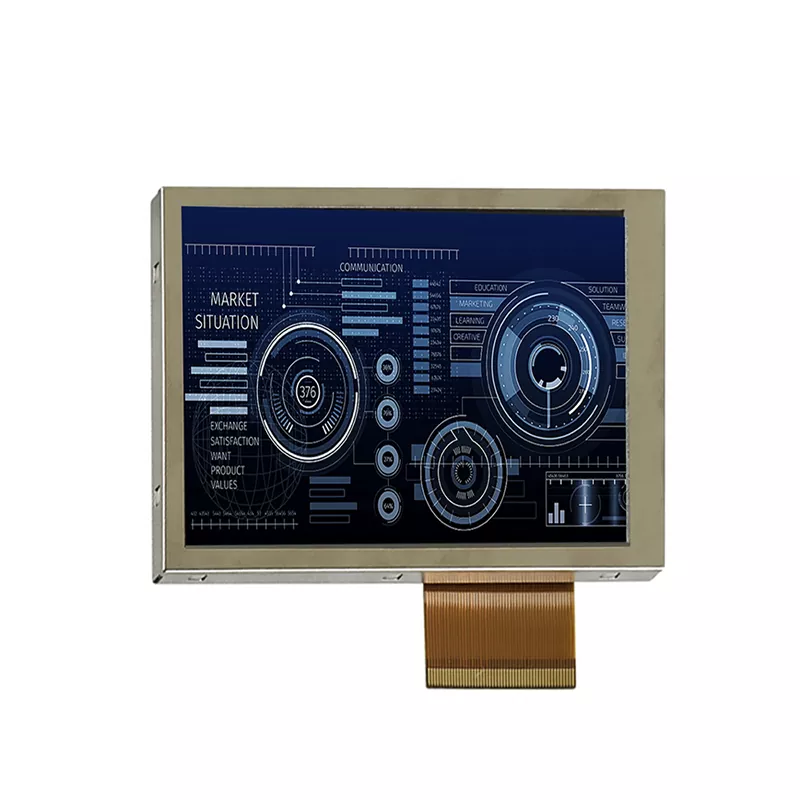

4 inch 320x240 TFT Module

Victronix is China 4 inch 320x240 TFT Module manufacturer and supplier. We have a certain position in the communication equipment market with our professional team, complete facilities and good after-sales service.

Model:VXT400HQI-01

Send Inquiry PDF DownLoad

Product Description

This 4 inch tft lcd display contains 320x(RGB)x240 pixels and can display up to 16.7M colors.This 4inch LCD display module supports SPI-3W+24Bit-RGB interface, its contrast ratio 500:1(typical value), brightness 350 nits (typical value), Anti-Glare surface panel.

This 4 inch 320x240 TFT Module is portrait mode; it integrated driver IC ILI9322 on module, interface supply voltage range 2.7V to 3.6V. This TFT module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.

General Description

● 4.0”(diagonal), 320 (RGB) x 240pixels, 16.7M colors, Transmissive, TFT LCD module.

● Viewing Direction: 6 O’clock.

● Driving IC: ILI9322

● SPI-3W+24Bit-RGB interface

● Logic voltage: 2.7-3.6V (typ.).

Mechanical Specifications

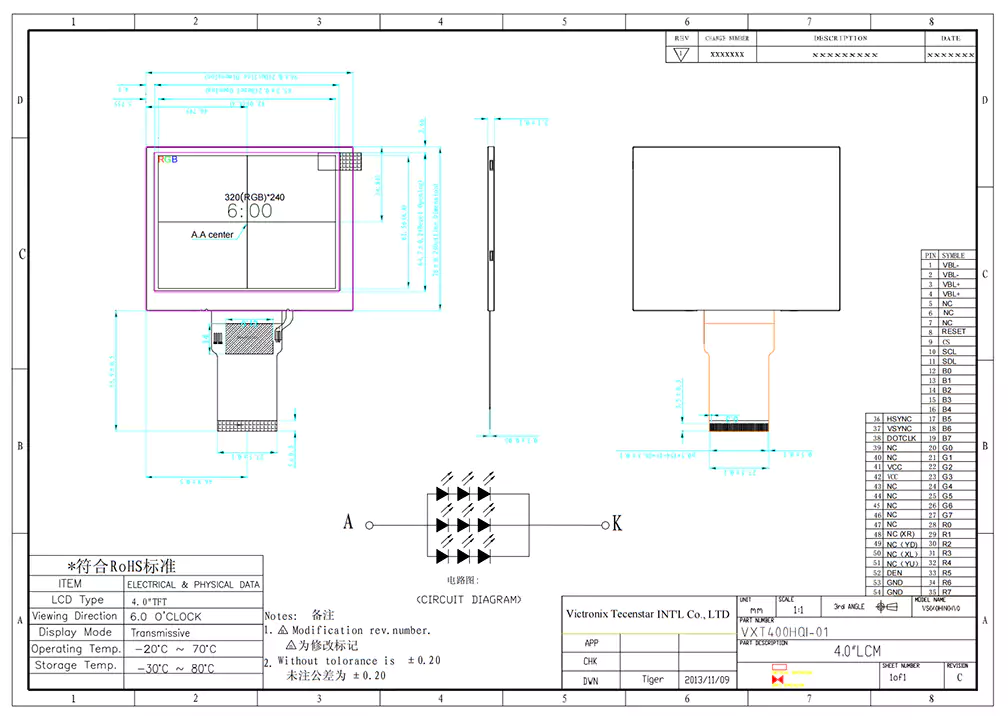

The mechanical detail is shown in Fig. 1 and summarized in Table 1 below.

Parameter		Specifications	Unit
Outline dimensions		96.0(W)x76(H)x3.1(D)	mm
			mm

	active area	82.08(W)x61.56(H)
	Display format	320RGB(H)x240(V)	Pixels
	Color configuration	RGB stripes
Weight		TBD	grams
