5.5 Inch 1080x1920 TFT LCD Module MIPI 4-Lane with Capacitive Touch Panel - VXT550MAZH-01

Victronix 5.5 inch 1080p TFT Module is a high-quality 5.5 inch TFT LCD module engineered by Victronix Tecenstar for industrial, medical, and embedded systems. It features a resolution of 1080×1920 pixels, a 24-bit RGB interface, and HX8399C driver IC, making it ideal for industrial controls, medical devices, portable electronics, and advanced embedded systems.

Model:VXT550MAZH-05

Send Inquiry PDF DownLoad

Product Description

General Information

Item	Value
Model	VXT550MAZH-01
LCD type	TFT / Transmissive; NORMALLY BLACK
Driver IC	HX8399C
Resolution	1080 (RGB) × 1920 — portrait FHD
Colours	16.7M
Viewing angle / direction	ALL

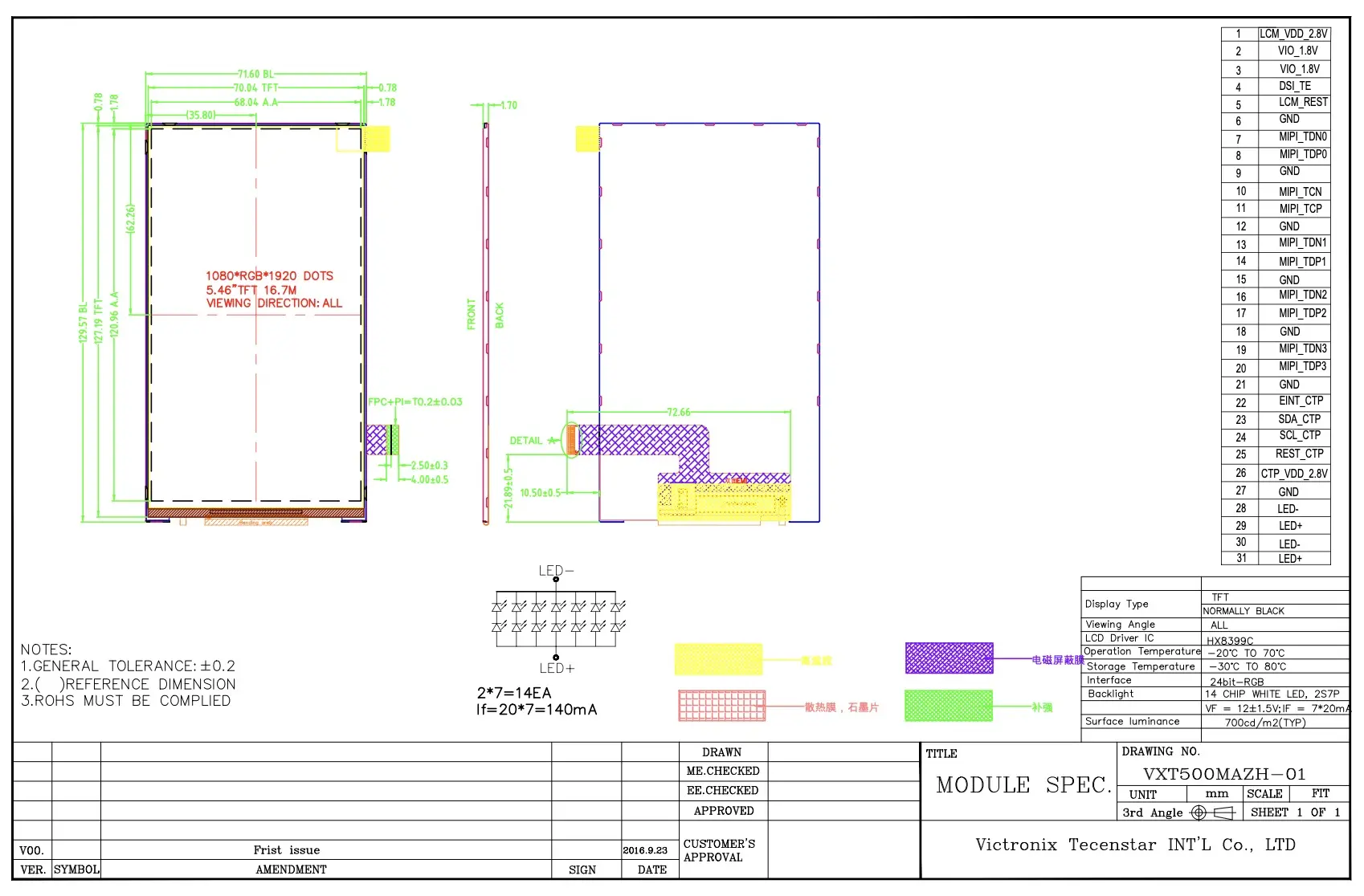

Module outline	71.60 × 129.57 mm (drawing, labelled "BL")
TFT glass	70.04 × 127.19 mm
Active area	68.04 × 120.96 mm — 82.29 cm² (height derived)
Pixel pitch	0.063 × 0.063 mm — exactly square
Interface	MIPI DSI, 4 data lanes + 1 clock pair
Touch	Capacitive, I2C
Touch supply	CTP_VDD_2.8V, pin 26
I/O supply	VIO_1.8V, pins 2 and 3
Grounds	7 — pins 6, 9, 12, 15, 18, 21, 27 — one per lane pair
Supply rails	1.8 V (display I/O) and 2.8 V (touch)
Brightness	700 cd/m² typical — no minimum, no maximum
Backlight	14 white LEDs — 2S7P, 20 mA per string
Backlight voltage	12 ± 1.5 V — so 10.5 to 13.5 V
Backlight current	140 mA — 7 × 20 mA
Backlight power	1.68 W (derived); 1.89 W at max Vf
Operating temperature	−20 to +70 °C
Storage temperature	−30 to +80 °C

Where It Gets Used

Handheld industrial terminals and PDAs — 403 PPI keeps dense readouts and small text legible, and one flex carries display and touch.
Barcode and logistics handhelds — portrait FHD suits a tall data list, and DSI_TE keeps the UI tear-free.
Portable medical devices — handheld ultrasound, patient monitors and diagnostic instruments, where fine greyscale detail matters.
Handheld POS and payment terminals — a signature area and a line-item list in one tall view.
Smart home and building control panels — wall-mounted or handheld, normally black with an ALL viewing direction.
Smart doorbells and intercom panels — portrait video with a touch surface.
Embedded Android and Linux projects — a standard 4-lane DSI panel with I2C touch from an applications processor.
Test and measurement equipment — square pixels keep scales, traces and dial graphics true.
Wearable and body-worn equipment — 700 cd/m² with a narrow 1.78 mm side bezel.
Retrofits of existing 5.5-inch FHD equipment — a size and resolution that fewer suppliers cover.

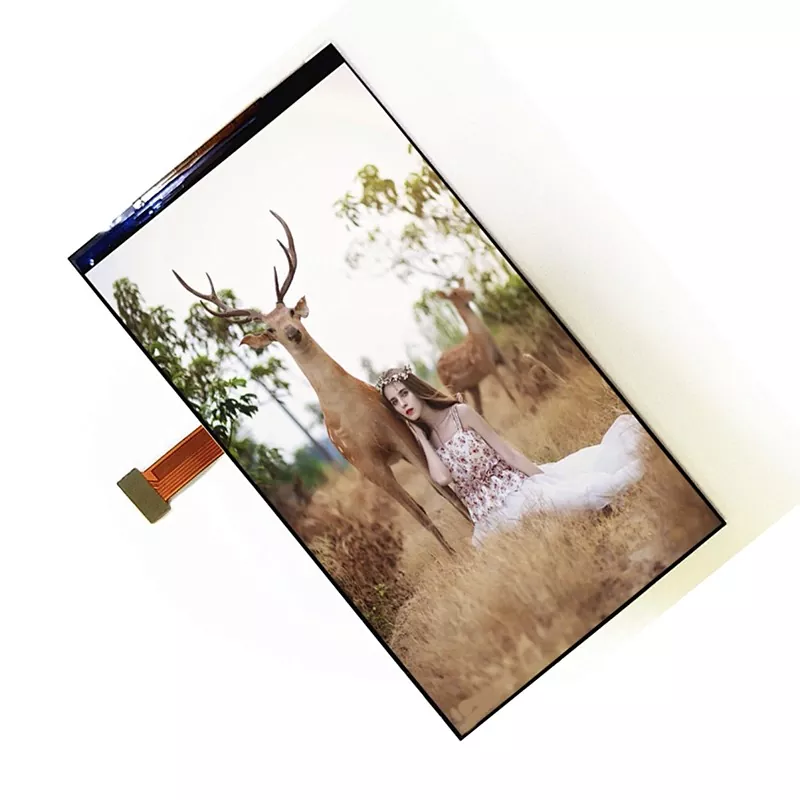

5.5 inch 1080p TFT Module
