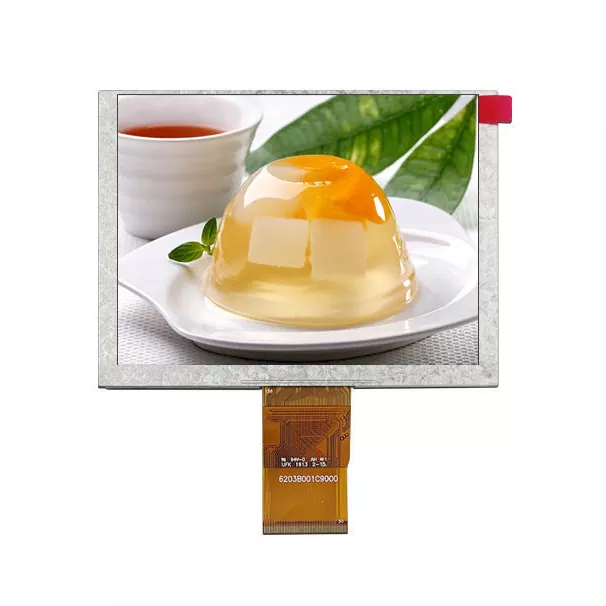

5 inch Sunlight Readable TFT Module

Victronix is a professional TFT module manufacturer and supplier based in China. With 18 years of experience in this field, we have developed a variety of models. In addition to our standard products, we also offer customized services to meet our customers' specific needs. This Victronix 5 inch Sunlight Readable TFT Module is a high-performance 5 inch display solution engineered for outdoor and industrial applications. Featuring a 640×480 resolution active area (101.57×76.18 mm) with 16.7 million colors and RGB888 interface, this RoHS-compliant module delivers exceptional visual clarity and reliability.

Model:VXT500QGH-07

Send Inquiry PDF DownLoad

Product Description

In a competitive market of TFT module manufacturers, this Victronix 5 inch Sunlight Readable TFT Module has several advantages. At first, it achieves a typical luminance of 800 cd/m², wide viewing angles (65 ° at 3/9/12 o'clock, 55 ° at 6 o'clock), and a contrast ratio of 500:1, ensuring excellent visibility even in challenging lighting conditions. Secondly, it features a 6-LED white backlight system with a typical lifespan of 30,000 to 50,000 hours (to 50% initial brightness), ensuring clarity and extended use in various lighting conditions. Besides, it was validated through IEC-standard tests, including shock, vibration, humidity, and ESD (±4kV air discharge) to operate seamlessly across an extended temperature range (-20°C to +70°C). Furthermore, it supports an RGB888 interface.

This 5 inch TFT display from Victronix is frequently used in Industrial HMIs, portable medical devices, vehicular displays, outdoor kiosks, and ruggedized equipment.

General Specifications

ltem	Contents	Unit	Note
LCD Type	TFT	-
Display color	16.7M
Viewing Direction	12	O'Clock
Gray scale inversion direction	6	O'Clock
Operating temperature	-20~+70	℃
Storage temperature	-30~+80	℃

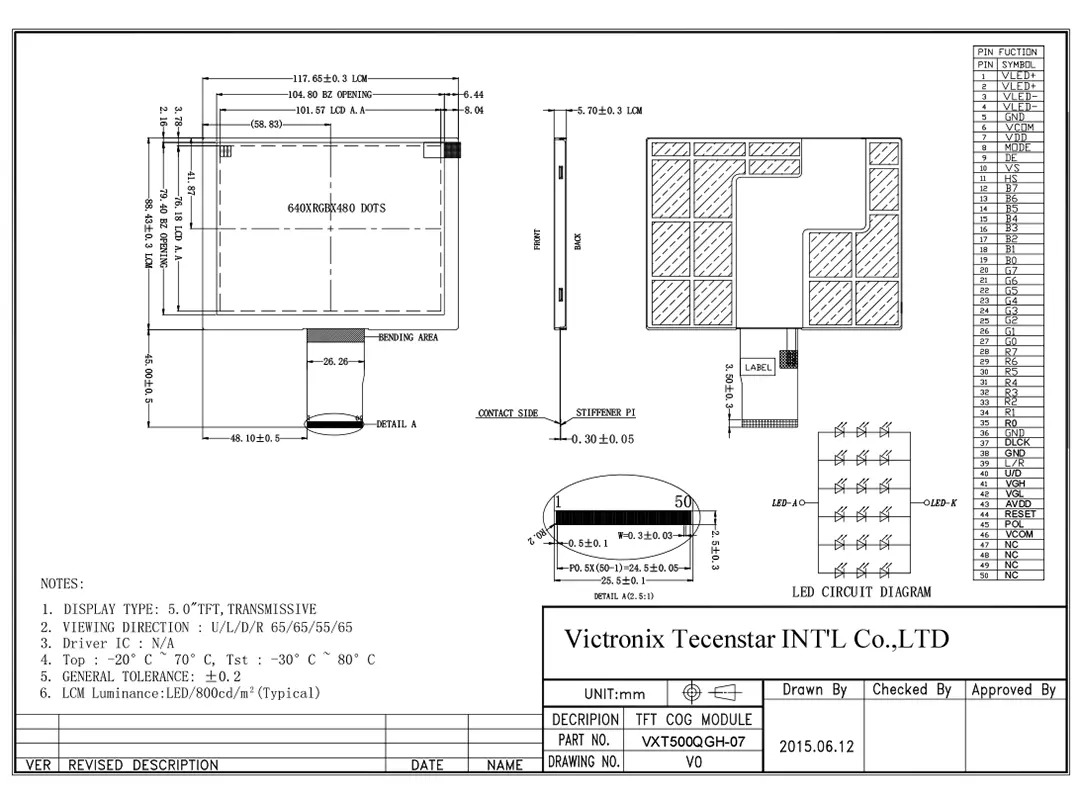

Module size	Refer to outline drawing	mm
Active Area(W×H)	101.57X76.18	mm
Number of Dots	640×480	dots
Controller	-	-
Power Supply Voltage	3.3	V
Outline Dimensions	Refer to outline drawing	-
Backlight	3X6-LEDs (white)	pCS
Weight	---	g
Interface	RGB888	-
