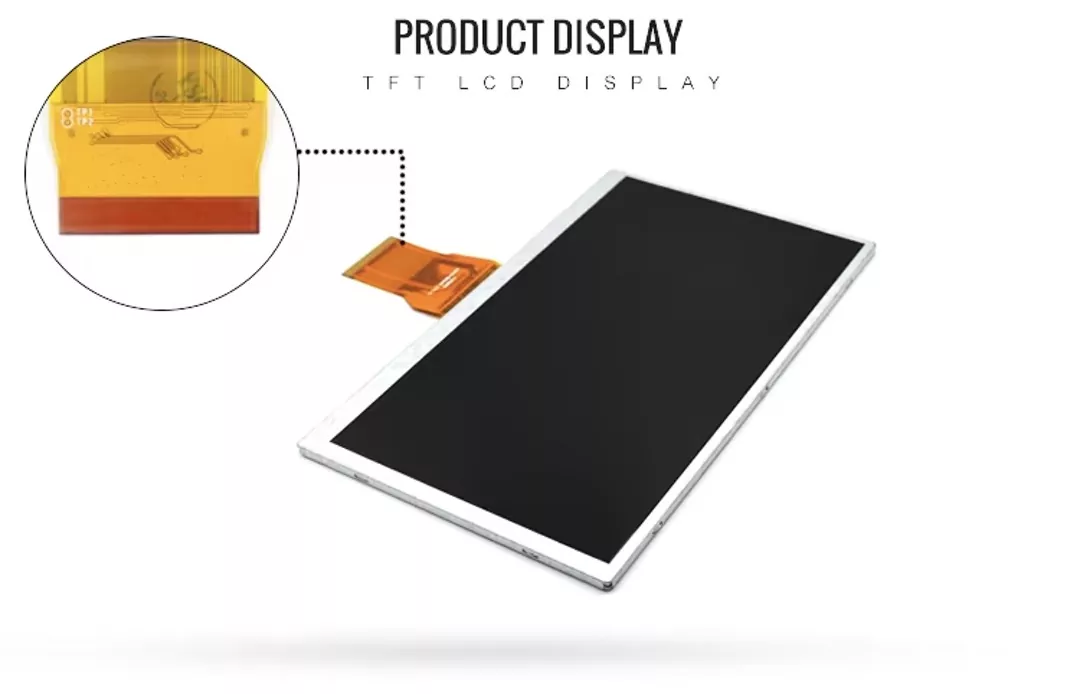

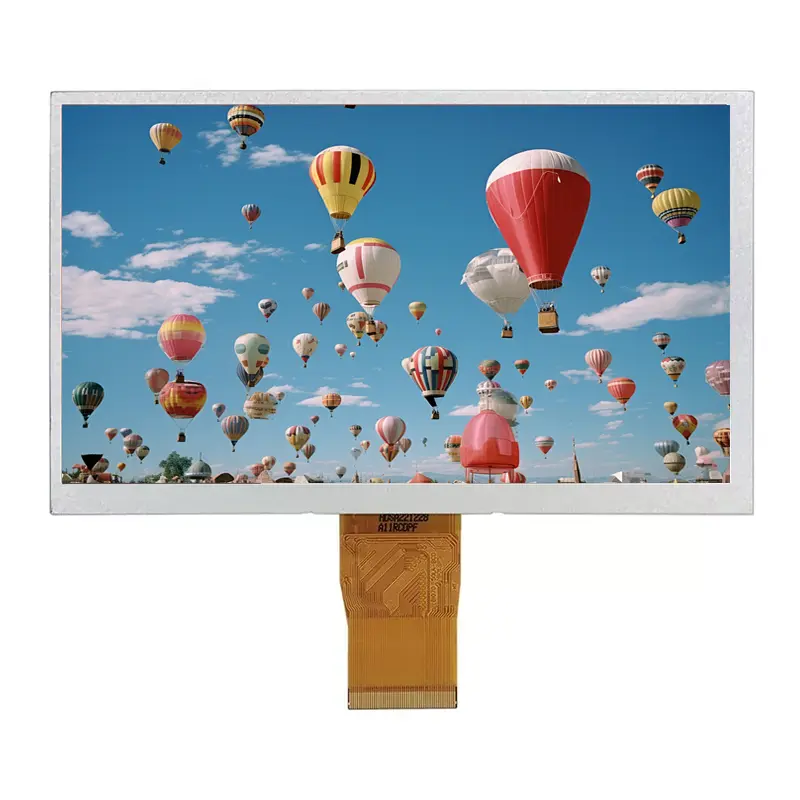

7 inch 1024x600 IPS TFT Module
  • 7 inch 1024x600 IPS TFT Module7 inch 1024x600 IPS TFT Module
  • 7 inch 1024x600 IPS TFT Module7 inch 1024x600 IPS TFT Module

7 inch 1024x600 IPS TFT Module

This Victronix 7 inch 1024x600 IPS TFT Module is a high-quality 7 inch TFT-LCD module engineered for demanding industrial applications. Featuring an IPS panel with a sharp 1024 × 600 resolution, it delivers vibrant 16.7 million colors and wide 178° viewing angles (all directions) for consistent visual clarity. With a typical brightness of 250 cd/m² and 800:1 contrast ratio, this display ensures readability in diverse lighting conditions. As a professional manufacturer and supplier of TFT modules in China, Victronix 7 inch TFT Module is fully compliant with ROHS environmental standards, ensuring superior application performance. We offer a customized service to meet the needs of our customers.

Model:VXT700AHA-08

Send Inquiry    PDF DownLoad

Product Description

TFT LCD is a type of liquid crystal display that utilizes thin-film transistor technology to enhance image quality, and it has numerous applications in everyday life. As a professional TFT module manufacturer and supplier in China, what makes the Victronix 7 inch 1024×600 IPS TFT Module different from other manufacturers? Initially, it offers a typical brightness of 250 cd/m², wide 178° viewing angles (all directions), and a contrast ratio of 800:1, ensuring excellent readability from various angles. Secondly, it integrates a backlight unit utilizing 21-LED with a typical lifetime of 30,000 to 50,000 hours (to 50% initial brightness), ensuring clear visibility in all lighting conditions. Besides, it supports LVDS input with 6-bit/8-bit color depth selection (SELB pin) and HX8282A11/HX8696A0 driver ICs. In addition, it passes rigorous environmental testing, including thermal shock (-30°C ↔ +80°C cycles), humidity storage (60°C/90% RH), and mechanical vibration, ensuring it can operate seamlessly across an extended temperature range (-20°C to +70°C).

This 7 inch TFT display by Victronix is commonly used in Industrial HMIs, medical devices, transportation systems, industrial control systems, home automation, portable electronics, embedded solutions requiring sunlight-readable, and wide-temperature performance.



Specification

Item Contents Unit Note
LCD Type TFT
Display color 16.7M
Viewing Direction ALL O'Clock
Operating temperature -20~+70
Storage temperature -30~+80
Module size Refer to outline drawing mm
Active Area(W×H) 154.21X85.92 mm
Number of Dots 1024*600 dots
Controller HX8282A11/HX8696A0
Power Supply Voltage 3.3  V
Outline Dimensions
Refer to outline
drawing

Backlight 3*7=21LEDs (white) pCS
Weight g
Interface LVDS

7 inch 1024x600 IPS TFT Module
