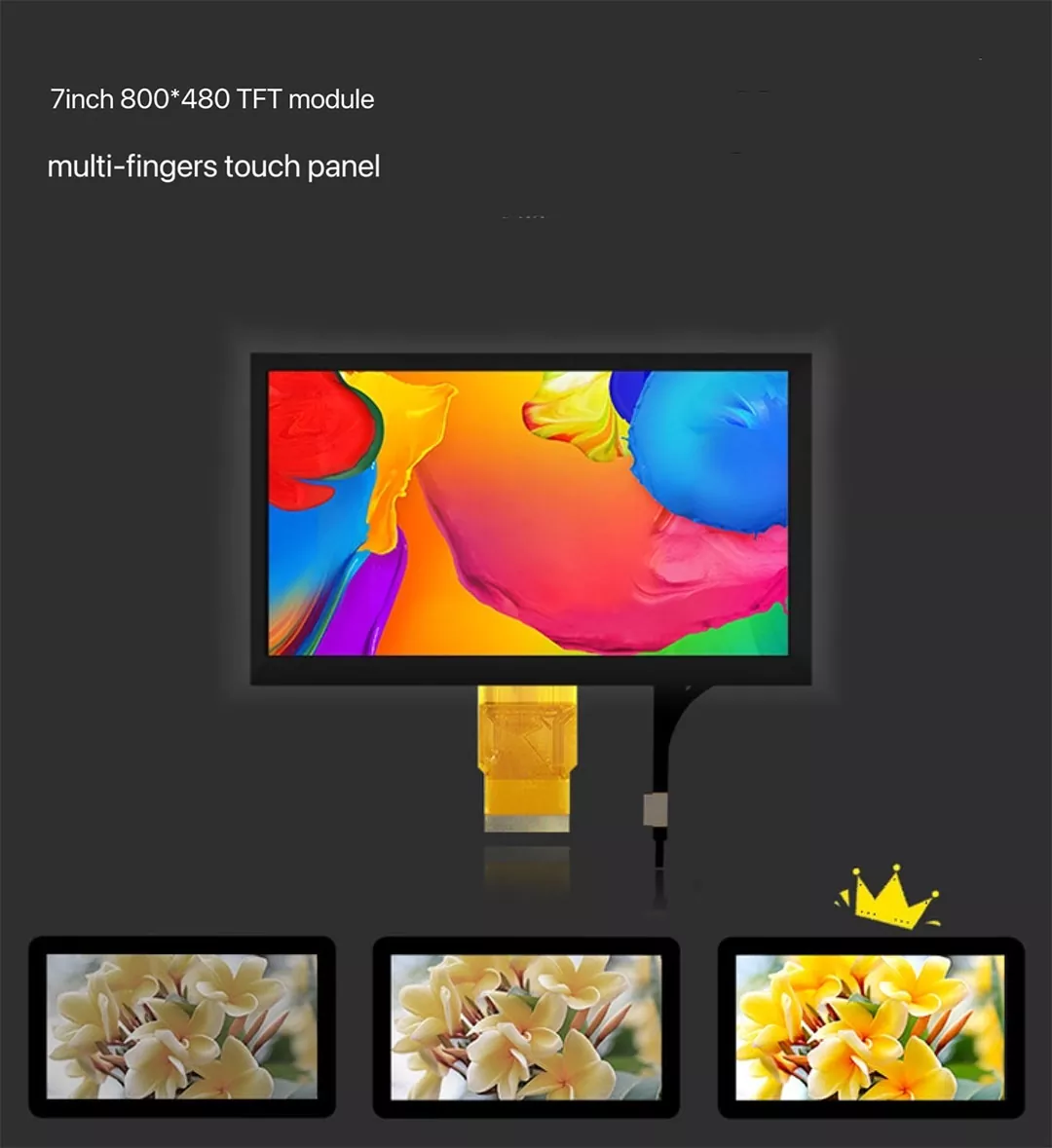

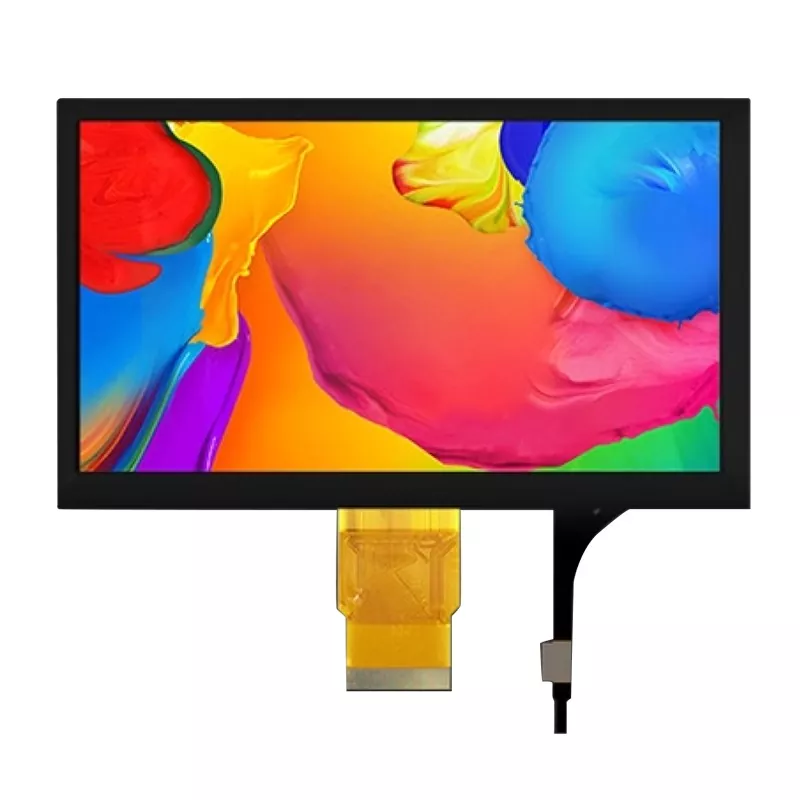

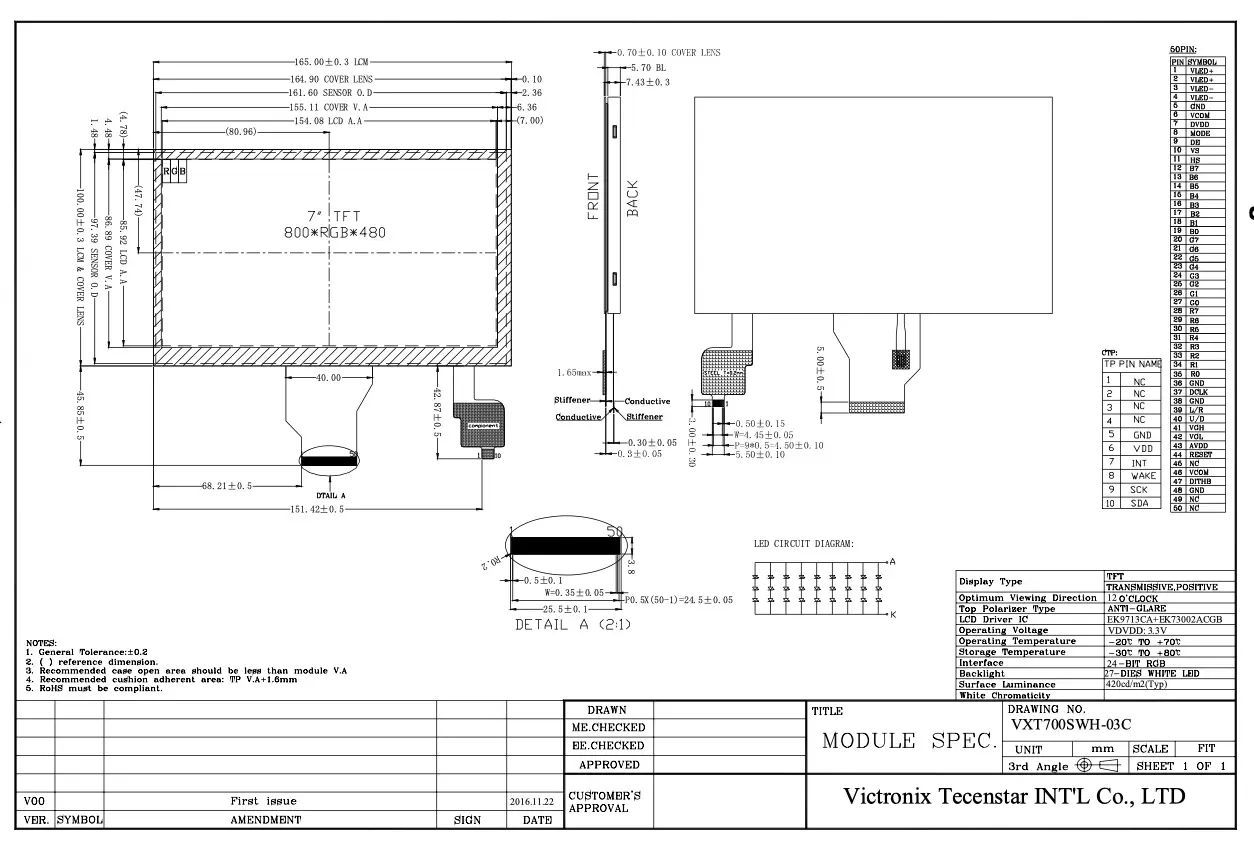

7.0 Inch 800x480 TFT LCD Module with Capacitive Touch 24-Bit RGB - VXT700SWH-03C

This Victronix 7 inch 800x480 Capacitive Touch TFT Module is a high-performance 7 inch TFT LCD module designed for industrial embedded systems. It features an 800×480 resolution screen, a capacitive touch panel (CTP), and a high-luminance backlight system within a compact form factor. As a professional manufacturer and supplier of TFT modules in China, this Victronix 7 inch TFT Module is fully compliant with ROHS environmental standards, ensuring superior application performance. We offer a customized service to meet the needs of our customers.

Model:VXT700SWH-03C

Send Inquiry PDF DownLoad

Rating: 5.0

(Rating Count: 1)

Product Description

Where It Gets Used

Industrial HMI and machine control panels — a capacitive front with multi-touch, in a 7-inch landscape format.
Handheld and portable field instruments — 800 × 480 with a 35 mA logic draw and a 50 µA sleep mode.
Medical devices and portable monitors — a smooth glass front that wipes clean.
Point-of-sale and payment terminals — a signature surface and a customer-facing display.
Test and measurement equipment — waveforms, numeric readouts and menus.
Marine instrument consoles and vehicle dashboards — a bonded cover lens and a glove-friendly alternative to resistive, if multi-touch matters more than glove use.
Access control, intercom and door panels — a numeric keypad or a directory list.
Kiosk, vending and ticketing terminals — indoor, at 420 cd/m² with the cover lens fitted.
Smart home control panels and thermostats — a 7-inch landscape wall panel.

General Information

Item	Value
Model	VXT700SWH-03C
LCD type	TFT
Active area	154.08 × 85.92 mm — 132.39 cm²
Diagonal	176.4258 mm = 6.9459 inch — 0.77% under the nominal 7.0
Resolution	800 × 480, landscape
Pixel pitch	0.1926 × 0.1790 mm — NOT square, 1.0760
Active aspect	1.79:1 — does not match the 5:3 dot matrix
Density	133.0 PPI (derived)
Driver IC	EK9713CA + EK73002ACGB — two chips
CTP controller	FT5426
Interface	RGB-24bit
Display connector	50-pin FPC
Touch interface	I²C
Current, normal	35 typ / 50 max mA
Current, sleep	0.05 typ / 0.1 max mA
Brightness, without CTP	500 cd/m² typical
Brightness, with CTP	420 cd/m² typical
Uniformity	75% minimum
Contrast	300 min / 500 typ
Response	Tr 10 typ ms; Tf 10 typ ms — separate rows, no limits
Viewing angle	65° at 3, 6 and 12 o'clock; 55° at 9 o'clock
Viewing direction	12 o'clock
Grey-scale inversion	6 o'clock
Colours	16.7M — stated
Backlight	27 LEDs — 3 × 9
Backlight voltage	9.0 V typical — no min or max
Backlight current	180 mA — 20 mA per string
Backlight power	1.62 W (derived, not stated)
LED driver	Boost converter with current regulation required
Operating temperature	−20 to +70 °C
Storage temperature	−30 to +80 °C
Humidity	Ta ≤ 40 °C: 85% RH max; above 40 °C, absolute humidity below 85% RH at 40 °C
