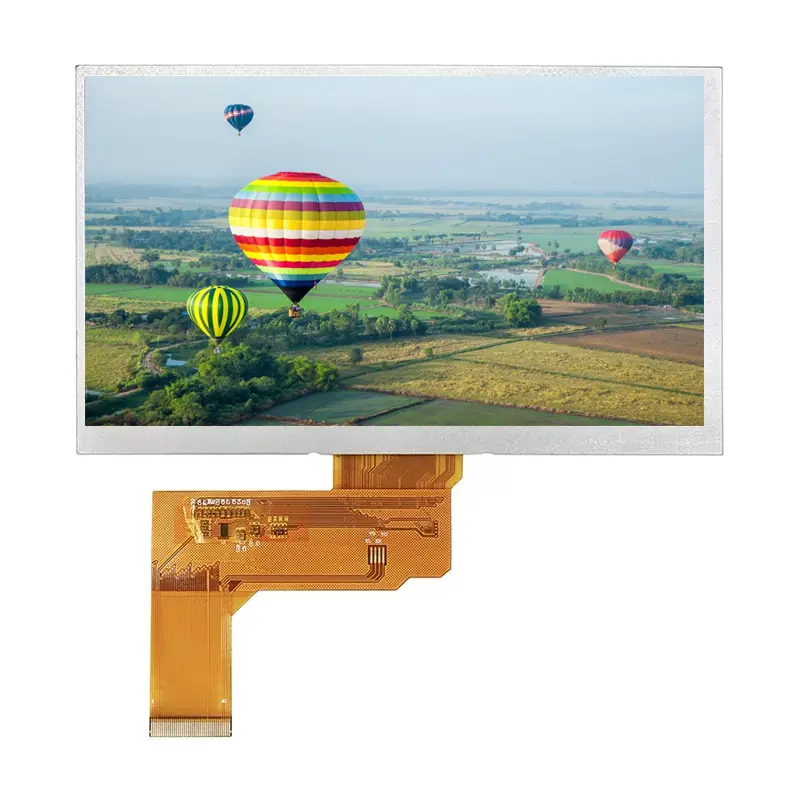

7.0 Inch 800x480 Wide Temperature TFT LCD Module -30C to +85C 24-Bit RGB888 - VXT700QWH-26
This Victronix 7 inch Wide Temperature TFT Module is a high-quality 7 inch TFT-LCD module engineered for demanding industrial, automotive, and embedded applications. Combining exceptional optical performance with extreme environmental resilience, this module delivers uncompromising clarity and durability in harsh operating conditions. As a professional manufacturer and supplier of TFT modules in China, Victronix 7 inch TFT Module is fully compliant with ROHS environmental standards, ensuring superior application performance. We offer a customized service to meet the needs of our customers.
Model:VXT700QWH-26
Send Inquiry PDF DownLoad
Product Description
General Information
| Item | Value |
|---|---|
| Model | VXT700QWH-26 |
| LCD type | TFT, transmissive |
| Module size | 165.00 × 100.00 × 5.7 mm — without FPC and solder (Note 2) |
| Active area | 154.08 × 85.92 mm — 132.39 cm² |
| Diagonal | 176.4258 mm = 6.9459 inch — 0.77% under the nominal 7.0 |
| Resolution | 800 × 480, landscape |
| Pixel pitch | 0.1926 × 0.1790 mm — NOT square, 1.0760 |
| Active aspect | 1.79:1 — does not match the 5:3 dot matrix |
| Density | 133.0 PPI (derived) |
| Pixel count | 384,000 |
| Driver IC | HX8664-B (gate) + HX8264-E (source) |
| Interface | RGB888 — 24-bit parallel |
| Connector | 50-pin FPC |
| Operating temperature | −30 to +85 °C |
| Storage temperature | −30 to +85 °C |
| Brightness | 450 cd/m² typical — no min or max |
| Uniformity | 75% min / 80% typ |
| Contrast | 400 min / 500 typ |
| Response | Tr + Tf 25 typ / 50 max ms — one row, no min |
| Viewing angle | 65° at 3, 9 and 12 o'clock; 55° at 6 o'clock |
| Viewing direction | 12 o'clock |
| Grey-scale inversion | 6 o'clock — matches the narrow angle |
| Colours | 16.7M — stated |
| NTSC ratio | 50% typical — stated |
| Backlight | 27 LEDs — 3S9P |
| Backlight voltage | 8.1 / 9.0 / 9.9 V at If = 180 mA |
| Backlight current | 180 mA — 20 mA per string |
| Backlight power | 1.62 W (derived, not stated) |
| Backlight life | 20,000 h minimum |
Where It Gets Used
- Industrial HMI in hot enclosures — +85 °C operating is the reason to choose this panel.
- Vehicle and marine instrument consoles — a sealed cab runs hot; this has the headroom.
- Outdoor-adjacent equipment — kiosks, ticketing, charging stations behind a cover lens.
- Handheld and portable field instruments — 800 × 480 in a 7-inch landscape.
- Medical devices and portable monitors — wide temperature for transport and storage.
- Point-of-sale and payment terminals — indoor, with thermal headroom.
- Test and measurement equipment — waveforms, numeric readouts and menus.
- Access control, intercom and door panels — a keypad or directory view.
- Factory floor control panels — 100 G shock and bare-module vibration.

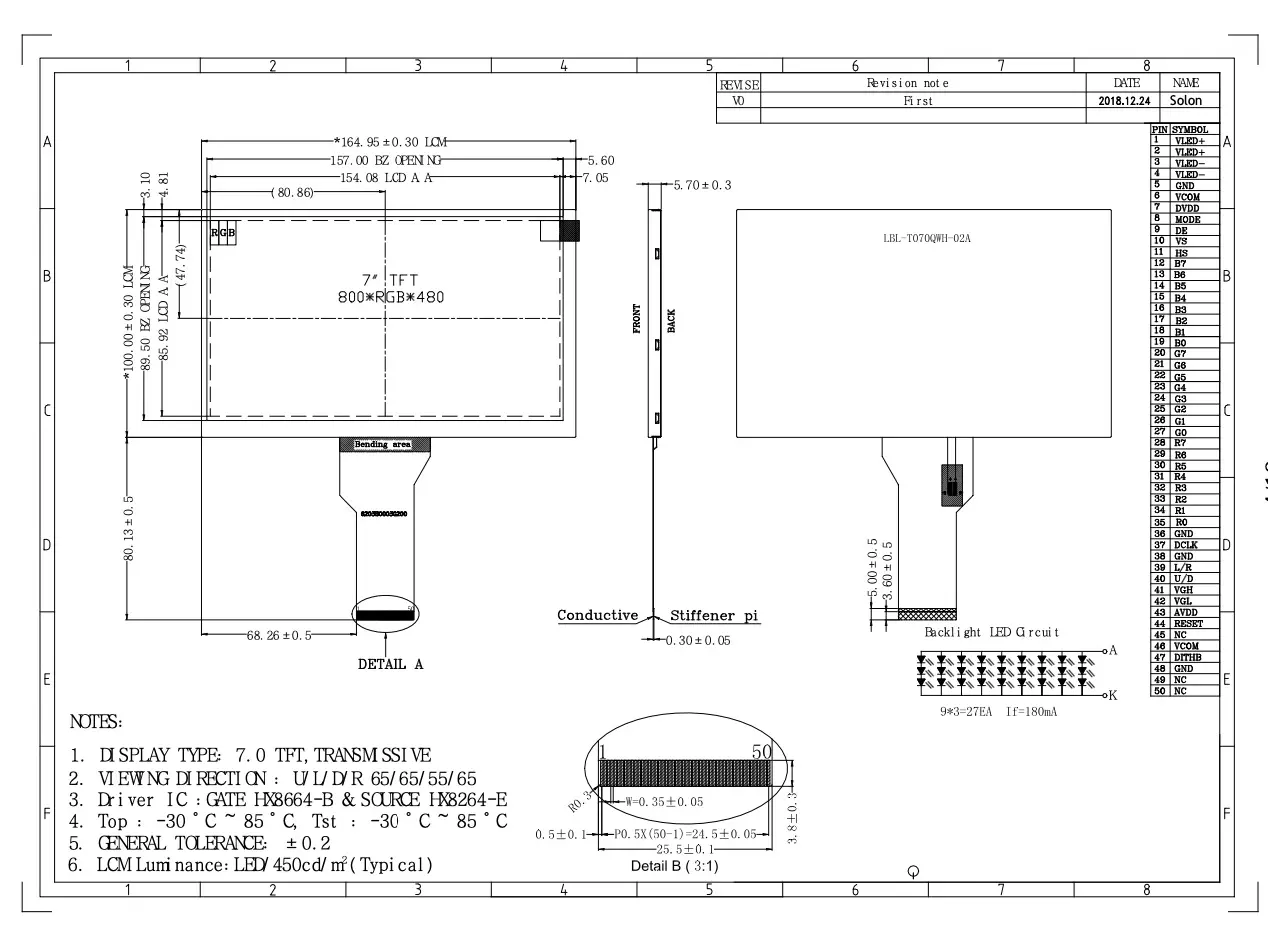

Outline Drawing
