Custom Touch Screen Solutions with Cover Lens and Display Integration
Products
- View as

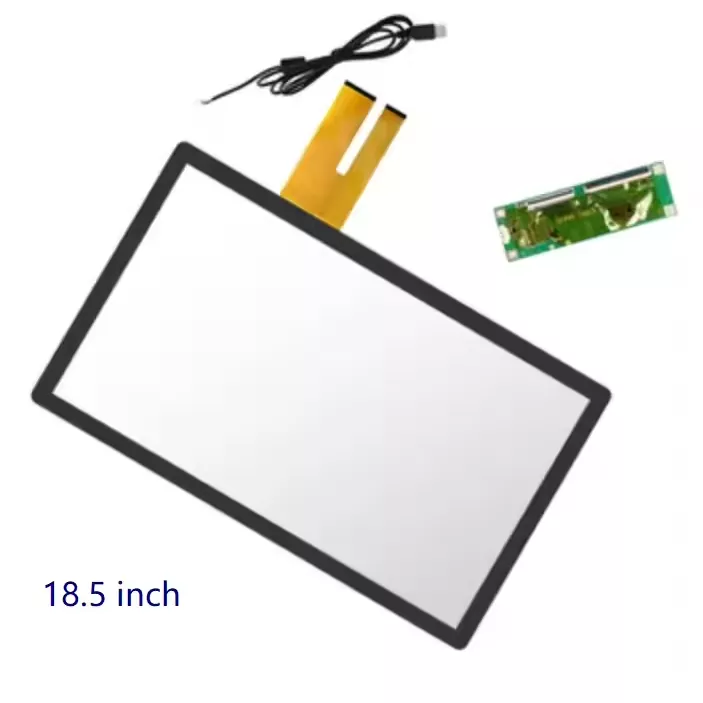

18.5 Inch G+G Capacitive Touch Panel with USB Interface 10-Point - CTP-VX185A2132
The CTP-VX185A2132 is an 18.5-inch capacitive touch panel in G+G
construction, and the only panel in our range with a USB interface — so it
works the moment you plug it in, with the multi-touch HID driver already in
Windows, Linux, macOS and Android. There is no I2C address to configure and
no level shifting to worry about. Ten-point touch, a 409.8 x 230.4 mm active
area matched to 1366x768, powered from 5 V. Built for kiosks, information
displays, POS and interactive screens.
Read MoreSend Inquiry

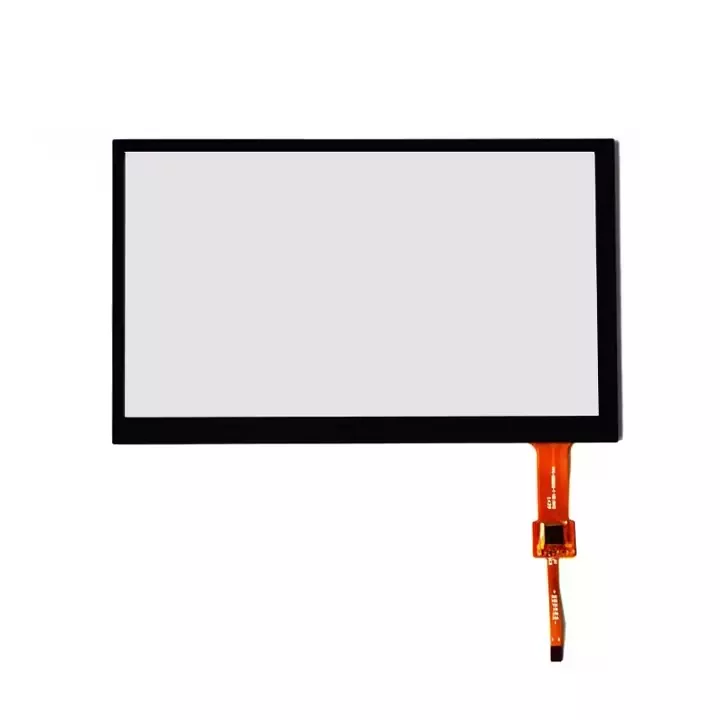

7 Inch G+G Capacitive Touch Panel 10-Point - CTP-T700GF-05
The CTP-T700GF-05 is a 7-inch capacitive touch panel in G+G construction
with ten-point touch on an eight-pin FPC — the smallest connector in our
range, and the only panel whose pin-out runs cleanly from ground and supply
through I2C, reset and interrupt without empty positions in between. It uses
an FT5446 controller and reaches ten points on a 0.7 mm cover glass, so
multi-user operation does not cost you thickness. Suited to industrial HMI,
portable terminals, collaborative interfaces and compact enclosures.
Read MoreSend Inquiry

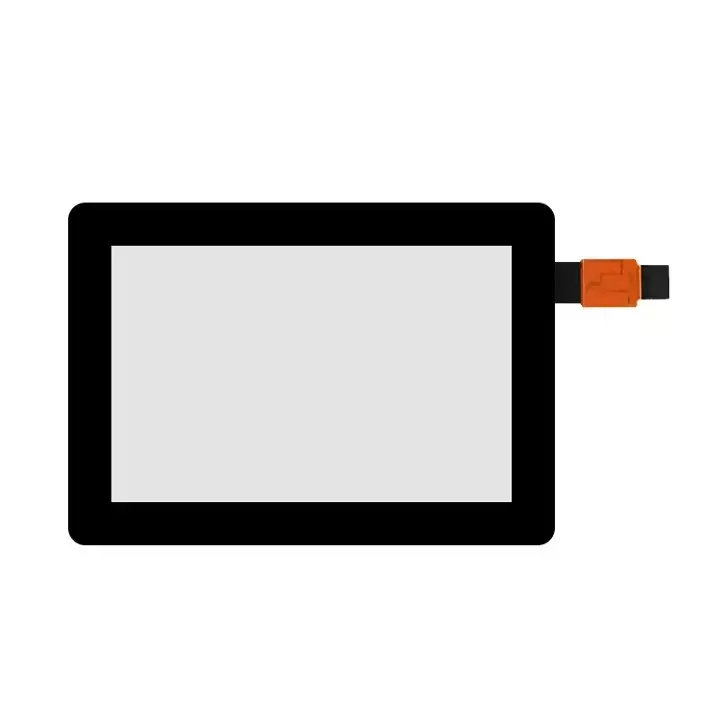

3.5 Inch G+F Capacitive Touch Panel Landscape Single-Touch - CTP-T350GF-08
The CTP-T350GF-08 is a 3.5-inch capacitive touch panel in G+F construction
— the only film-sensor panel in our range, and the only one with a six-pin
FPC. Its ITO film sensor is 0.125 mm against 0.55 mm for glass, so the stack
is thinner and lighter even behind a 1.1 mm cover glass. It reports a single
touch point, which suits button and menu interfaces rather than gestures.
Rated -20 to +70°C with ±8 kV air-discharge ESD. Built for appliance
controls, elevator panels, thermostats and simple HMI.
Read MoreSend InquiryCapacitive and Resistive Touch Options
Projected capacitive touch panels support responsive finger input and multi-touch gestures with a compatible controller. Resistive touch panels respond to pressure and can be operated with a finger, gloved hand or suitable stylus.
The right technology depends on your operating environment, user interaction requirements and device structure. Glove operation, moisture tolerance and resistance to electrical interference should be evaluated for the selected configuration.
Customization for Your Product
Touch-screen customization options include cover glass dimensions, shape, thickness, border printing and surface treatments. FPC routing, connectors and controller configuration can also be reviewed to suit your enclosure and host system.
Anti-glare, anti-reflection and anti-fingerprint treatments are available for selected materials and processes. Our team can help evaluate suitable combinations for your application.
Touch Screen and TFT LCD Integration
We can help match the touch panel to your TFT LCD module, considering the active area, viewing area, mechanical dimensions and mounting requirements.
Integration options include custom cover glass, controller configuration and optical bonding. Please provide your display datasheet and mechanical drawing so we can review compatibility and assembly requirements.
Engineering Support from Samples to Production
Our engineering team supports requirement evaluation, sample development and integration testing before mass production. Sample evaluation helps confirm mechanical fit and touch performance in the finished device.
Please tell us about any special requirements, including glove use, moisture exposure, electrical noise, cleaning methods and operating temperature.
Discuss Your Touch Screen Project
Send us your required touch size, preferred touch technology, display model, cover glass drawing and host interface. Include your application, estimated quantity and target schedule so we can review suitable options and the next steps.
