Custom Touch Screen Solutions with Cover Lens and Display Integration
Products
- View as

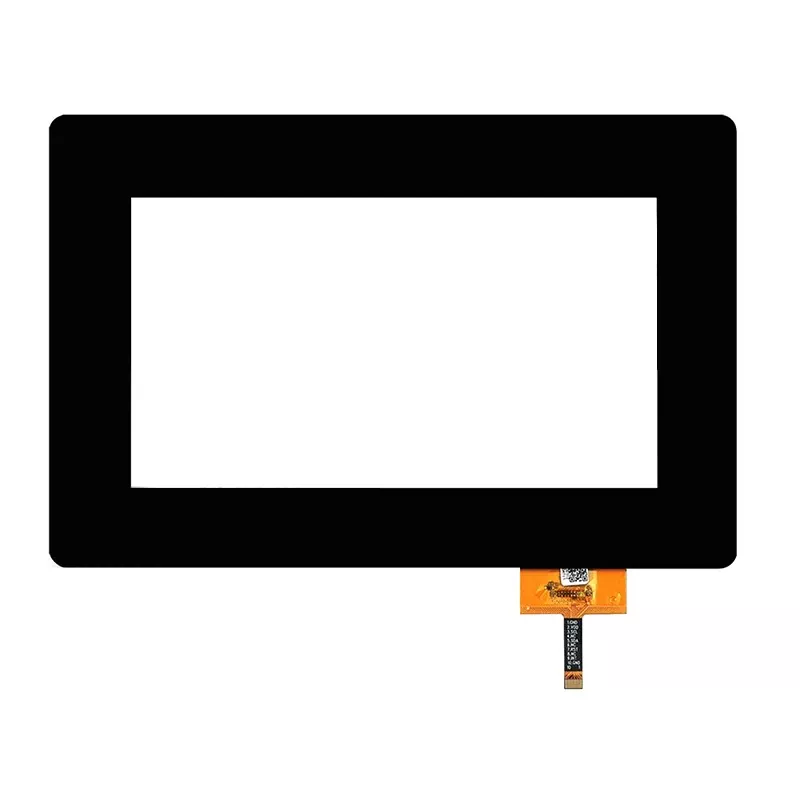

7 Inch G+G Capacitive Touch Panel with FT5426 - CTP-T700IXN-06C
The CTP-T700IXN-06C is a 7-inch capacitive touch panel in G+G construction,
and the most completely specified one we publish — outline, view area, drive
IC, interface, I2C address, touch-point count and connector are all stated,
so you can design with it straight away. It uses an FT5426 controller over
I2C, supports five touch points, and is rated ≥7H. The gasket carries
double-side tape, so it fits to a display without bonding equipment. Built
for industrial HMI, control panels, portable terminals and retrofit work.
Read MoreSend Inquiry

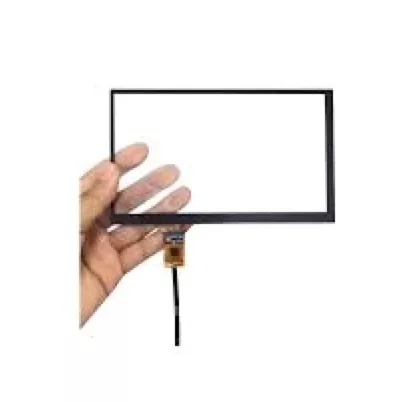

7 Inch G+G Capacitive Touch Panel for 1024x600 Displays - CTP-T700GI-11
The CTP-T700GI-11 is a 7-inch capacitive touch panel in G+G construction
with a genuinely compact 164 x 99 mm outline — only about 4.5 mm of border
on each side, so it fits the display rather than replacing the front panel.
Its view area measures 155.08 x 86.92 mm, a true 16:9 shape matched to
7-inch 1024x600 screens, with a 1.1 mm toughened cover glass. An ILI2511
controller runs five-point touch over I2C. Suited to industrial HMI, control
panels, portable terminals and displays with a fixed bezel.
Read MoreSend Inquiry

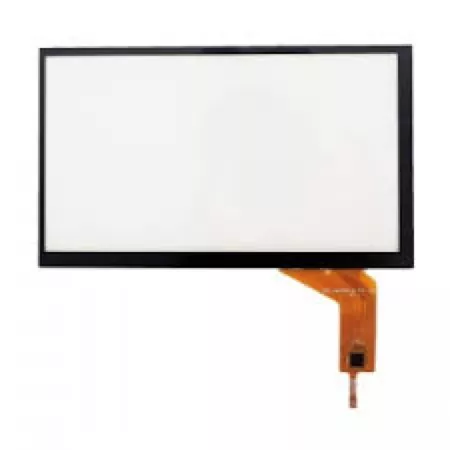

7 Inch G+G Capacitive Touch Panel with 10-Point Touch - CTP-T700GA-51
The CTP-T700GA-51 is a 7-inch capacitive touch panel in G+G construction,
and the only panel in our range with true ten-point multi-touch — the other
three 7-inch panels all stop at five. That matters for two-person operation,
multi-finger gestures and collaborative interfaces. An Atmel maXTouch 641T
controller drives a 16 by 28 channel grid, behind a 1.1 mm cover glass rated
at 6H with impact energy of at least 0.35 J. Suited to collaborative
terminals, education displays, industrial HMI and kiosks.
Read MoreSend Inquiry

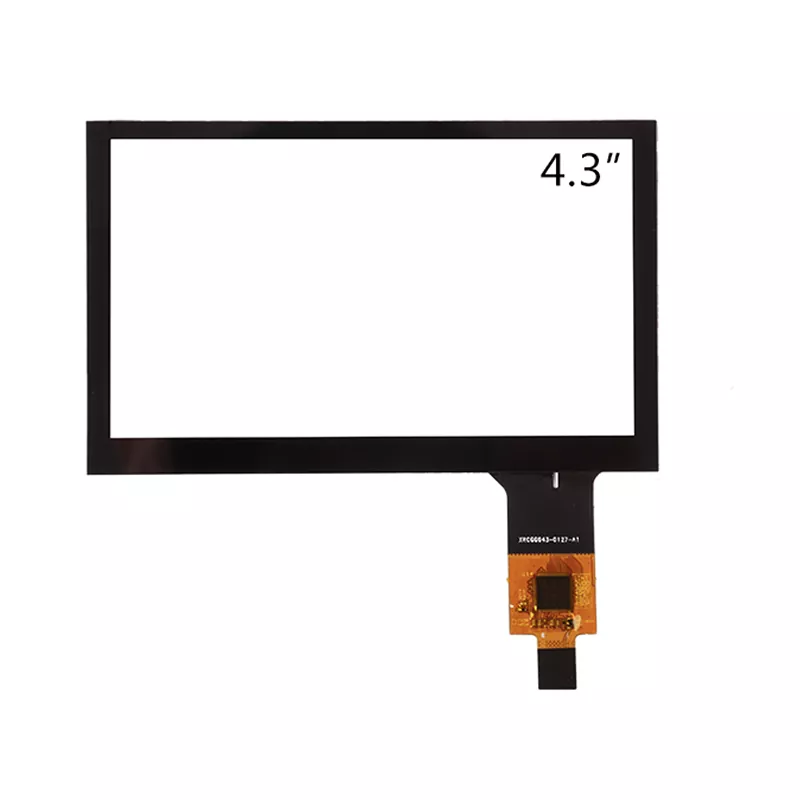

4.3 Inch G+G Capacitive Touch Panel for 480x272 Displays - CTP-T430GF-04
The CTP-T430GF-04 is a 4.3-inch capacitive touch panel in G+G construction,
sized for 480x272 displays and matched to the 95.84 x 54.66 mm view area of
our 4.3-inch TFT module. It runs from two rails — VDD at 2.8–3.3 V and IOVCC
at a fixed 3.3 V — and its 10-pin FPC puts VDD on pin 10 rather than pin 2.
Rated -10 to +60°C, it is built for indoor and commercial equipment rather
than industrial extremes. EETI EXC3146 controller, five-point touch.
Read MoreSend Inquiry

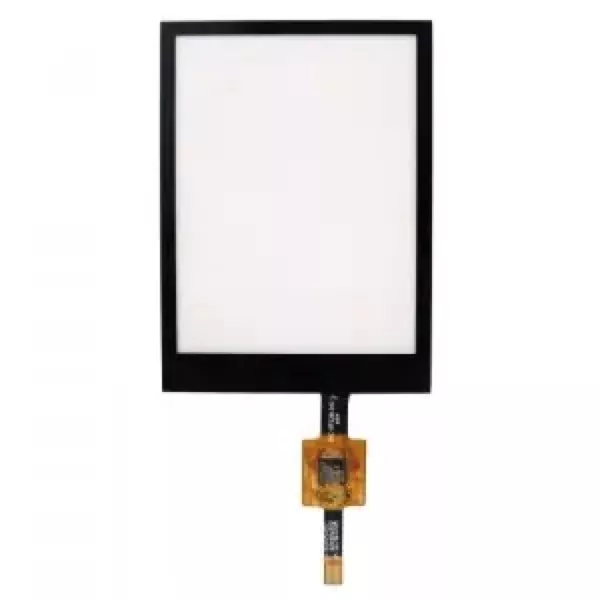

3.5 Inch G+G Capacitive Touch Panel Portrait for 320x480 Displays - CTP-T350GF-04
The CTP-T350GF-04 is a 3.5-inch capacitive touch panel in G+G construction,
and the only portrait panel in our range — a 48.96 x 73.44 mm view area in a
true 2:3 shape, matched to 320x480 displays and to our 3.5-inch portrait TFT
module. It is also the only panel whose I/O runs down to 1.8 V, so a
1.8 V-logic host can drive it without a level shifter. An FT5446 controller
handles five-point touch over I2C. Built for handheld instruments, wall
controllers, elevator panels and portable medical devices.
Read MoreSend InquiryCapacitive and Resistive Touch Options
Projected capacitive touch panels support responsive finger input and multi-touch gestures with a compatible controller. Resistive touch panels respond to pressure and can be operated with a finger, gloved hand or suitable stylus.
The right technology depends on your operating environment, user interaction requirements and device structure. Glove operation, moisture tolerance and resistance to electrical interference should be evaluated for the selected configuration.
Customization for Your Product
Touch-screen customization options include cover glass dimensions, shape, thickness, border printing and surface treatments. FPC routing, connectors and controller configuration can also be reviewed to suit your enclosure and host system.
Anti-glare, anti-reflection and anti-fingerprint treatments are available for selected materials and processes. Our team can help evaluate suitable combinations for your application.
Touch Screen and TFT LCD Integration
We can help match the touch panel to your TFT LCD module, considering the active area, viewing area, mechanical dimensions and mounting requirements.

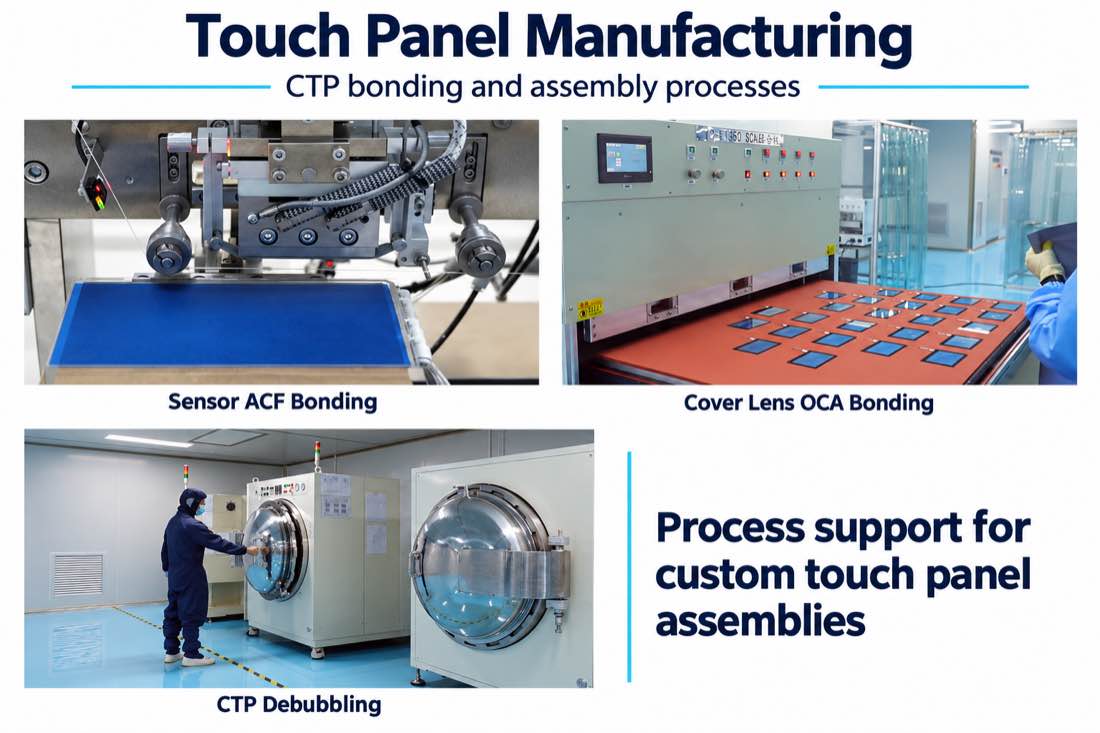

Integration options include custom cover glass, controller configuration and optical bonding. Please provide your display datasheet and mechanical drawing so we can review compatibility and assembly requirements.
Engineering Support from Samples to Production

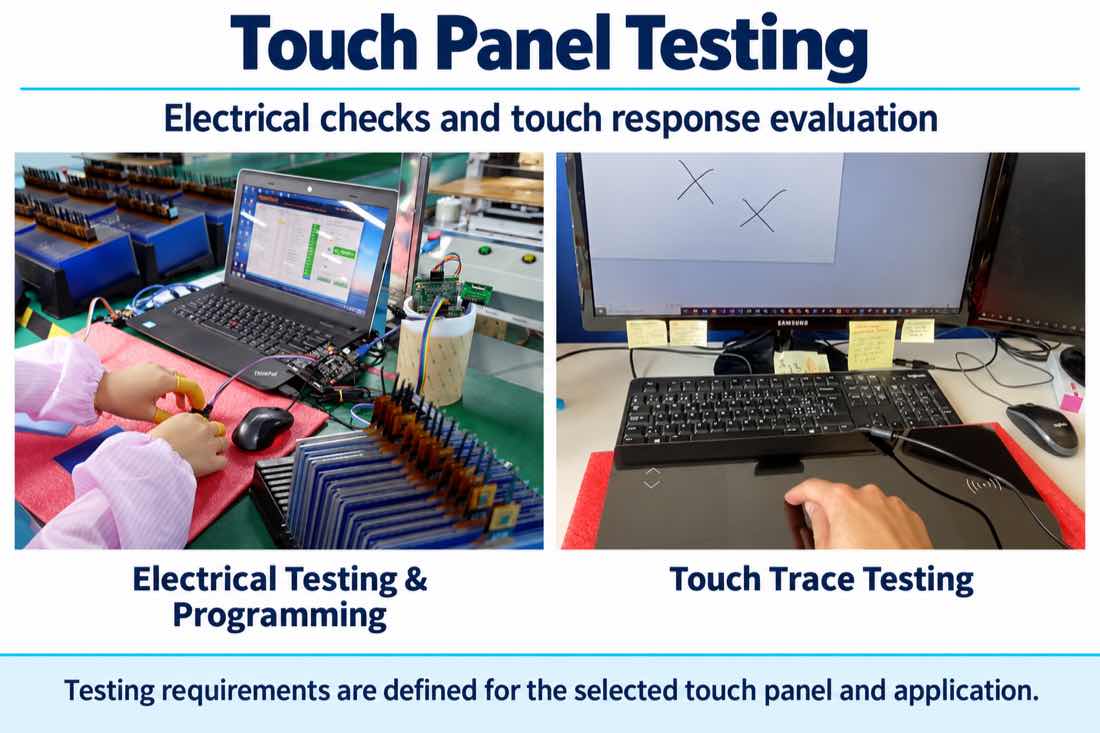

Our engineering team supports requirement evaluation, sample development and integration testing before mass production. Sample evaluation helps confirm mechanical fit and touch performance in the finished device.
Please tell us about any special requirements, including glove use, moisture exposure, electrical noise, cleaning methods and operating temperature.
Discuss Your Touch Screen Project
Send us your required touch size, preferred touch technology, display model, cover glass drawing and host interface. Include your application, estimated quantity and target schedule so we can review suitable options and the next steps.
