3.5 Inch G+F Capacitive Touch Panel Landscape Single-Touch - CTP-T350GF-08

Where It Gets Used

• Appliance and equipment control panels — buttons, menus and settings, where one finger is all that is ever used.
• Elevator and lift panels — floor selection, indicator and status screens.
• Thermostats and building controls — setpoint adjustment and menus.
• Simple industrial HMI — start, stop, mode and numeric entry.
• Keypad and numeric entry interfaces — PIN, quantity, parameter entry.
• Signature capture terminals — a stylus needs one contact.Handheld instruments — the 1.325 mm stack and low weight suit carried devices.

· Hardness ≥6H: Scratch-resistant toughened glass ensures long-term use even in harsh environments.

· Transmittance ≥85%: Crystal-clear view area (73.44mm x 48.96mm) enhances display visibility.

· 10-Point Multi-Touch: Supports intuitive multi-touch gestures for enhanced user interaction.

· I²C Interface: Simplified integration with host systems using the standard I²C protocol

· Flexible Voltage Range: Operates at 2.8–3.3V (VDD) and 2.8–3.3V (I/O), compatible with diverse electronic designs.

· ESD Protection: ±8kV (air) and ±2kV (contact) ESD immunity ensures stability in electrostatic environments.

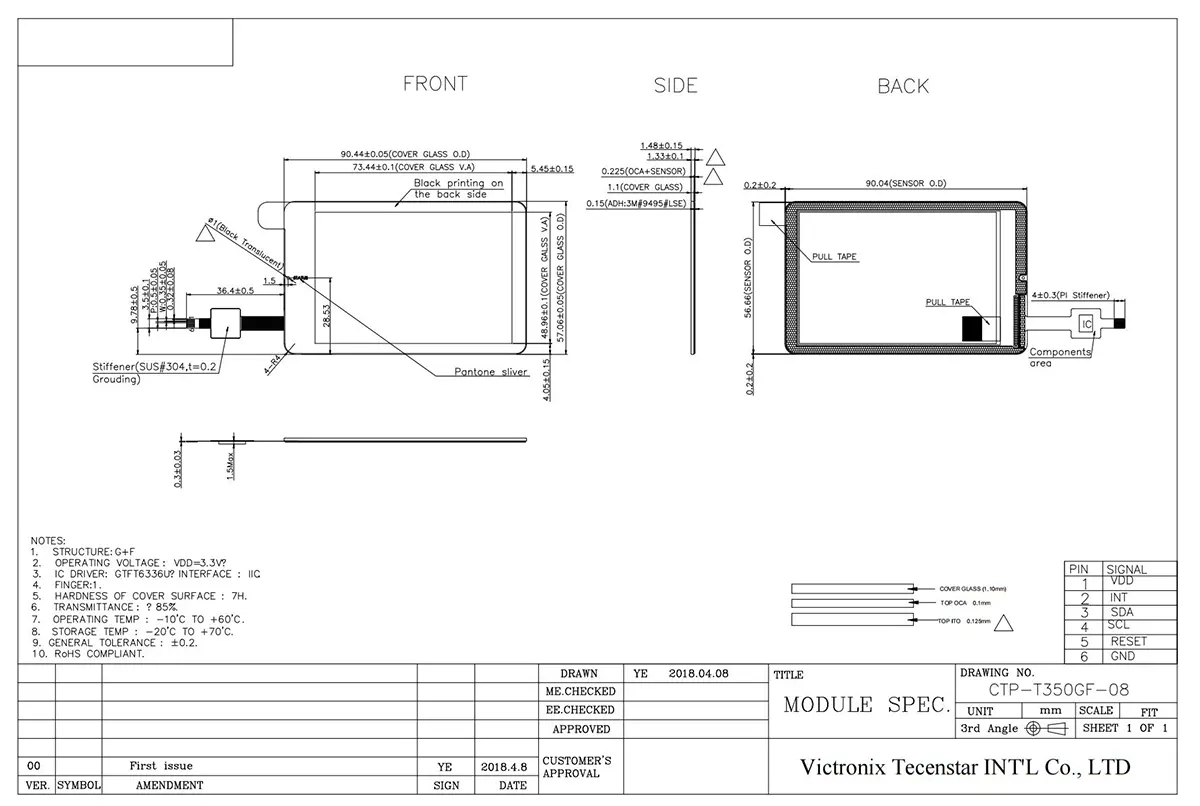

Mechanical drawing
