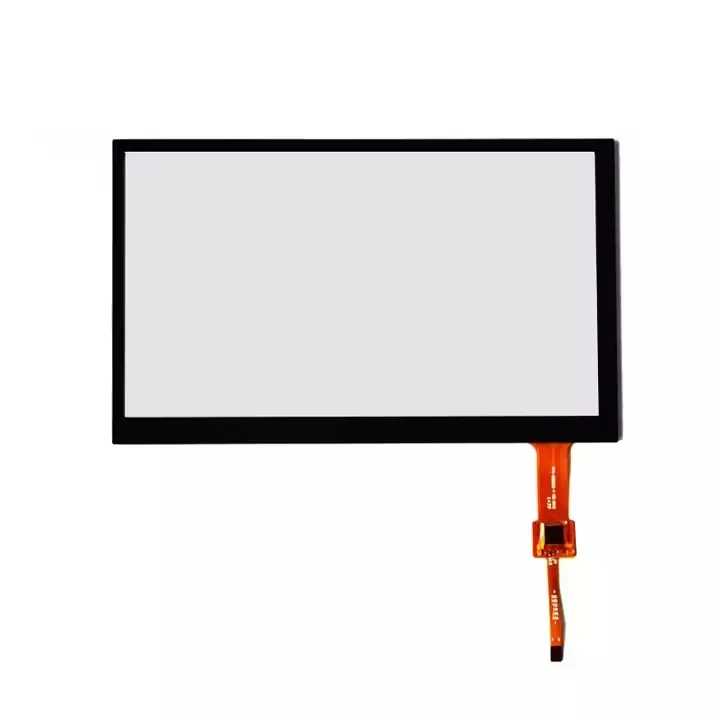

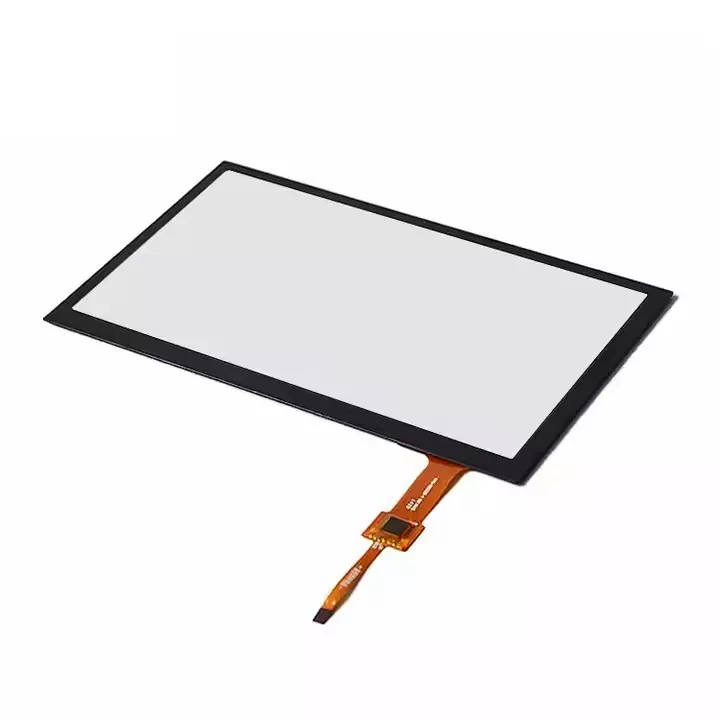

7 Inch G+G Capacitive Touch Panel 10-Point - CTP-T700GF-05

What are the competitive advantages of the Victronix 7 inch G+G Multi Touch Screen in the competitive situation of TFT Module manufacturers? At first, it features a 155.08 × 86.92mm active viewing area within a compact 164.4 × 99.5mm footprint. Secondly, it is powered by the FT5446DQS controller with an I²C interface and supports 10-point multi-touch functionality. Besides, it passes stringent reliability tests (thermal shock, humidity resistance) so that it operates across a wide temperature range (-20°C to +70°C) and withstands rigorous ESD protection (±8kV air / ±2kV contact). In addition, its hardened glass construction (0.7mm cover + 0.55mm sensor) passes 0.35J impact tests and exceeds MIL-STD-105E quality standards.

This Victronix 7 inch G+G Multi-Touch Screen is suitable for medical devices, industrial HMIs, and automotive systems. It combines low-voltage operation (2.8-3.3V) with ZIF connector compatibility and reinforced FPC flexibility. All units undergo 240-hour environmental stress testing (thermal, humidity, shock) to ensure long-term performance.

· Hardness ≥6H: Scratch-resistant toughened glass ensures long-term use even in harsh environments.

· Transmittance ≥85%: Crystal-clear view area (155.08mm x 86.92mm) enhances display visibility.

· 10-Point Multi-Touch: Supports intuitive multi-touch gestures for enhanced user interaction.

· I²C Interface: Simplified integration with host systems using the standard I²C protocol

· Flexible Voltage Range: Operates at 2.8–3.3V (VDD) and 2.8–3.3V (I/O), compatible with diverse electronic designs.

· ESD Protection: ±8kV (air) and ±2kV (contact) ESD immunity ensures stability in electrostatic environments.

General Specification

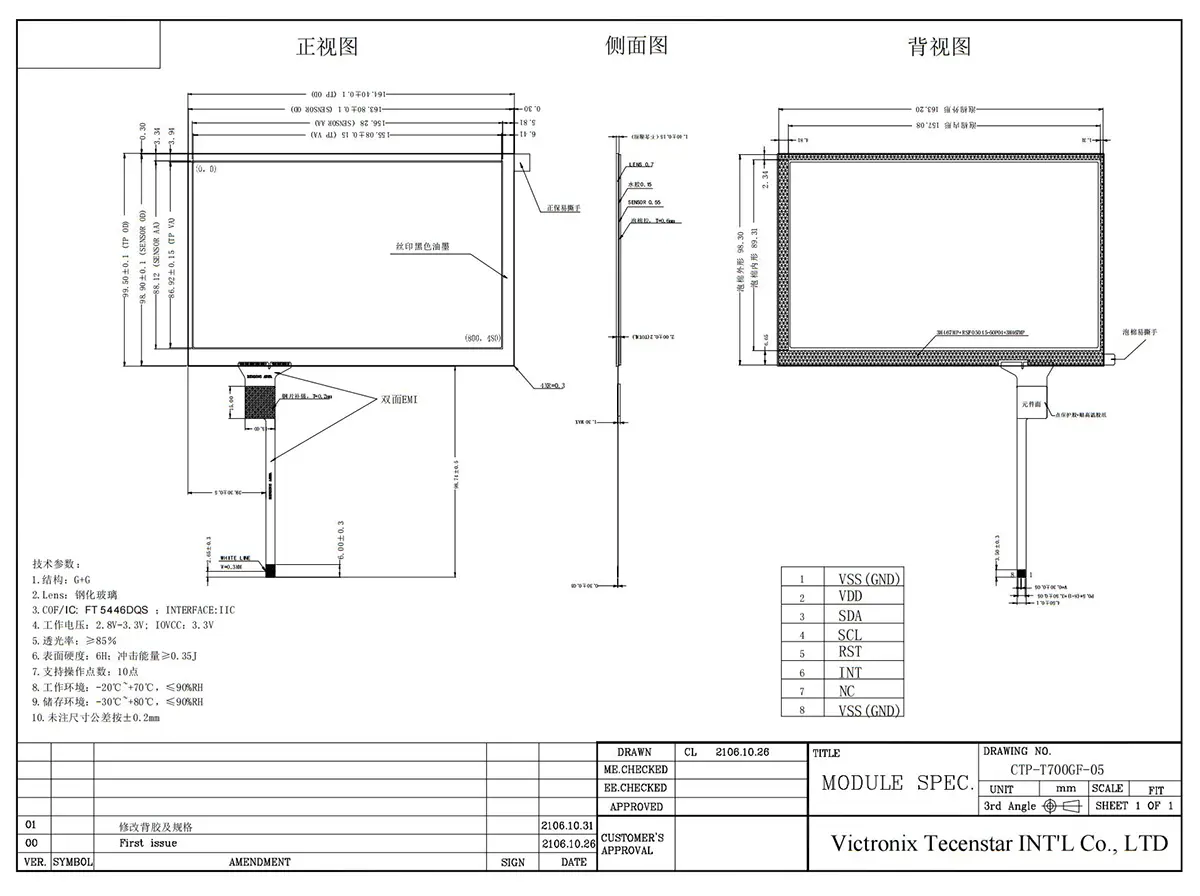

Mechanical drawing
