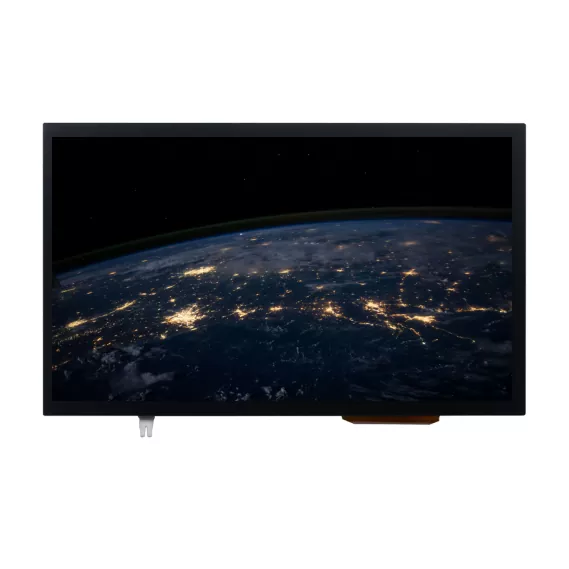

10.1 inch 1024×600 IPS TFT Module with CTP

This Victronix 10.1 inch 1024×600 IPS TFT Module with CTP is a high-performance 10.1 inch TFT LCD module engineered for demanding embedded applications. Featuring a crisp 1024 × 600 resolution and 16.7 million colors, this module delivers exceptional visual clarity with a typical brightness of 420 cd/m², 800:1 contrast ratio, and wide 80° viewing angles in all directions. As a professional manufacturer and supplier of TFT modules in China, Victronix 10.1 inch TFT Module is fully compliant with ROHS environmental standards, ensuring superior application performance. We offer a customized service to meet the needs of our customers.

Model:VXT101BAHA-01C

Send Inquiry PDF DownLoad

Product Description

TFT LCD is a type of liquid crystal display that utilizes thin-film transistor technology to enhance image quality, and it has numerous applications in everyday life. As a professional TFT module manufacturer and supplier in China, what makes the Victronix 10.1 inch 1024×600 IPS TFT Module with CTP different from other manufacturers? Firstly, it offers a typical brightness of 420 cd/m², wide 80° viewing angles in all directions, and a contrast ratio of 800:1, ensuring excellent readability from various angles. Secondly, it integrates a backlight unit utilizing 39 white LEDs with a typical lifetime of 30,000 to 50,000 hours (to 50% initial brightness), ensuring clear visibility in all lighting conditions. Besides, it supports a 6/8 BIT LVDS interface with HX8282A11+HX8696A controller and a robust 5-point capacitive touch panel with GT928 CTP controller. In addition, it passes rigorous environmental testing, including thermal shock (-30°C ↔ +80°C cycles), humidity storage (60°C/90% RH), and mechanical vibration, ensuring it can operate seamlessly across an extended temperature range (-20°C to +70°C).

This 10.1 inch TFT display by Victronix is commonly used in battery-powered devices, digital signage, Consumer electronics, control panels, manufacturing equipment displays, medical devices, and so on.

General Specifications

Item	Contents	Unit	Note
LCD Type	TFT	-
Display color	16.7M
Viewing Direction	ALL	O'Clock
Operating temperature	-20~+70	℃
Storage temperature	-30~+80	℃
Module size	10.1	inch
Active Area(W×H)	222.72x125.28	mm
Number of Dots	1024x600	dots
Controller	HX8282A11+HX8696A	-
Power Supply Voltage	3.3	V

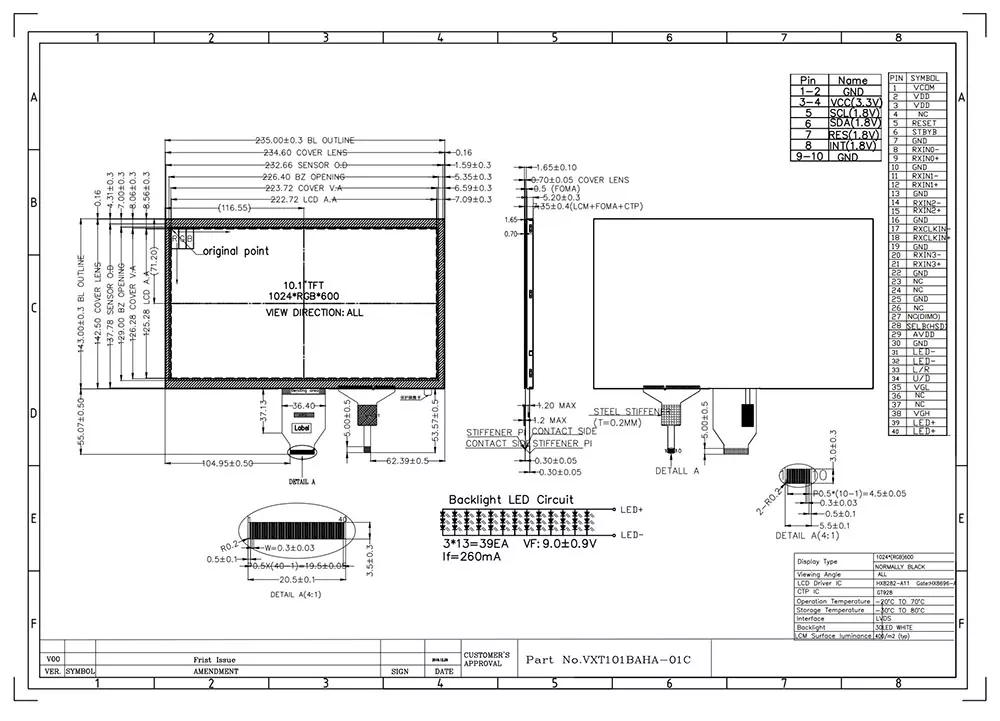

Outline Dimensions	235.00x143.00x7.35	mm
Backlight	3x13-LEDs(white)	pcs
Weight	---	g
Interface	6/8 BIT LVDS	-

CTP Parameter

Item	Contents	Unit	Note
Outline Size	234.6x142.5	mm
Cover View Area	223.72(H)x126.28V)	mm
CTP Resolution	1024x600	dots
Interface Mode	IIC	-
Touch Mode	5 Human fingers multi-touch	-
Surface hardness	>=6H	-
Transparency	>=85%	-
Accuracy	Entre +/-1.5mm,Edge +/-2.5mm	mm
CTP Controller	GT928	-
Power Supply Voltage	3.3	V
