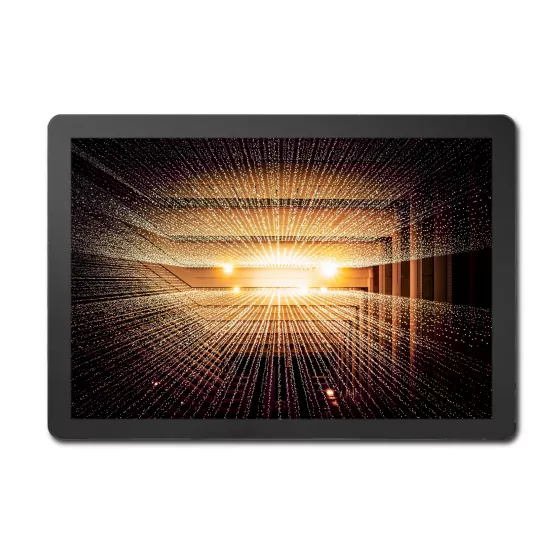

10.1 inch 1024×600 LVDS TFT Module with CTP

Victronix is a professional TFT module manufacturer and supplier based in China. With 18 years of experience in this field, we have developed a variety of models. In addition to our standard products, we also offer customized services to meet our customers' specific needs. This 10.1 inch 1024×600 LVDS TFT Module with CTP is a high-quality 10.1 inch TFT display module engineered for industrial, medical, and embedded applications. Combining high optical performance, capacitive touch functionality, and extended reliability, it delivers exceptional clarity and durability in extreme operating conditions.

Model:VXT101BAHA-02C

Send Inquiry PDF DownLoad

Product Description

In the age of intelligence, the TFT module enables us to present the required data visually. The quality of the TFT module has a critical impact on its application. What are the advantages of the Victronix 10.1 inch 1024×600 LVDS TFT Module with CTP? At first, its 420 cd/m² brightness, 800:1 contrast ratio, an 80-degree viewing angle in all directions, and 75% uniformity ensure vivid imagery. Secondly, it supports a 6/8-bit LVDS interface with the HX8282A11+HX8696A controller and a robust 5-point capacitive touch panel with the ILI2511 CTP controller. Additionally, it features a 3×13-LED white backlight with a lifespan of 30,000 to 50,000 hours, ensuring its long-term usability in various industrial applications. In addition, it complies with RoHS standards and successfully passes rigorous reliability tests, including thermal shock, humidity, and ESD protection up to 8kV air and 4kV contact. This product operates efficiently in extreme temperatures ranging from -20°C to +70°C and can withstand severe storage conditions from -30°C to +80°C.

This 10.1 inch TFT module from Victronix is designed for Industrial HMIs, medical devices, portable diagnostic equipment, outdoor kiosks, transportation systems, and automation control panels.

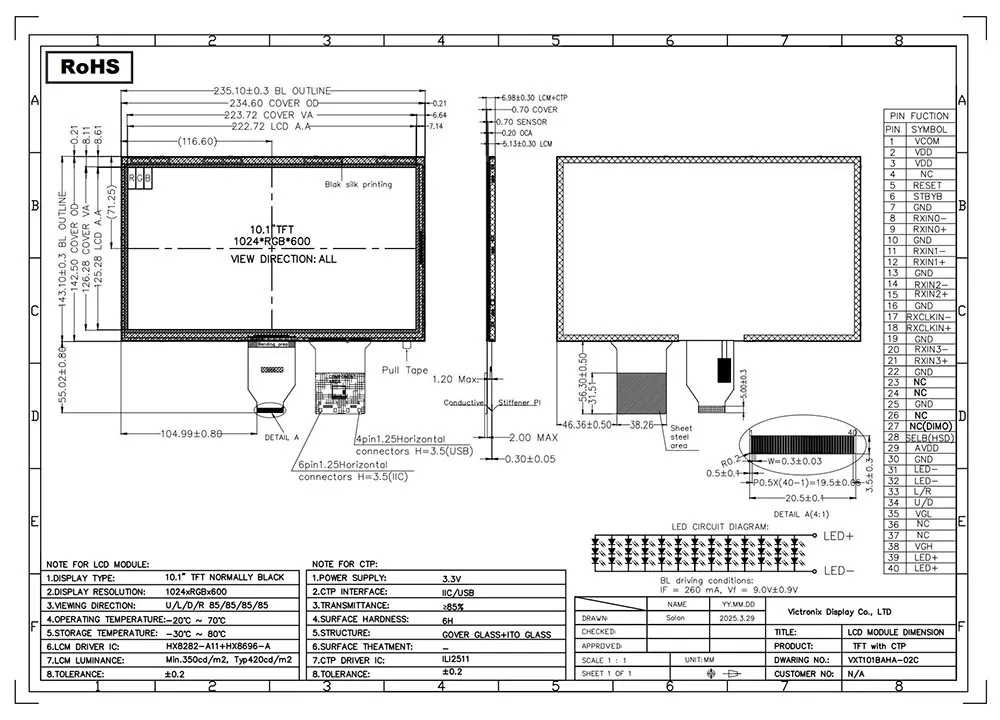

General Specifications

Item	Contents	Unit	Note
LCD Type	TFT	-
Display color	16.7M
Viewing Direction	ALL	O’Clock
Operating temperature	-20~+70	℃
Storage temperature	-30~+80	℃
Module size	10.1	inch
Active Area(W×H)	222.72x125.28	mm
Number of Dots	1024x600	dots
Controller	HX8282A11+HX8696A	-
Power Supply Voltage	3.3	V
Outline Dimensions	235.00x143.00x6.98	mm
Backlight	3x13-LEDs (white)	pcs
Weight	---	g
Interface	6/8 BIT LVDS	-

CTP Parameter

Item	Contents	Unit	Note
Outline Size	235.10x143.10	mm
Cover View Area	223.72(H)x126.28V)	mm
CTP Resolution	1024x600	dots
Interface Mode	IIC/USB	-
Touch Mode	5 Human fingers multi-touch	-
Surfacehardness	>=6H	-
Transparency	>=85%	-
Accuracy	Entre +/-1.5mm,Edge +/-2.5mm	mm
CTP Controller	ILI2511	-
Power Supply Voltage	3.3(IIC) /5.0(USB)	V
