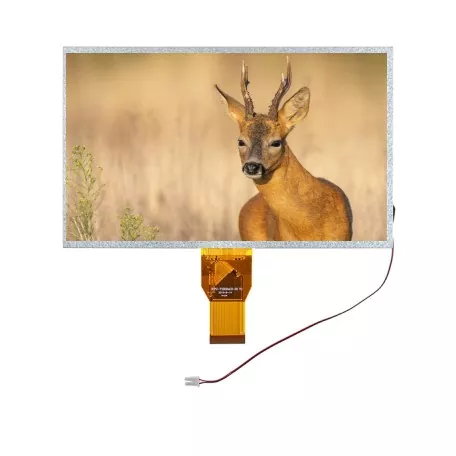

10.1 inch 1024×600 WXGA LVDS TFT Module

TFT LCD is a type of liquid crystal display that utilizes thin-film transistor technology to enhance image quality, and it has numerous applications in everyday life. As a professional TFT module manufacturer and supplier in China, what makes the Victronix 10.1 inch 1024×600 WXGA LVDS TFT Module different from other manufacturers? Firstly, it offers a typical brightness of 350 cd/m², 60°(3, 9, 12 o'clock), 45°(6 o'clock) wide viewing angles, and a contrast ratio of 500:1, ensuring excellent readability from various angles. Secondly, it integrates a backlight unit utilizing 39 white LEDs with a typical lifetime of 30,000 to 50,000 hours (to 50% initial brightness), ensuring clear visibility in all lighting conditions. Besides, it supports a LVDS interface with HX8282A14 + HX8696 Driver IC. In addition, it passes rigorous environmental testing, including thermal shock (-30°C ↔ +80°C cycles), humidity storage (60°C/90% RH), and mechanical vibration, ensuring it can operate seamlessly across an extended temperature range (0°C to +50°C).

This 10.1 inch TFT display by Victronix is commonly used in industrial HMI panels, portable medical devices, point-of-sale terminals, embedded systems, and transportation displays where clear visibility, color accuracy, and robust performance are essential.

General Specifications

VXT101BAH-02 is a TFT-LCD module. It is composed of a TFT-LCD panel, driver IC, FPC, a back light unit. The 10.1 display area contains 1024 x 600 pixels and can display up to 16.7M colors. This product accords with RoHS environmental criterion

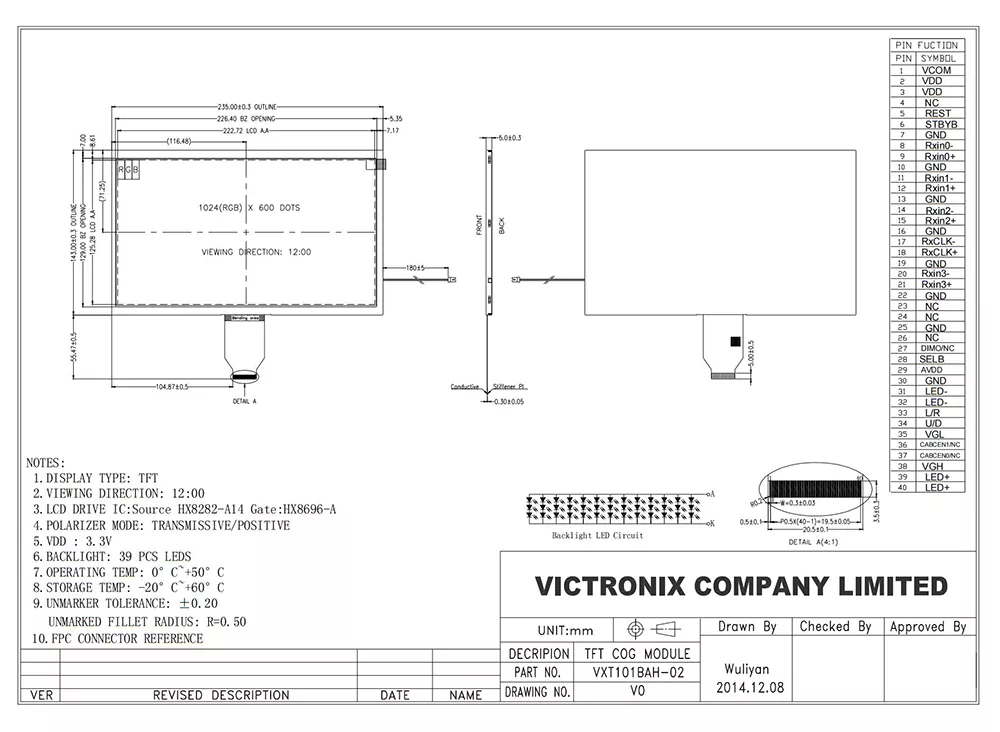

Outline Drawing
